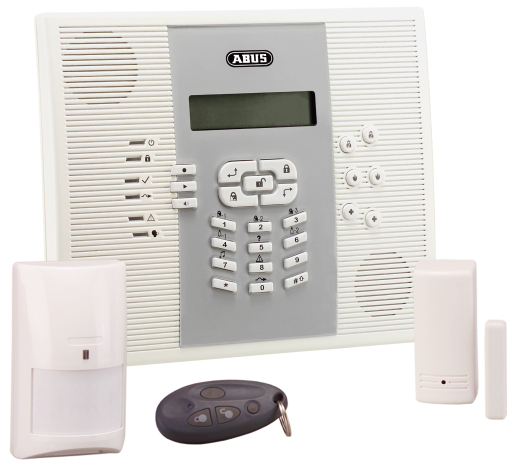

Privest Wireless Alarm Base Set, EN (Art. no. FU9001)

Special product features:

  • Low-priced starter package
  • Wide range
  • Easy to expand
  • Simple to install
  • Includes installation video
  • Compact size

The Privest wireless alarm system combines elegant timeless design with user-friendly operation. The wireless alarm base set includes central components for effective protection. If required, it can be extended at any time. The wireless alarm base set provides all advantages of the Privest. With its 33 zones (32 wireless and 1 wired) and its four programmable outputs, the alarm control panel is the heart of the good feeling of security. The innovative AM radio technology operates on a special frequency within the 868 MHz band that is reserved for wireless alarm systems. Programming and operation are easy thanks to the speech-supported menu navigation (English). If an event occurs, residents are warned of dangers such as fire, water, and burglary or they are alarmed in case of an emergency via the integrated Piezo signalling device. In addition, an emergency call center or a mobile telephone can be contacted via an integrated speech dialling unit (AWAG). This makes the Privest wireless alarm system the perfect entry-level model among professional alarm systems.

Technical data:

Art. no.: FU9001
Dimensions: (WxHxD) 240x190x48 mm
Number of control panels: 2
Number of users: 34
Number of remote controls: 8
Display: Two-line alphanumerical display
Battery type: 6 x 1,2 V AA Alkali Ni Mh
Operation: 8
Width: 240 mm
Event log: 256
Extensible (hybrid): Yes
Housing material: ABS
Height: 190 mm
Integrated siren: Yes (90 dB @ 1m)
Length: 48 mm
Max. number of control panels: 2
Max. operating temperature: 55 °C
Max. battery charging time: 24 h
Max. receiving range (outdoors): 100 m
Max. receiving range (building): 30 m
Max. sending range (outdoors): 100 m
Max. sending range (building): 30 m
Menu guidance: Voice-activated
Min. operating temperature: 0 °C
Modulation: AM FM / AM
Power supply unit: External
Backup power supply: Yes
Configuration: Software programming
Tamper monitoring: Yes
Security level: 2
AC voltage supply: 230 V
Power consumption: 113 mA
Environmental class: II

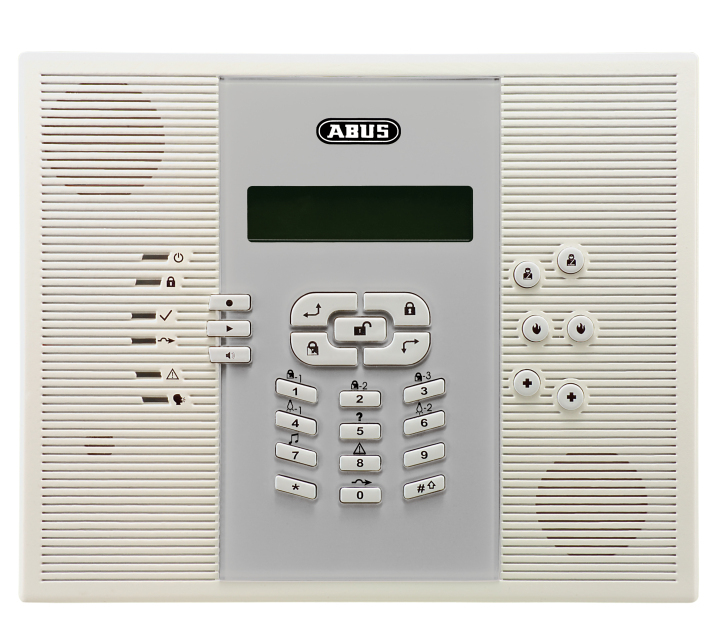

Privest Wireless Alarm Control Panel, EN - FU9011


Zum Produkt
Technical data
Art. no.: FU9011
Dimensions: (WxHxD) 240x190x48 mm
Connections: Analog (PSTN), connection for power supply, programming access, push terminal, battery compartment
Number of control panels: 2
Number of users: 34
Number of wired zones: 1
Number of remote controls: 8
Number of wireless zones: 32
Display: Two-line alphanumerical display
Outputs: 2 relay outputs, 2 transistor outputs, 1 signaling device output
Battery type: 6 x 1,2 V AA Alkali Ni Mh
Operation: Via wireless remote control, local, wireless key switch, and wireless keypad
Width: 240 mm
Event log: 256
Extensible (hybrid): Yes
Remote configuration: Yes
Wireless alarm bandwidth: Broadband
Radio frequency: 868,65 MHz
Transmission power: 10
Housing material: ABS
Height: 190 mm
Integrated siren: Yes (90 dB @ 1m)
Communication/alarming: Integrated analog dialer
Length: 48 mm
Max. number of control panels: 2
Max. operating temperature: 55 °C
Max. battery charging time: 24 h
Max. humidity: 90 %
Max. run time on backup power: 12 h
Max. receiving range (outdoors): 100 m
Max. receiving range (building): 30 m
Max. sending range (outdoors): 100 m
Max. sending range (building): 30 m
Menu guidance: Voice-operated
Min. operating temperature: 0 °C
Modulation: AM FM / AM
Installation location: With surrounding conditions optimally adjusted for wireless performance
Net weight: 0.97 kg
Power supply unit: External
Backup power supply: Yes
Configuration: Software programming
Tamper monitoring: Yes
Switching outputs: 5
Security level: 2
Voltage monitoring: Yes
AC voltage supply: 9 V
Language of instructions: English
OSD language: English
Packaging language: English
Power consumption: 113 mA
Partitions/surveillance partitions: 3
Environmental class: II
Encryption: Yes

Privest Wireless Magnetic Contact, white - FU9025W


Zum Produkt
Technical data
Art. no.: FU9025W
Dimensions: (WxHxD) 35x81x32 mm
Connections: Clamping terminal
Battery type: 3V CR123 lithium battery
Width: 35 mm
Type of detection: Magnetic field measurement
Radio frequency: 868,65 MHz
Transmission power: 10
Housing material: ABS
Height: 81 mm
Length: 32 mm
Max. battery life: 2 year(s)
Max. operating temperature: 50 °C
Max. sending range (outdoors): 100 m
Max. sending range (building): 30 m
Min. operating temperature: 0 °C
Modulation: AM FM / AM
Installation location: Windows, doors
Net weight: 0.06 kg
Tamper monitoring: Yes
IP protection class: 31
Sensor type: Reed contact
Security level: 2
DC voltage supply: 3 V
Status display: Yes
Power consumption: 0.06 mA
Environmental class: II

Privest Wireless Remote Control - FU9031


Zum Produkt
Technical data
Art. no.: FU9031
Dimensions: (WxHxD) 35x70x10 mm
Battery type: CR2430 3V lithium battery
Width: 35 mm
Radio frequency: 868,65 MHz
Transmission power: 10
Housing material: ABS
Height: 70 mm
Length: 10 mm
Power consumption: 0
Max. battery life: 3 year(s)
Max. operating temperature: 50 °C
Max. sending range (outdoors): 150 m
Max. sending range (building): 30 m
Min. operating temperature: 0 °C
Modulation: AM FM / AM
Net weight: 0.03 kg
IP protection class: 44
Security level: 2
Voltage monitoring: Yes
DC voltage supply: 3 V
Power consumption: 0,001 mA
Environmental class: II

Privest Wireless Motion Detector - FU9015


Zum Produkt
Technical data
Art. no.: FU9015
Dimensions: (WxHxD) 60x106x47 mm
Width: 60 mm
Type of detection: Heat detection
Adjustable sensitivity: Yes
Detection range of detector (m): 15 m
Radio frequency: 868,65 MHz
Transmission power: 10
Housing material: ABS
Height: 106 mm
Length: 47 mm
Max. battery life: 2 year(s)
Max. sending range (outdoors): 300 m
Modulation: AM FM / AM
Net weight: 0.11 kg
Tamper monitoring: Yes
IP protection class: 31
Sensor type: PIR
Voltage monitoring: Yes
DC voltage supply: 3 V
Status display: Yes
Power consumption: 0.01 mA
Pet-proof: Yes
Environmental class: II
Creep zone: Yes
White light filter: Yes

Scope of delivery:

  • 1x Privest basic wireless set
  • 1x Power supply
  • 1x Backup battery pack
  • 1x Installation DVD
  • 1x Installation manual
  • 1x Wireless motion detector incl. batteries
  • 1x Wireless opening detector incl. batteries
  • 1x Wireless remote control

Products included:

Software:

  • Installation Software

Required accessories:

USB cable for Privest
FU9099
