Highlights

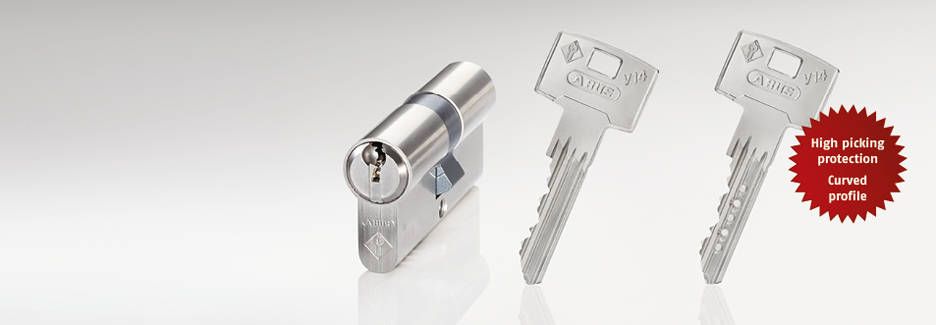

The patented profile V14 guarantees a high protection against illegal key copies as well as against manipulation of the cylinder (e.g. picking). Due to the bent shape the key gets a remarkably higher stability.

In case of very high security demands according to insurance standards the V14 cylinders can be delivered with VdS-approved equipment class B/VdS ***.

The 3 security levels of V14 provide a high flexibility regarding the realization of locking systems. With the possibility of later extension of locking systems V14 is a system with a guaranteed future. Furthermore, the integration of electronic components in mechanic locking systems is possible.

Security level 1 - V14

• High security demands
• 5 or 6 locking elements in one row
• Combination with system XV14 or KV14

Security level 2 - XV14

• Higher security demands
• 5 or 6 locking elements and up to 4 coded pins on two locking rows
• Combination with system V14

Security level 3 - KV14

• Highest security demands
• 5 or 6 locking element and up to 4 coded pins on two locking rows
• Combination with system V14

VdS- approved cylinder

• Cylinder production according to insurance demands
• Special pinning of cylinder core and housing for highest protection against drilling, picking and bumping
• Labelling with VdS logo and recognition number
• Only for 6-pin double-, knob- and half cylinders

The coded profile rib with blocking ball

The special coded profile rib provides the system V14 with a very high protection against key copying. In case of a wrong coded or missing profile rib the blocking ball prevents the opening of the cylinder.

Combination with electronics

Quite simple combination with electronic systems due to the new developed Combi Cap or the Skuni Cap. The key can be ordered ex works as mechanical-electronically combined key. For a later retrofitting of the electronic elements the Combi Cap can easily be put on the key. Moreover, external systems like alarm systems or time registration and pay terminals can be served from a hybrid key.

Cylinders with Euro profile

 For the protection of life and property, ABUS provides high-quality cylinders for corresponding mortise locks according to DIN norms.

Circular cylinders

 The circular cylinders are applicable for indoor as well as outdoor use. The are suitable for relevant additional door locks, deposit boxes, mailboxes, sliding gates, switch devices and much more.

Padlocks

These padlocks are distinguished for the integration into ABUS locking systems. They are available in many variations and can even be used under difficult conditions.

Special range

The special range includes many types of cylinders that are suitable for the special needs of different countries (such as Austria, Italy, Netherlands, Belgium and France). They are distinguished for the use within ABUS locking systems.

Accessories for locking systems

The range of accessories includes many products for the optimal equipment of your locking systems, such as key caps with / without a transponder, rain protection rosettes, construction keys and key safes.
