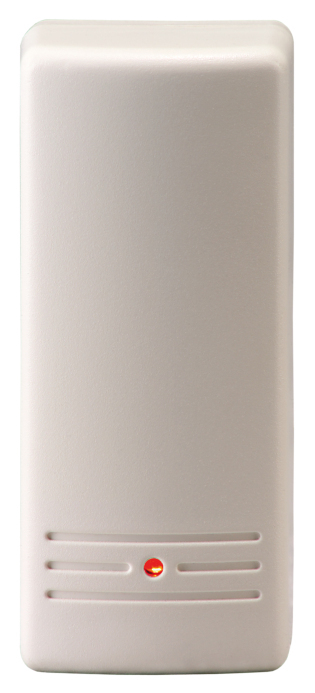

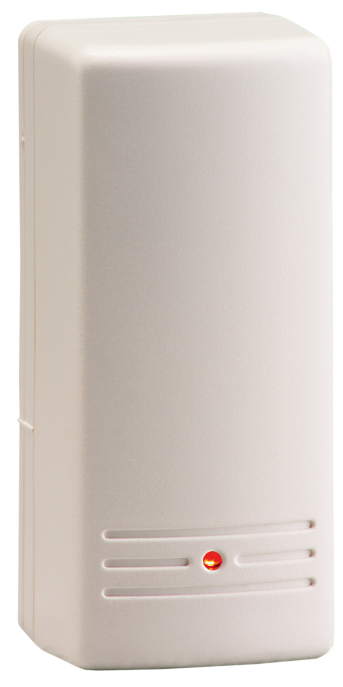

Privest Wireless Vibration Detector (Art. no. FU9050)

Special product features:

  • Sensitive shock detector
  • Suitable for windows, doors, or walls
  • Reacts to mechanical vibrations
  • Also suitable for objects that are not supposed to be moved

The Privest Wireless Vibration Detector is an extension module of the Privest wireless alarm center. It reacts to vibrations that typically occur during burglary attempts. Vibrations are detected and signalled to the wireless alarm center. The wireless vibration sensor detects vibrations of the surface to which it is mounted. The ideal place of installation for the Privest wireless seismic detector sensor is on objects, which should not be moved (safes, valuable objects) and should not be broken through (wooden doors, glass walls, plastered walls). You can select different sensitivity levels for the wireless seismic sensor using a jumper and a potentiometer.

Technical data:

Art. no.: FU9050
Dimensions: (WxHxD) 30x118x27 mm
Battery type: 3V CR123 lithium battery
Width: 30 mm
Type of detection: Vibration detection
Adjustable sensitivity: Yes
Detection range of detector (m): 1.5 (concrete), 2.5 (brick), 3 (steel), 3.5 (glass), 3.5 (wood), 4 (plywood) m
Radio frequency: 868,65 MHz
Transmission power: 10
Housing material: ABS
Height: 118 mm
Length: 27 mm
Max. battery life: 2 year(s)
Max. operating temperature: 50 °C
Max. sending range (outdoors): 300 m
Min. operating temperature: 0 °C
Modulation: AM FM / AM
Installation location: Surfaces to be monitored for shock
Net weight: 0.07 kg
Tamper monitoring: Yes
IP protection class: 31
Sensor type: Piezo sensor
Security level: 2
Voltage monitoring: Yes
DC voltage supply: 3 V
Status display: Yes
Power consumption: 0.01 mA
Environmental class: II

Scope of delivery:

  • 1x Wireless shock detector
  • 1x Battery (FU2998)
