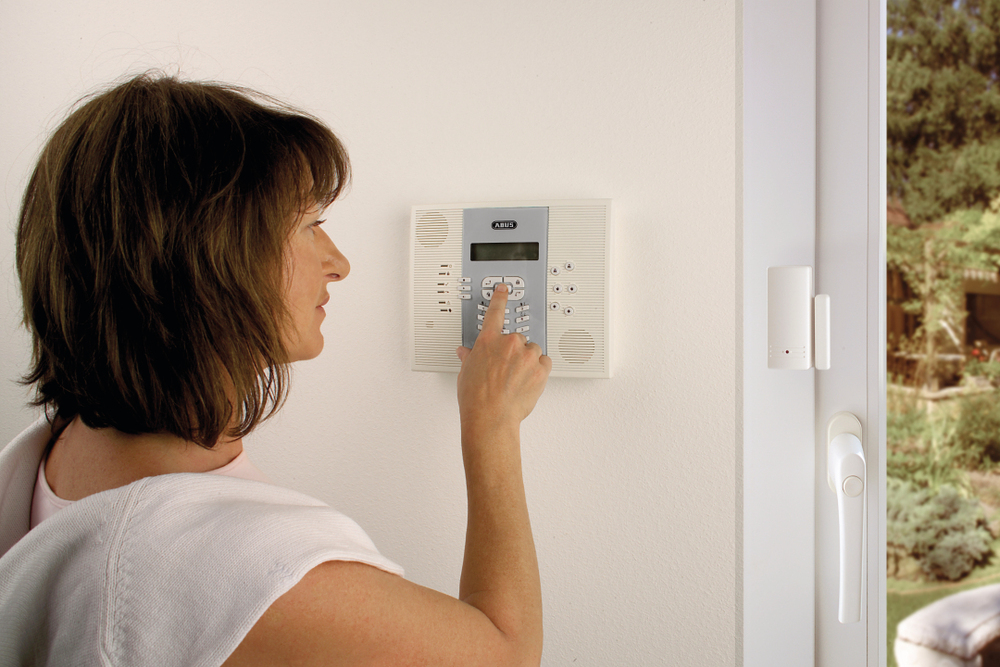

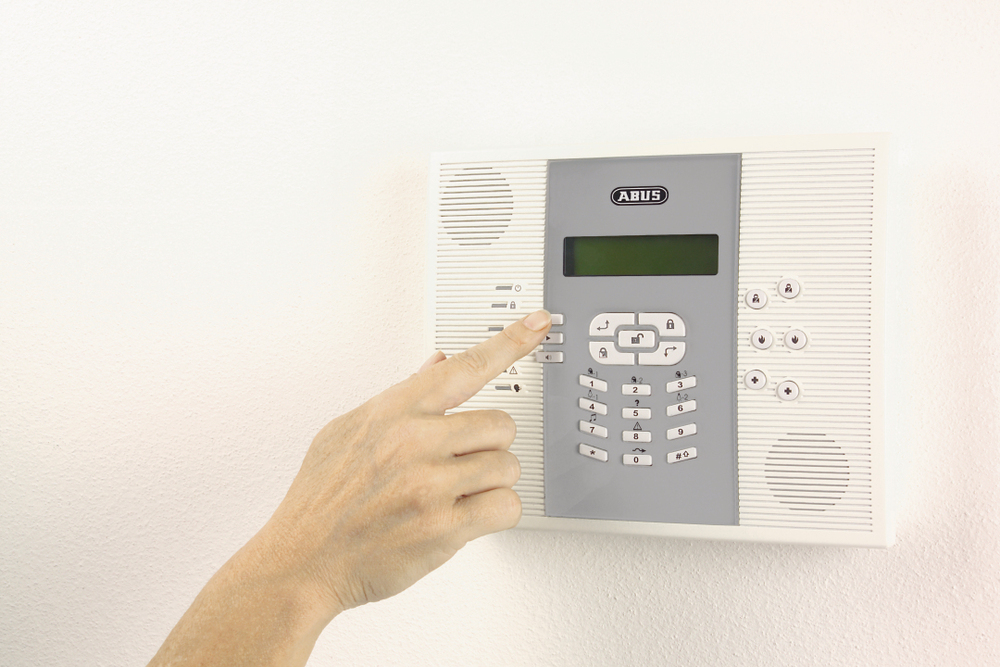

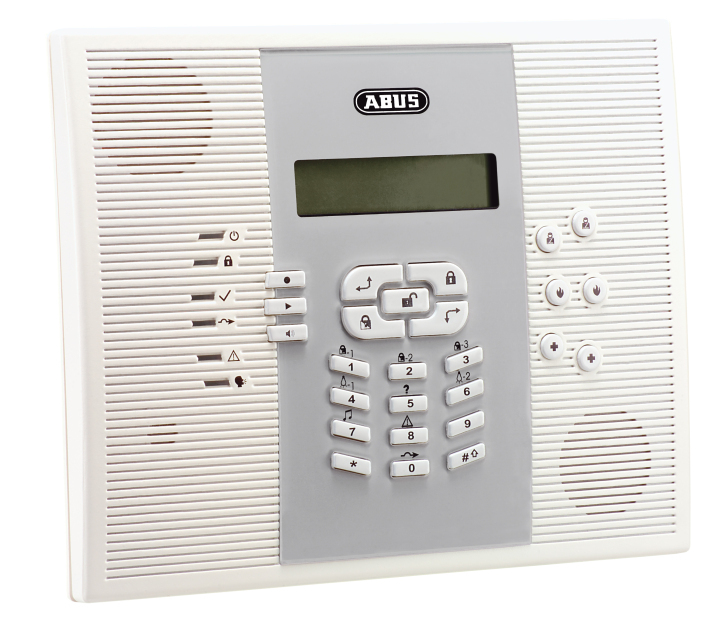

Privest Wireless Alarm Control Panel, EN front view right Privest Wireless Alarm Control Panel, EN front view Privest Wireless Alarm Control Panel, EN Example of application Privest Wireless Alarm Control Panel, EN Example of application
||||

Privest Wireless Alarm Control Panel, EN (Art. no. FU9011)

Special product features:

  • Wide range
  • Easy to expand
  • Simple to install
  • Includes installation video
  • Compact size

The Privest wireless alarm system combines elegant timeless design with user-friendly operation. With its 33 zones (32 wireless and 1 wired) and its four programmable outputs, the alarm control panel is the heart of the good feeling of security. The innovative AM radio technology operates on a special frequency within the 868 MHz band that is reserved for wireless alarm systems. Programming and operation are easy thanks to the speech-supported menu navigation (English). If an event occurs, residents are warned of dangers such as fire, water, and burglaries or they are alarmed in case of an emergency via the integrated Piezo signalling device. In addition, an emergency call center or a mobile telephone can be contacted via an integrated speech dialling unit (AWAG). This makes the Privest wireless alarm system the perfect entry-level model among professional alarm systems.

Technical data:

Art. no.: FU9011
Dimensions: (WxHxD) 240x190x48 mm
Connections: Analog (PSTN), connection for power supply, programming access, push terminal, battery compartment
Number of control panels: 2
Number of users: 34
Number of wired zones: 1
Number of remote controls: 8
Number of wireless zones: 32
Display: Two-line alphanumerical display
Outputs: 2 relay outputs, 2 transistor outputs, 1 signaling device output
Battery type: 6 x 1,2 V AA Alkali Ni Mh
Operation: Via wireless remote control, local, wireless key switch, and wireless keypad
Width: 240 mm
Event log: 256
Extensible (hybrid): Yes
Remote configuration: Yes
Wireless alarm bandwidth: Broadband
Radio frequency: 868,65 MHz
Transmission power: 10
Housing material: ABS
Height: 190 mm
Integrated siren: Yes (90 dB @ 1m)
Communication/alarming: Integrated analog dialer
Length: 48 mm
Max. number of control panels: 2
Max. operating temperature: 55 °C
Max. battery charging time: 24 h
Max. humidity: 90 %
Max. run time on backup power: 12 h
Max. receiving range (outdoors): 100 m
Max. receiving range (building): 30 m
Max. sending range (outdoors): 100 m
Max. sending range (building): 30 m
Menu guidance: Voice-operated
Min. operating temperature: 0 °C
Modulation: AM FM / AM
Installation location: With surrounding conditions optimally adjusted for wireless performance
Net weight: 0.97 kg
Power supply unit: External
Backup power supply: Yes
Configuration: Software programming
Tamper monitoring: Yes
Switching outputs: 5
Security level: 2
Voltage monitoring: Yes
AC voltage supply: 9 V
Language of instructions: English
OSD language: English
Packaging language: English
Power consumption: 113 mA
Partitions/surveillance partitions: 3
Environmental class: II
Encryption: Yes

Scope of delivery:

  • 1x Privest wireless alarm panel ENG
  • 6x Rechargeable battery
  • 1x Installation DVD
  • 1x Installation manual

Software:

  • Installation Software

Required accessories:

USB cable for Privest
FU9099
