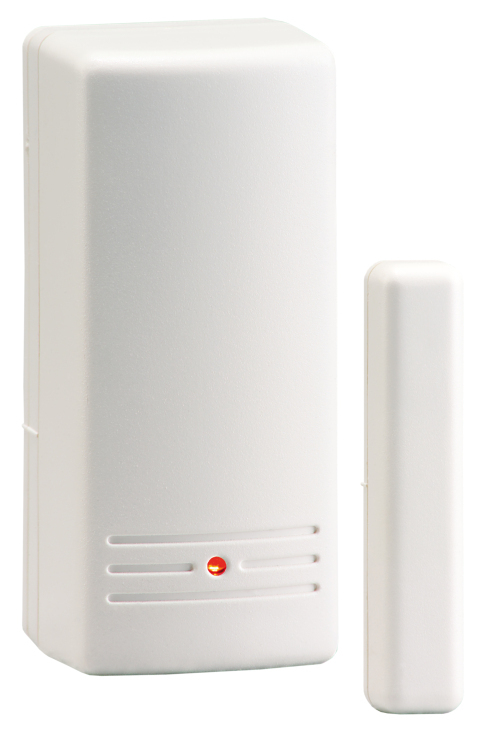

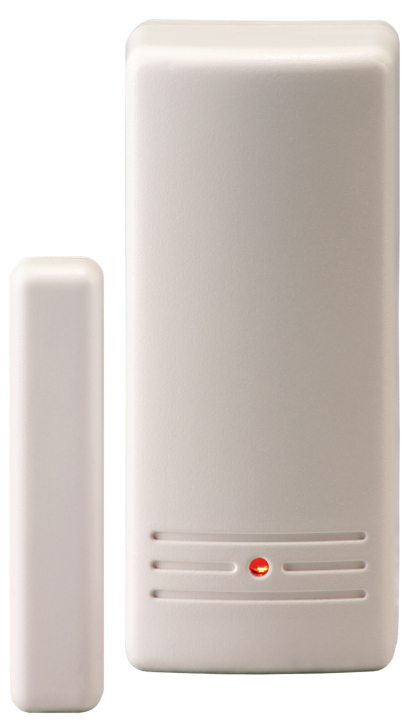

Privest Wireless Magnetic Contact, white right view Privest Wireless Magnetic Contact, white front view
||||

Privest Wireless Magnetic Contact, white (Art. no. FU9025W)

Special product features:

  • Monitors doors and windows
  • Opening of entrances is reliably detected
  • Connection option for further wired detectors
  • Adjustable supervision time
  • Can be used as a wireless module
  • Color options: brown/white

The Privest Wireless Magnetic Contact is an accessory of the Privest Wireless Alarm Panel. A magnetic contact secures doors and windows. Unauthorized opening is detected and reported to the wireless alarm center.The ideal place for installation of the Privest Wireless Magnetic Contact is the center of a door or window frame. It is also possible to install it on the lower window frame if a window is to be tilted with the solenoid contact secured. The Privest Wireless Magnetic Contact consists of a detector and a magnet. These are arranged parallel to each other at a distance of a maximum of 10 mm. An alarm is triggered if this distance increases. The Wireless Magnetic Contact is available in white (FU9025W) and brown (FU9025B). For wiring additional zones, you have a choice between NC and NO wiring. You can connect the additional alarm zone with a passive glass breakage detector, for example. Thus you are protecting the window not only from unauthorized opening, but also from glass breakage.

Technical data:

Art. no.: FU9025W
Dimensions: (WxHxD) 35x81x32 mm
Connections: Clamping terminal
Battery type: 3V CR123 lithium battery
Width: 35 mm
Type of detection: Magnetic field measurement
Radio frequency: 868,65 MHz
Transmission power: 10
Housing material: ABS
Height: 81 mm
Length: 32 mm
Max. battery life: 2 year(s)
Max. operating temperature: 50 °C
Max. sending range (outdoors): 100 m
Max. sending range (building): 30 m
Min. operating temperature: 0 °C
Modulation: AM FM / AM
Installation location: Windows, doors
Net weight: 0.06 kg
Tamper monitoring: Yes
IP protection class: 31
Sensor type: Reed contact
Security level: 2
DC voltage supply: 3 V
Status display: Yes
Power consumption: 0.06 mA
Environmental class: II

Scope of delivery:

  • 1x Wireless opening detector
  • 1x Battery (FU2998)
