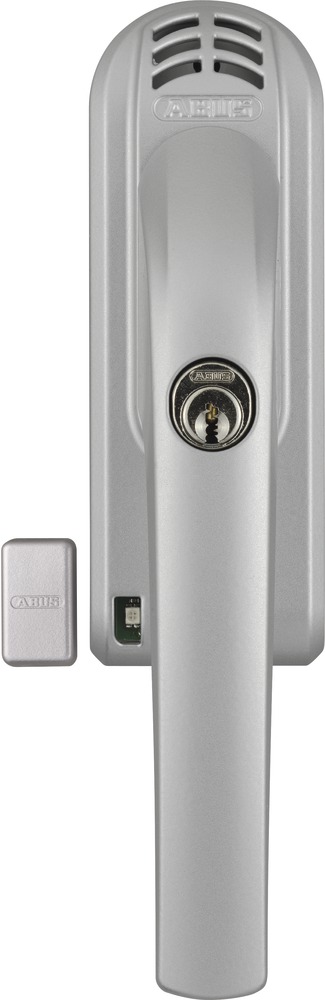

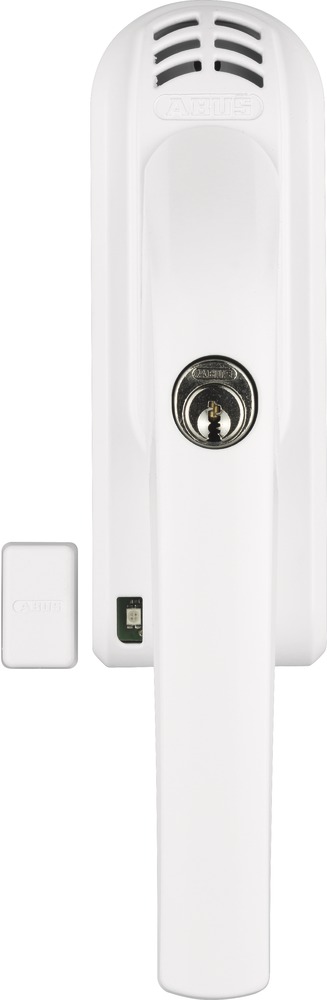

Lockable window handle FG300A white forntal view Lockable window lock FG300A silver frontal view

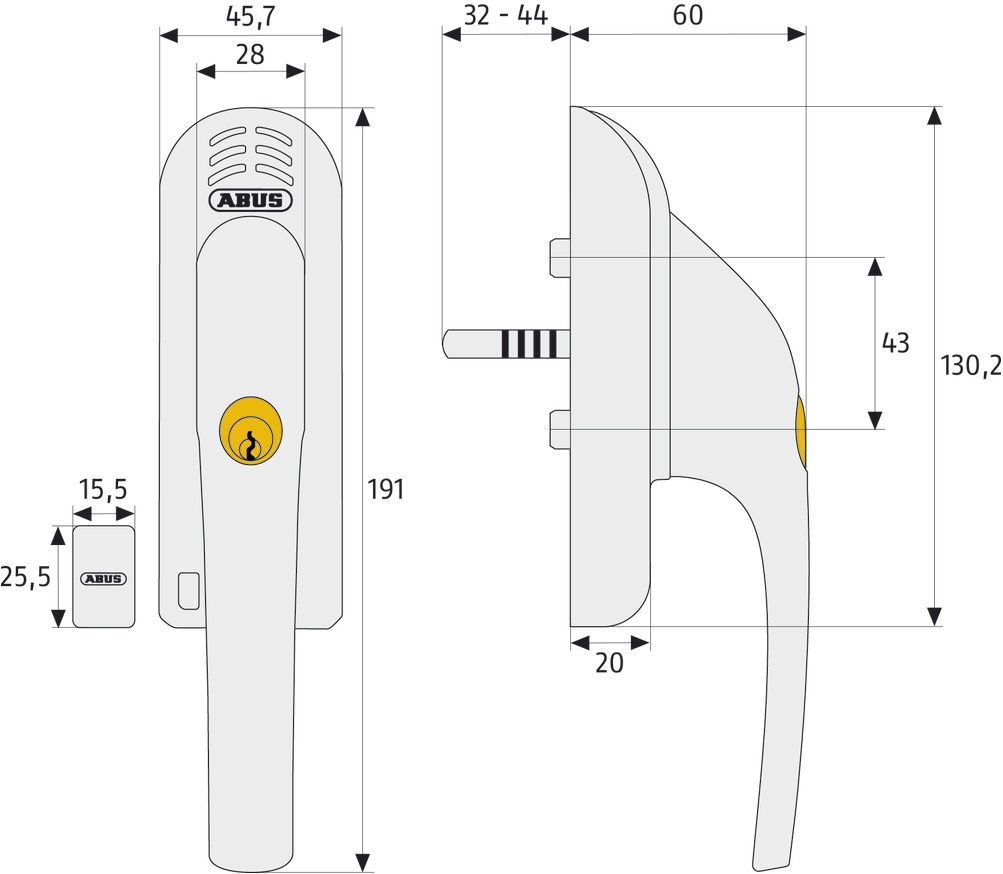

Lockable window lock FG300A W R AL0125 Technical drawing
German development and production New locks can be made according to a sample key For inward opening windows
|||

Lockable window handle FG300A W R AL0125

Locking window handle with alarm

Technology:

  • Activated pressure cylinder prevents opening of the window handle and arms the alarm function
  • Keyed-alike combination possible with other ABUS security devices
  • Integrated 110dBA (+/- 2 dBA) alarm siren as used in the Detecto 7000
  • Power supply: 2 x AAA battery (standard)

Operation and use:

  • Parts for tilt-and-turn windows, patio doors as a stand-alone solution
  • Electronic monitoring of windows and patio doors
  • Arming and disarming by means of the pressure cylinder
  • Also suitable as a child lock
  • Window handle is locked by means of the pressure cylinder and opened with the key

Variants:

  • Colours: white, silver

Technical data:

Art. no.: 56799
Level: 7
Colour: whiteweiß

Variants:

Lockable window handle FG300A W R AL0125
Art. no. 56799
Level: 7
Weight [g]:
Lockable window handle FG300A W L AL0125
Art. no. 56804
Level: 7
Weight [g]:
Lockable window handle FG300A B L
Art. no. 58278
Level:
Weight [g]: 		Lockable window handle FG300A B R
Art. no. 58279
Level:
Weight [g]:

Downloads:
