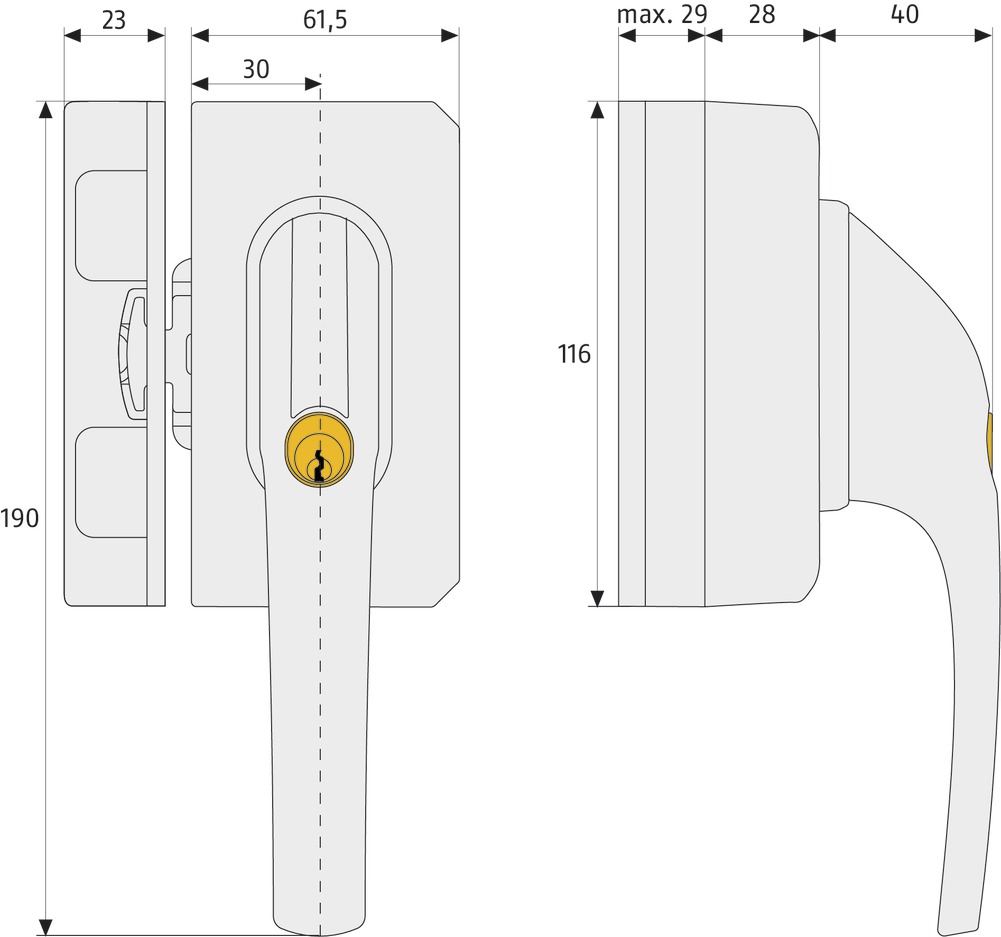

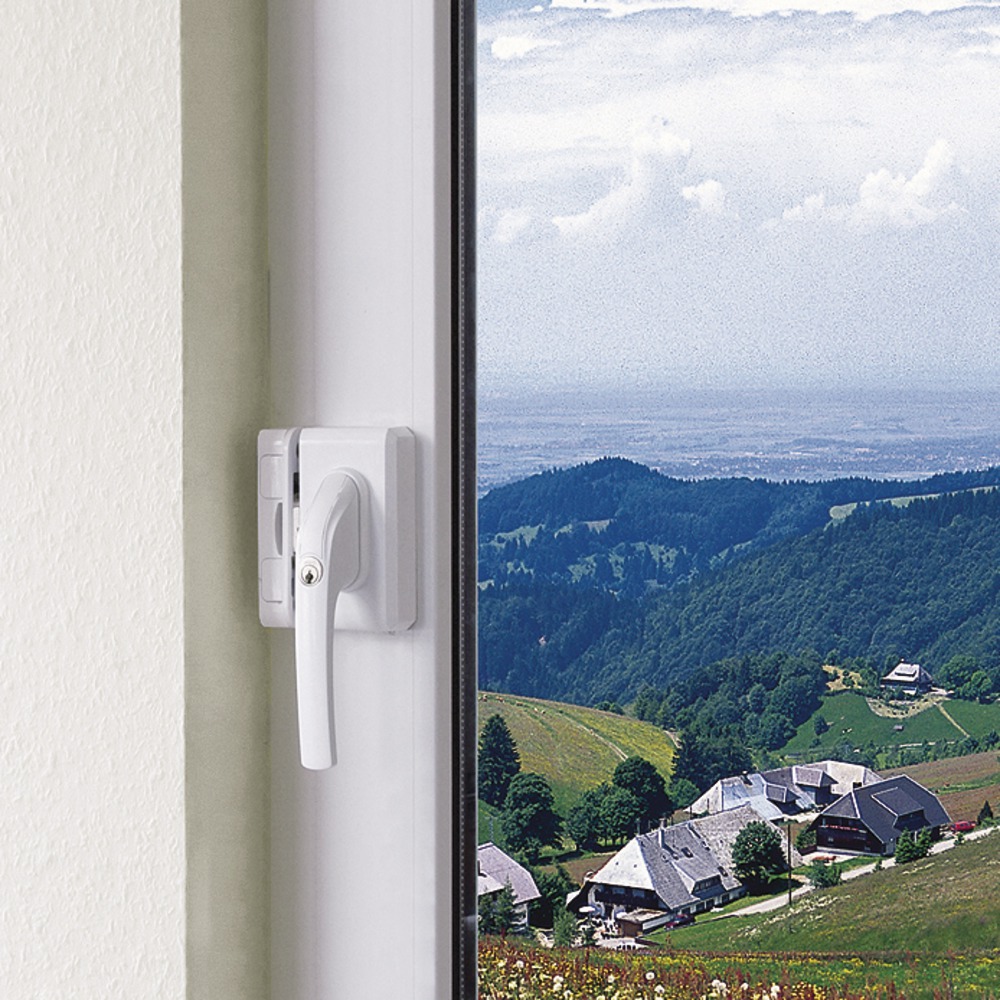

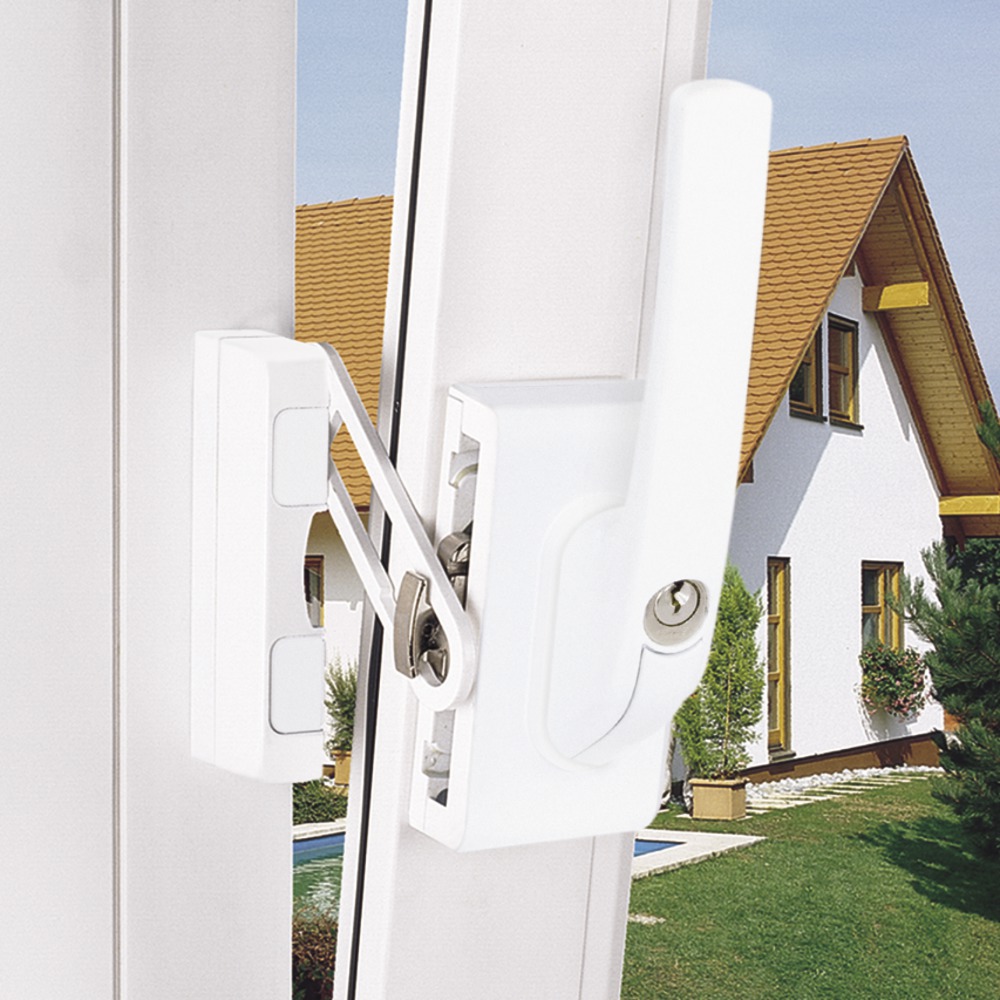

Window handle lock F0500 frontal view Window handle lock F0500 frontal view Window handle lock F0500 example of appcliation Window handle lock F0500 example of application Technical drawing
Level 10 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production Tested and approved product New locks can be made according to a sample key Door guard protects internal occupants For inward opening windows Leverage attack resistant - the most common break-in method Leverage attack resisted by locking steel bolts
DIN certified Test Seal of SKG-The Netherlands
|||

Window Handle Lock FO500 W AL0089

Secure Lockable Window Handle

Technology:

  • VdS approved, DIN tested
  • Quality 4-pin tumbler cylinder
  • Push-button cylinder, locking without key
  • Resists more than one ton load
  • Claw bolts
  • Hardened guard: protects in both tilt and closed position
  • Solid wall anchor: fixings included
  • Incl. two keys

Operation and use:

  • Lockable window handle with a hardened guard for inward opening windows
  • The system and the window is locked by the window handle
  • Dead bolting with quality push-button cylinder
  • Unlocking with the key only necessary after dead bolting
  • Can be supplied keyed alike with a variety of other ABUS products

Variants:

  • Finishes: brown, white

Technical data:

Art. no.: 37028
Level: 10
Colour: white

Variants:

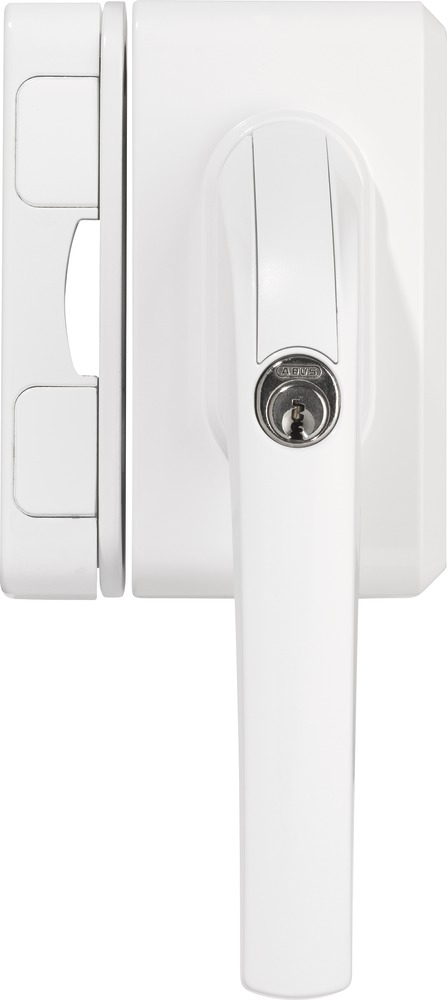

Window Handle Lock FO500 W AL0089
Art. no. 37028
Level: 10
Weight [g]:

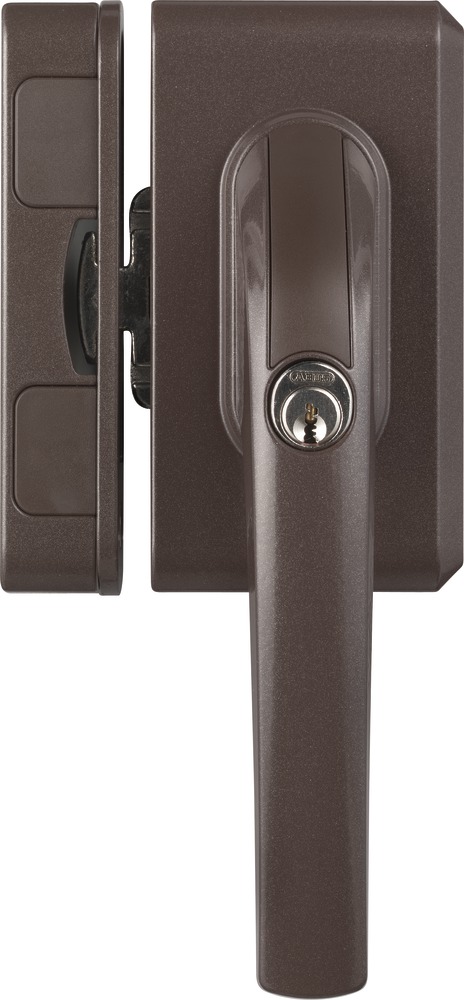

Window Handle Lock FO500 B AL0089
Art. no. 37025
Level: 10
Weight [g]:
