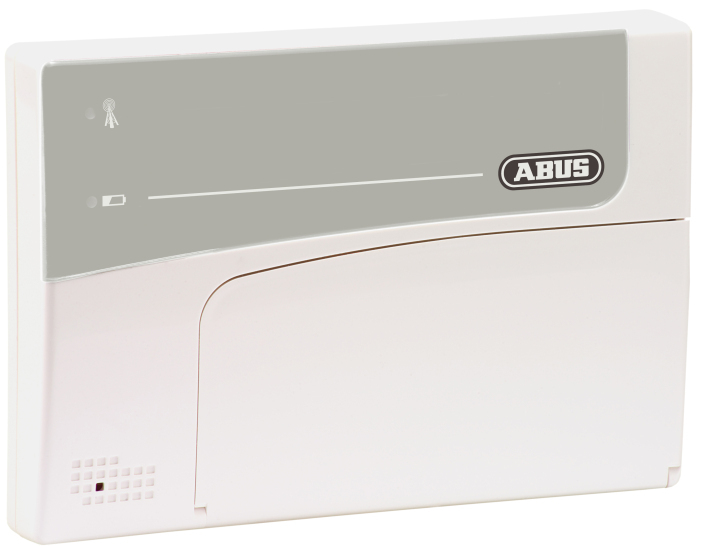

Privest Wireless Keypad (Art. no. FU9045)

Special product features:

  • Up to 2 wireless control units per Privest system can be trained
  • Operation with PIN code
  • For arming, internally arming, or disarming the alarm panel
  • Manual panic, fire, and emergency alarm functions
  • Switching outputs

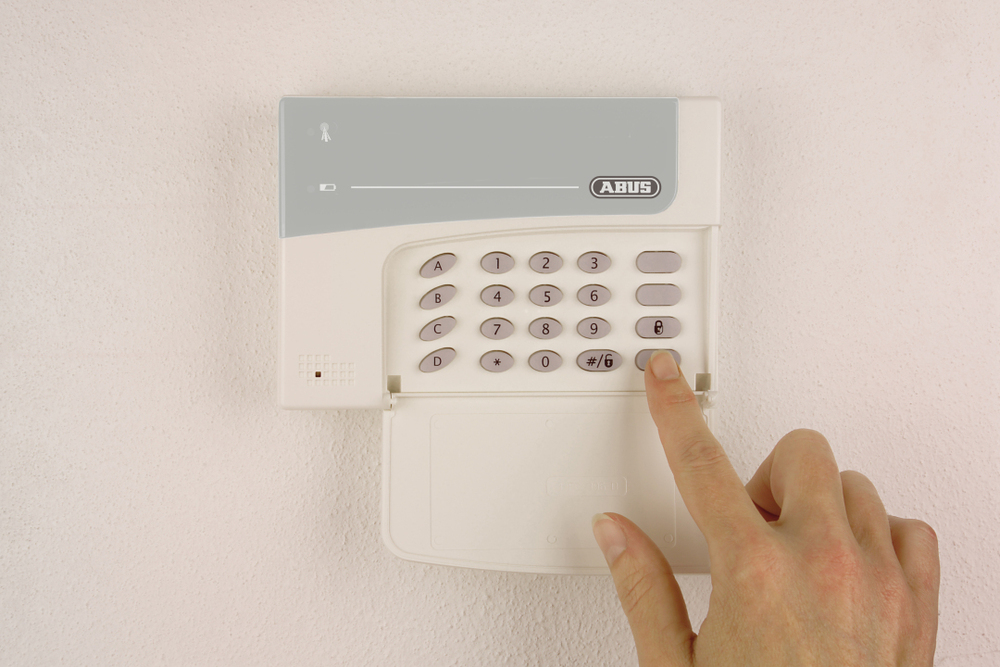

The Privest Wireless Keypad is an extension module for the Privest Wireless Alarm System. Entering a PIN code, you can arm and disarm your system from any wireless control unit. Up to two control units can be integrated into the alarm system. Installed in different parts of your building, these extension modules provide extra convenience. You can arm and disarm your Privest directly from the control unit, without having to walk to the alarm control panel. Using the function keys of the module, you can send a robbery alarm, a fire alarm, and a medical emergency call. This is done by simultaneously pressing two function keys. You are not required to enter a code.

Technical data:

Art. no.: FU9045
Dimensions: (WxHxD) 165x122x34 mm
Connections: Yes
Battery type: 3V CR123 lithium battery
Width: 165 mm
Radio frequency: 868.65 MHz
Transmission power: 10
Housing material: ABS
Height: 122 mm
Length: 34 mm
Max. battery life: 2 year(s)
Min. operating temperature: 0 °C
Modulation: AM FM / AM
Installation location: Indoors
Net weight: 0.28 kg
Tamper monitoring: Yes
IP protection class: 31
Security level: 2
Voltage monitoring: Yes
DC voltage supply: 3 V
Power consumption: 0.0050 mA
Environmental class: II

Scope of delivery:

  • 1x Lithium battery (FU2998)
