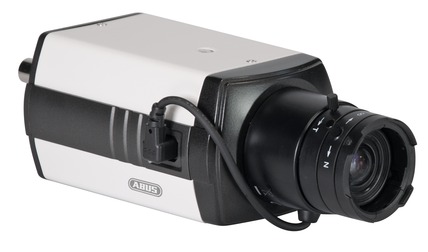

Universal Analog Boxtype 700 TVL front view right
Neu
||||||

Universal Analog Boxtype 700 TVL (Art. no. TVCC91500)

Special product features:

  • 700 TV lines of resolution
  • 1/3" Sony Super HAD CCD
  • WDR function (75dB) for compensating high image contrasts
  • Day/night camera with electromechanically removable IR-cut filter (ICR)
  • DNR function for noise-free images
  • On-screen display for easy configuration

Universal use with 700 TV lines
This allround day/night camera provides high-definition images (700 TV lines) in outstanding quality – in all light conditions and at night. With the right lens, the camera can be used for different monitoring areas both indoor or outdoor. Because of the different lenses you can flexible choose the right focal length for your monitoring area.
A wide range of lenses are available: C-mount and CS-mount lenses can be attached to this camera, with or without auto-iris function.
Furthermore, this camera can be used in weatherproof housing for outdoor surveillance.
Image Quality
The 1/3" Sony super HAD CCD image sensor is very light-sensitive and provides detailed images even at night. The WDR function (Wide Dynamic Range) ensures that both dark and bright image areas are illuminated optimally (ideal for backlight and high contrasts etc.).

Please note
A weatherproof housing for outdoor use, lenses and IR illuminators are available according to the camera.

Technical data:

Art. no.: TVCC91500
Dimensions: 69,0 x 56,0 x 113,3 mm
Alarm input (NO/NC): 1
Connections: 1 x BNC, 1 x AC/DC
Back focus adjustment: Yes
Image sensor: 1/3" Sony Super HAD II CCD
Pixels (effective): 976(H) x 582(V) pixel
Image integration: 0x - 256x
Width: 69 mm
Digital zoom: Yes
DSP: Sony Effio-V
Dynamic range (WDR): 75 dB
Electronic shutter: 1/50 s - 1/10000 s
Backlight compensation: WDR, BLC
Housing material: Metal
Height: 56 mm
Camera outputs: 1 x BNC, 1Vss
Camera type: Standard camera
Max. operating temperature: +60 °C
Max. humidity: 90 %
Min. operating temperature: -10 °C
Minimum illumination (color): 0,1
Minimum illumination (IR): 0
Minimum illumination (B/W): 0,001
Net weight: 0,4 kg
Lens control: AI, DC/Video
Private zones: 12 zones
Noise reduction: DNR
IP protection class: 20
Signal-to-noise ratio: >62
AC voltage supply: 24,0 (+/- 10%) V
DC voltage supply: 12,0 (+/- 10%) V
Language of instructions: DE, UK, FR, NL, DK, ES, IT, PL, RU
OSD language: UK
Power consumption: 830 mA
Day/night switching: ICR/Color/B/W
TVL: 700 TVL
Amplifier control: AGC
Video output: 1,0 Vss
Video system: PAL
White balance: AWB
Certifications: CE, RoHS, Reach

Scope of delivery:

  • 1x Boxtype camera
  • 1x User manual
