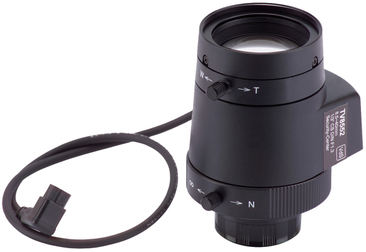

1/3" IR Vario Lens 2.8-12 mm DC Aperture right view 1/3" IR Vario Lens 2.8-12 mm DC Aperture front view
|||||

1/3" IR Vario Lens 2.8-12 mm DC Aperture (Art. no. TV8554)

Special product features:

  • Auto iris lens
  • Focal length 2.8 - 12.0 mm
  • Aperture: F1.3
  • Horizontal viewing angle: 98° - 24°
  • Compatible with IR light

The lens is a very important component of your camera. It regulates the incidence of light on the camera's CCD and thus ensures an optimal exposure of your pictures. All lenses have a standard mounting thread. You can easily mount CS-Mount lenses on any camera. The aspheric lenses ensure especially high-quality pictures and prevent poor focusing at the edges. The incidence of light through the iris is controlled by the camera's auto-iris function. The lens is connected to the camera with a DC plug. (The greater the focal length, the narrower the viewing angle and the nearer you can zoom in on the image.) The TV8552, TV8553, TV8554, TV8555 and TV8556 lenses are IR-light compatible.

Technical data:

Art. no.: TV8554
Dimensions: (HxD) 58.0x44.5 mm
Aspherically ground: Ja
Aperture: F 1.3
Horizontal angle: 98 − 24 °
Width: 44.5 mm
Focal length: 2,8 − 12,0 mm
Format: 1/3
Thread: CS
Height: 58 mm
Compatible with IR light: Ja
Iris: Auto-Iris
Net weight: 0.069 kg

Scope of delivery:

  • 1x User guide
Objektive für Analoge Kameras

Lenses for analog cameras

All lenses for analog cameras from ABUS have a standardized connection thread. As CS-mount lenses, they can be easily installed. The aspherical lenses ensure especially high-quality images and prevent poor focusing at the edges. ...
