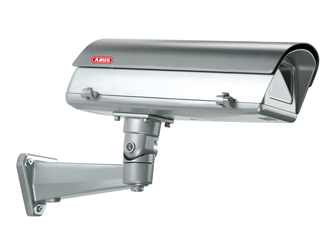

Outdoor Housing With Heating And Power Supply (Art. no. TV8494)

Special product features:

  • Protection class IP67
  • Integrated 12 V DC (1.5 A, gross) power supply
  • Internal cable routing
  • Heater included
  • Trouble-free outdoor use

The outdoor housing provides best protection even under the worst weather conditions. It does not only provide secure mounting, but also protects your camera against wind and rain. A 230 VAC heating unit with thermostat and a 12 VDC (1.5 A) power supply are integrated in the weather-proof housing. Thanks to the heating system, the window of the protective housing cannot fog up and condensation water is prevented. The result: Clear images even in capricious weather. The housing is dust-proof and protected against spraying water (IP 67). You can mount it outdoors without hesitation.

Technical data:

Art. no.: TV8494
Dimensions: (W x H x D) 154 x 123 x 410 mm
Width: 154 mm
Housing material: aluminium
Heating: Ja (300 mA)
Height: 123 mm
Cabling: internal
Length: 410 mm
Max. operating temperature: 50 °C
Min. operating temperature: -20 °C
Net weight: 3.4 kg
Tamper protection: Cover switch
IP protection class: 67
AC voltage supply: 230 V
Certifications: CE

Scope of delivery:

  • 1x Joint component
  • 1x Mounting set
  • 1x Installation instructions
