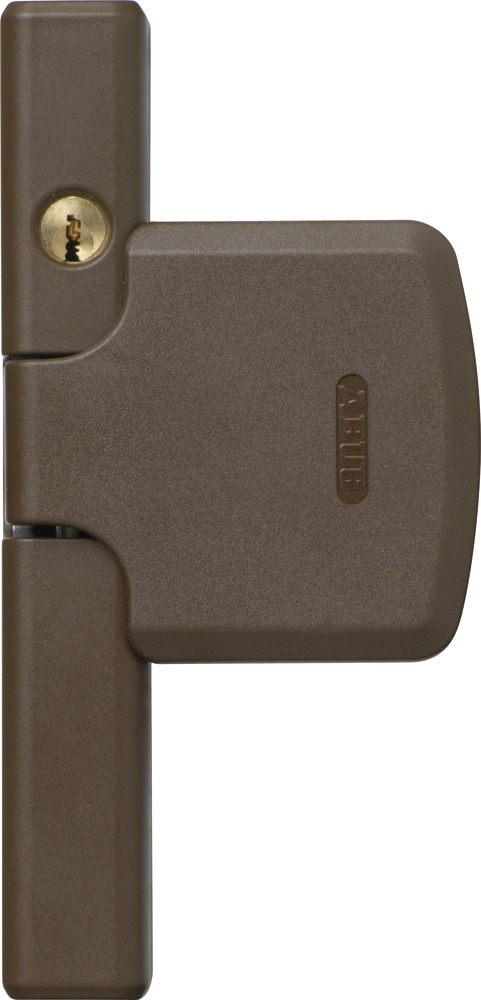

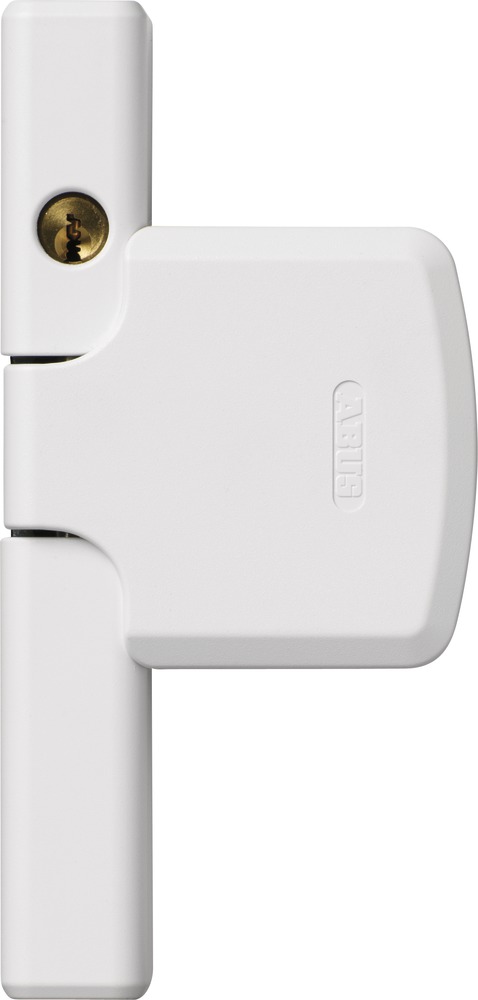

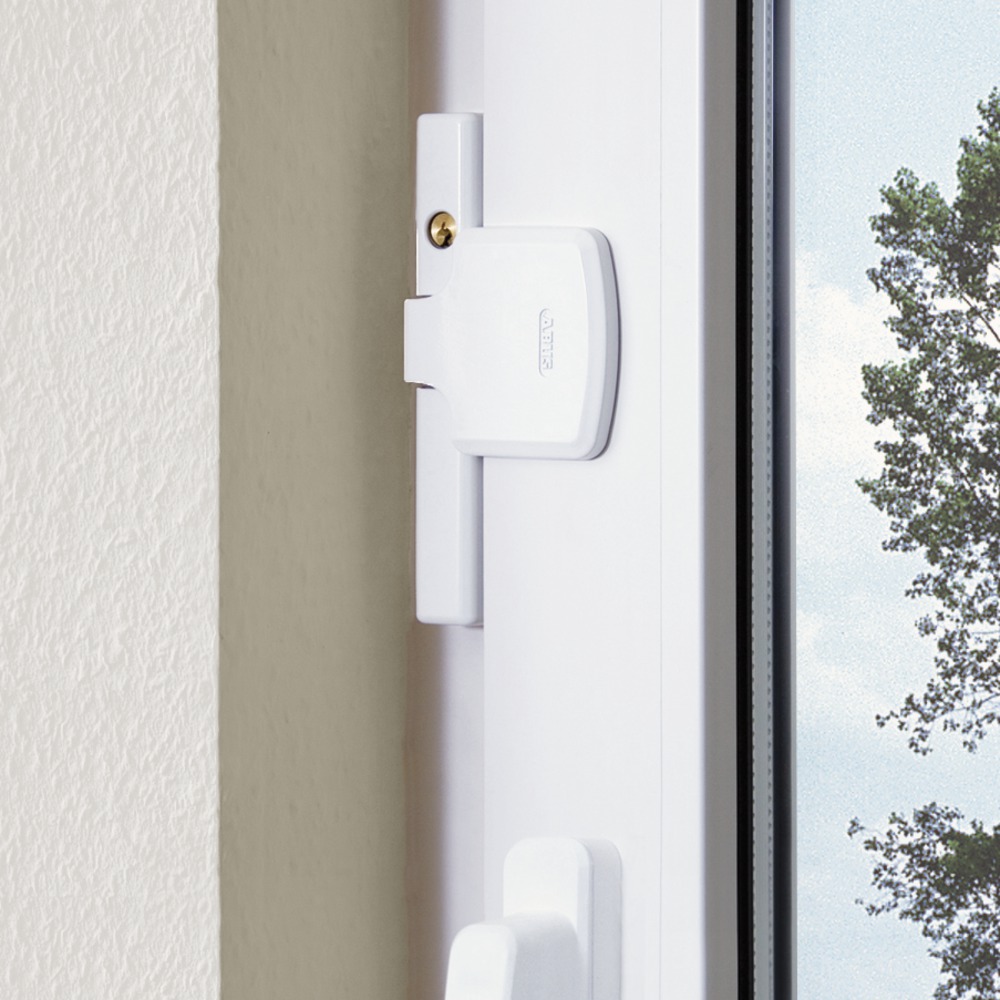

Additional window lock FTS206 frontal view Additional window lock FTS206 frontal view Additional window lock FTS206 Additional window lock FTS206 Additional window lock FTS206 example of application

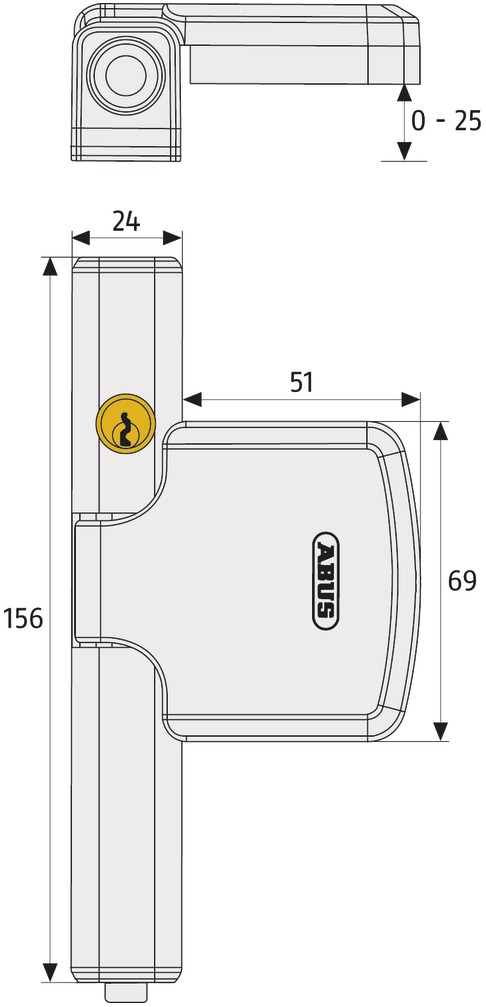

Technical drawing
Level 10 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production Tested and approved product New locks can be made according to a sample key For inward opening windows Leverage attack resistant - the most common break-in method
DIN certified Test Seal of SKG-The Netherlands
|||

Additional Window lock FTS206 W AL0089

Elegant window lock

Technology:

  • Tested by independent Test Institutes
  • More than 1 ton pressure resistance
  • For rebates 0-25 mm
  • “Open/closed” position visible
  • incl. two keys

Operation and use:

  • Suitable for inward opening windows and patio doors on the handle side
  • Device and window are locked with the securing bolt
  • New: locks with 2 turns
  • First turn: slightly press in the bolt = locking function (protection of the persons inside)
  • Second turn: press in the bolt completely = dead bolted "
  • Opening the device from the dead bolted position with the key
  • Can be supplied keyed alike with a variety of other ABUS products

Variants:

  • Finishes: brown, silver, white

Technical data:

Art. no.: 37396
Level: 10
Colour: white

Variants:

Additional Window lock FTS206 W AL0089
Art. no. 37396
Level: 10
Weight [g]:
Additional Window lock FTS206 B AL0089
Art. no. 37390
Level: 10
Weight [g]:
Additional Window lock FTS206 B SB
Art. no. 37750
Level: 10
Weight [g]:
Additional Window lock FTS 206
Art. no. 37751
Level: 10
Weight [g]:
Additional Window lock FTS206 S AL0125
Art. no. 44473
Level: 10
Weight [g]:
