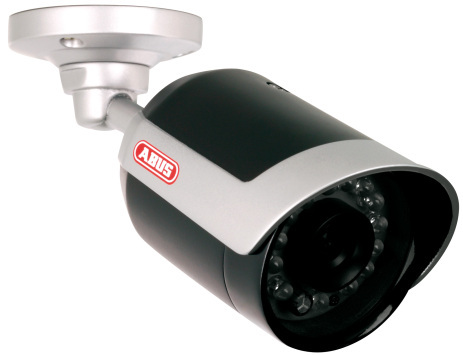

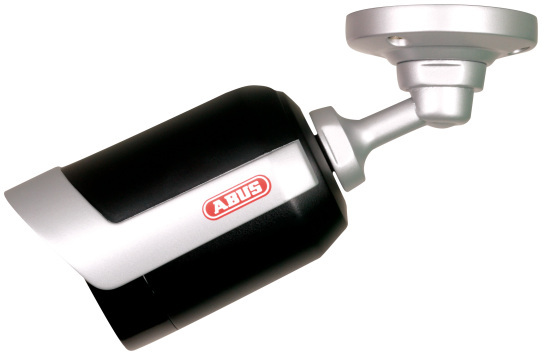

IR Mini 520 TVL Outdoor Camera (Art. no. TVCC40030)

Special product features:

  • 520 TVL resolution
  • Compact outdoor camera with IR night vision function (IP66)
  • Day/night camera with electromechanical swivelling IR cut filter
  • Simple plug & play camera installation
  • Concealed cabling
  • 3-axis camera mount included (pre-installed)

Top image quality with 520 TV lines plus extensive features - in the smallest, more inconspicuous design: This miniature camera does not miss a single incident. The new IR mini outdoor cameras impress with a complete configuration for 24-hour video surveillance, even in outdoor areas. Thanks to the Easy-Plug feature, installation can be carried out easily and safely by hand, as the camera is only attached after the bracket has been mounted. In this way the camera cannot be damaged during the mounting operations. Even when the camera is changed for maintenance purposes etc. this feature represents a real time saver. The small IR Mini 520 TVL Outdoor Camera is a real all-rounder. With protection class IP66 the cameras can also be mounted outdoors. The integrated IR LEDs illuminate the camera's field of vision with a range of up to 15 meters, so that even at night everything is surveilled. This camera is ideal for the surveillance of facades, areas near the entrance and exit, drives or inner courtyards. A decisive advantage of the 520 TVL camera is also the automatic pivoting IR band-elimination filter: Thanks to this, a high degree of color fidelity is achieved in daylight and at the same time, optimal use of the infrared light is guaranteed in the dark.

Technical data:

Art. no.: TVCC40030
Dimensions: (WxHxD) 60x57x155 mm
Connections: BNC, 1V s-s, 75 Ohm, 5.5x2.1mm (DC)
Image sensor: 1/3" Sony Super HAD CCD
Pixels (effective): 752(H) x 582(V) pixel
Pixels (total): 795(H) x 596(V) pixel
Aperture at minimum illumination (color): 2.3, 30
Aperture at minimum illumination (IR): 2.3 30
Width: 60 mm
Focal length: 3,6 mm
DSP: Nextchip
Electronic shutter: AES
Backlight compensation: BLC
Height: 57 mm
Horizontal angle of view: 78 °
IR LEDs: 12
IR range: 15 m
Camera type: Outdoor camera
Length: 155 mm
Max. operating temperature: 50 °C
Max. humidity: 85 %
Min. operating temperature: -10 °C
Minimum illumination (color): 0,5
Minimum illumination (IR): 0
Net weight: 0.3 kg
Lens: Miniatur, 3,6 mm
Lens control: DC
IP protection class: 66
Signal-to-noise ratio: 48
DC voltage supply: 12 V
Control: DC
Power consumption: 270 mA
Day/night switching: IR cut can be swivelled electromagnetically
TVL: 520 TVL
Amplifier control: AGC
Video output: FBAS (1 Vss, 75 Ohm)
Video system: PAL
White balance: AWB
Certifications: CE

Scope of delivery:

  • 1x Installation material
  • 1x Camera mount with easy-plug function (pre-installed)
  • 1x User guide

Required accessories:

CCTV Switching Power Supply
TV7616
