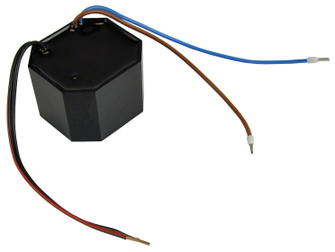

Mini Integrated Power Supply front view
|||||

Mini Integrated Power Supply (Art. no. TVAC35200)

Special product features:

  • Stabilized mini switching power supply
  • Also ideal for installation in a 55 mm flush-mounted box
  • Input voltage: 110 - 240 V AC
  • Output voltage: 12 V DC with 1.0 A

The stabilized mini integrated power supply (230 V AC / 12 V DC, 1 A) supplies power to your video components. With its compact size it is particularly suitable for installation in 55 mm flush-mounted sockets and wherever little space is available for power supply.

Technical data:

Art. no.: TVAC35200
Dimensions: (W x H x D) 48 x 35 x 51 mm
Output voltage: 12 V DC V
Width: 48 mm
Input voltage: 110 − 240 V AC V
Height: 35 mm
Length: 51 mm
Operating current: 1.000 mA
Net weight: 0.13 kg

General Downloads:

Required accessories:

DC 2-Pin Adapter
TVAC35800
