Technical drawing
Level 6 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security Dimple key: no sharp edges and can be inserted either way up New locks can be made according to a sample key Shackle locked on both sides Shackle made from hardened steel
|||

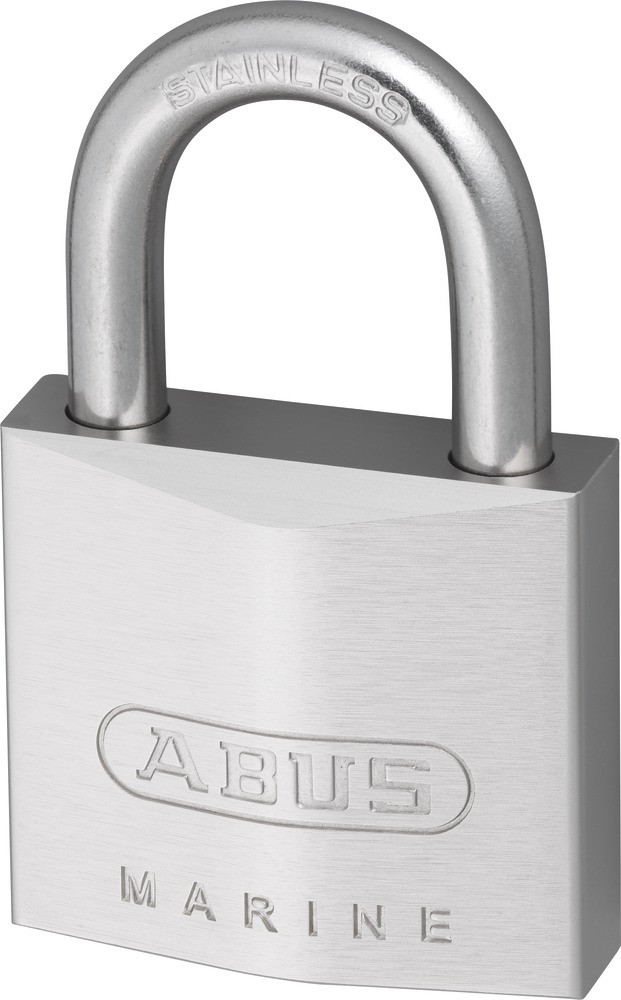

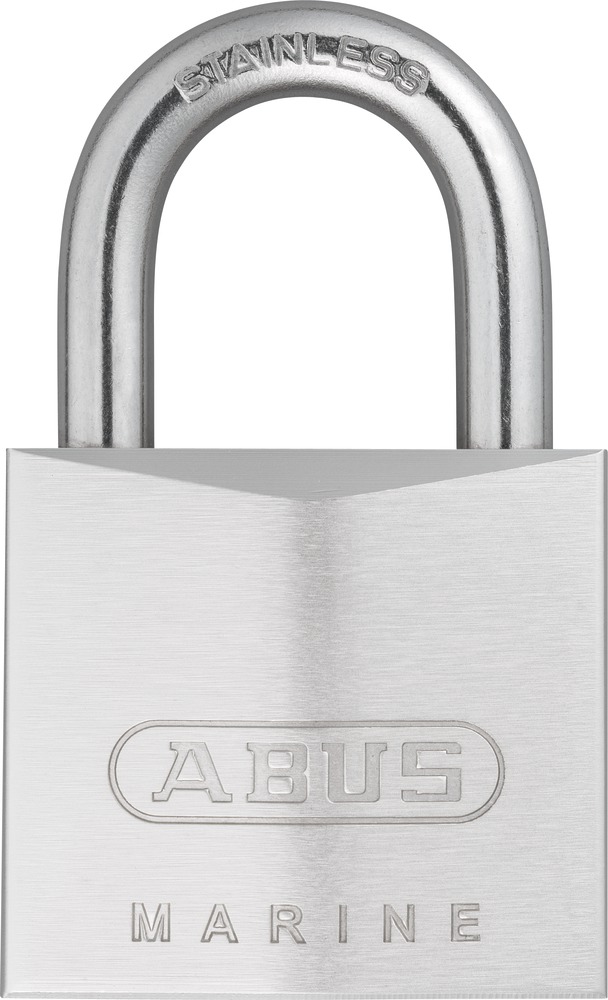

Padlock brass 75IB

Never Rust - With reversible key

Technology:

  • High precision reversible key system with up to 150,000 key variations
  • Lock body made of solid brass, pearl nickel plated
  • Inner components made from rustfree high quality materials
  • Double bolted
  • Shackle made from stainless steel
  • Paracentric keyway for increased protection against manipulation
  • 75IB/40 - 75IB/50: Key retaining
  • 75IB/30: Self-locking

Operation and use:

  • 75IB/30 – 75IB/40: To secure valuables / goods of medium value or at an average risk of theft
  • 75IB/50: To secure valuables / goods of greater value or at a high risk of theft

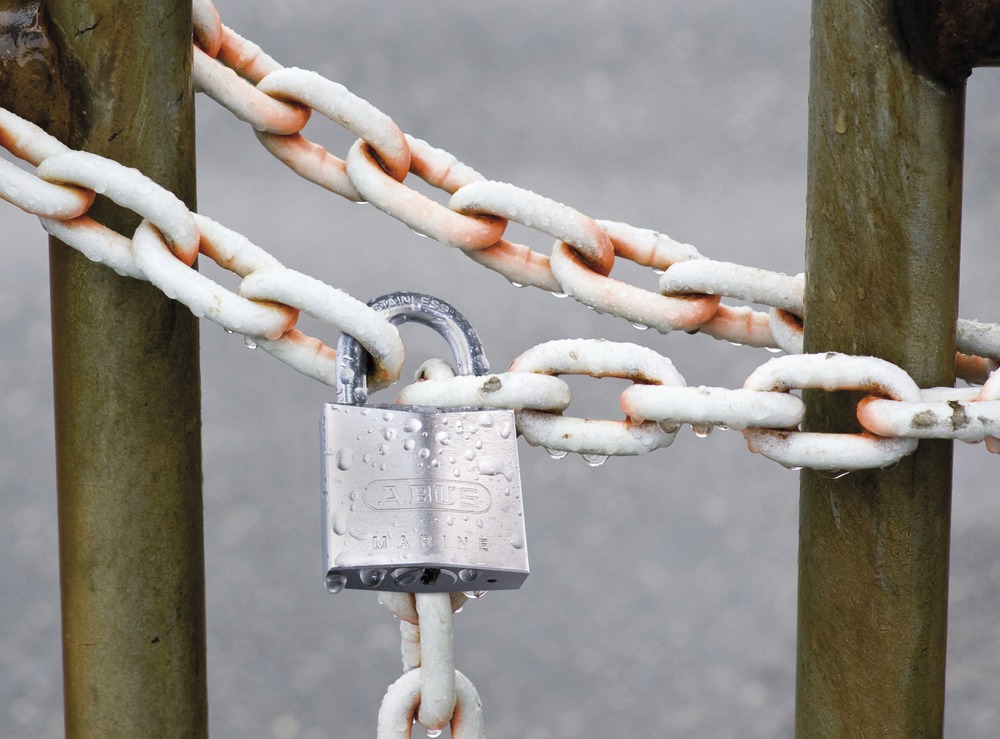

  • To secure doors, gates, cupboards, lockers, tool boxes, cellar windows, sheds, switchboards, etc.

Variants:

  • Sizes: 30, 40, 50 mm

Technical data:

Art. no.: 28638
Width a [mm]: 40
Horizontal clearance b [mm]: 22
Vertical clearance c [mm]: 23
Shackle diameter d [mm]: 7
Depth e [mm]: 16
Height f [mm]: 61
Level: 6
Weight [g]: 179
