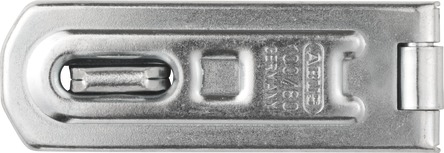

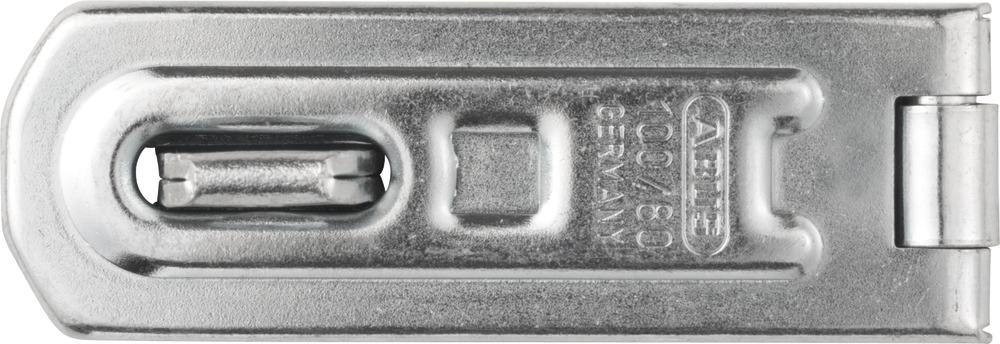

Hasp 100/80 frontal view Technical drawing
Level 4 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production Shackle made from hardened steel
|||

Hasp 100/80

Hasp

Technology:

  • Corrosion protected
  • As of size 80 hardened staple
  • Concealed hinge pin
  • Hidden screws

Operation and use:

  • Designed for doors closing flush, i.e. door leaf and door frame are level
  • ‘DG’ versions: with double joint – designed for doors not closing flush, i.e. door leaf and door frame are not level, and corner solutions
  • To be used with a padlock

Variants:

  • Sizes: 60, 80 and 100 mm
  • Sizes double link (DG): 80 and 100 mm

Technical data:

Art. no.: 01438
Width a [mm]: 80
Depth b [mm]: 27
Hole Diameter c [mm]: 9
Level: 4
Weight [g]: 63

Variants:

Hasp 100/80
Art. no. 01438
Width a [mm]: 80
Level: 4
Hasp 100/60
Art. no. 01434
Width a [mm]: 60
Level: 4
Hasp 100/100
Art. no. 01448
Width a [mm]: 100
Level: 4
Hasp 100/80 DG
Art. no. 01443
Width a [mm]: 125
Level: 4
Hasp 100/80DG SB
Art. no. 01444
Width a [mm]: 125
Level:
Hasp 100/100 DG
Art. no. 01453
Width a [mm]: 160
Level: 4
Hasp 100/100DG SB
Art. no. 01454
Width a [mm]: 160
Level: 4

Downloads:

Hasps

Hasps

The security rating of the hasp should always match the padlock. ABUS offers a wide range of safety hasps. You recognize it, for example, to concealed screws. Additionally toughened steel loops that take the shackle of the padlock are concealed inside the hasp and thus provide optimal protection against attempts to break the lock open. ...
