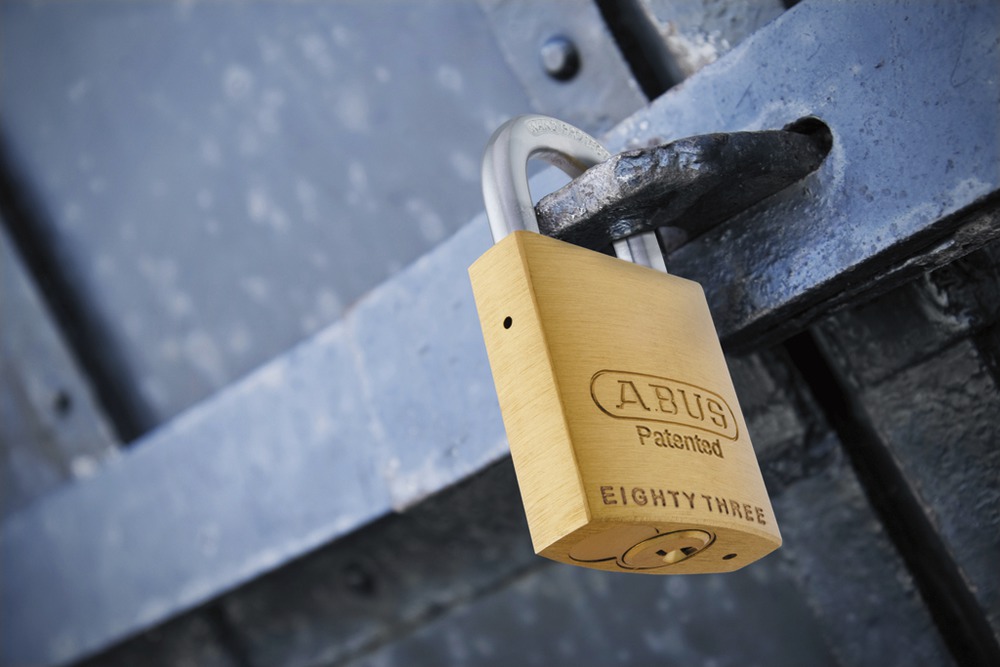

Technical drawing Padlock 83/50 example of application
Level 8 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security Shackle locked on both sides Paracentric keyway: resists professional picking by special key profile Shackle Guard: shackle access restricted, protecting shackle from attack Self-locking: the lock is locked automatically by pushing down the shackle –no key needed for locking Key-retaining: Lock retains key until locked Keyed alike padlocks: can be opened by single key Available master keyed: one key opens many different locks Cylinder can be taken out and can be rekeyed to match an existing key New sophisticated plating for extreme corrosion resistance
|||

Rekeyable Brass 83/45

High security - keyed alike with the front door

Technology:

  • Solid brass lock body
  • Special alloy steel shackle with NANO PROTECT™ plating
  • Double bolted
  • Can be keyed into many popular security keyways
  • On request lock can be converted from key-retaining to non-key-retaining and vice versa within seconds

Operation and use:

  • To secure valuables/goods of greater value or at a high risk of theft
  • To secure gratings, doors, gates, cupboards, tool boxes, cellar windows, sheds, switchboards, barriers, etc.

Variants:

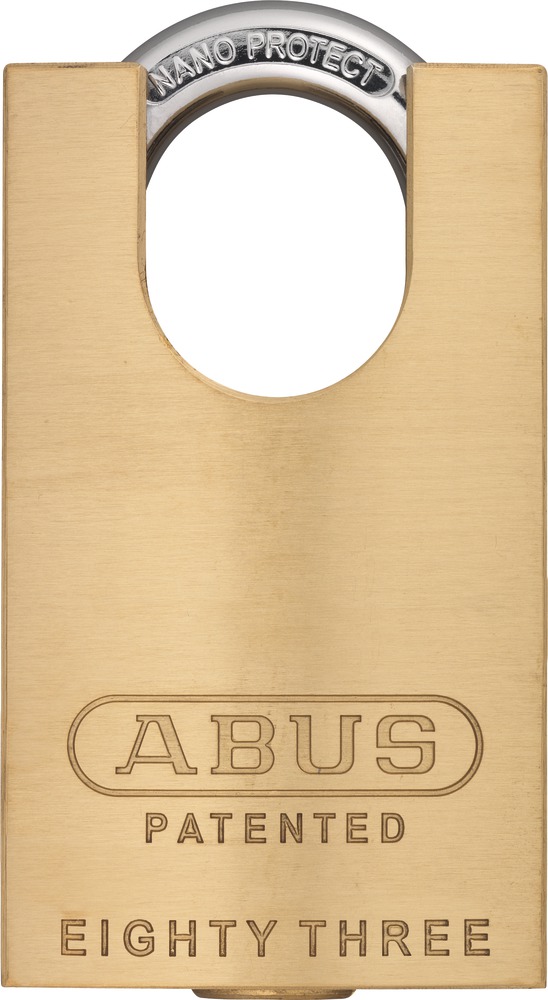

  • 83CS/55: Shackle guard protects against tool attacks

Technical data:

Art. no.: 53926
Width a [mm]: 47
Horizontal clearance b [mm]: 24
Vertical clearance c [mm]: 25
Shackle diameter d [mm]: 8
Depth e [mm]: 20
Height f [mm]: 84

Variants:

Rekeyable Brass 83/45
Art. no. 53926
Width a [mm]: 47
Level:
Rekeyable Brass 83IC/45
Art. no. 59649
Width a [mm]: 47
Level:
Rekeyable Brass 83CS/45
Art. no. 52870
Width a [mm]: 47
Level: 		Rekeyable Brass 83KnK/45
Art. no. 55771
Width a [mm]: 47
Level:
Rekeyable Brass Cylinder cover
Art. no. 27347
