Technical drawing
Level 6 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security New sophisticated plating for extreme corrosion resistance Shackle Guard: shackle access restricted, protecting shackle from attack Rust-free: all elements of the lock are made from non-corrosive materials Keyed alike padlocks: can be opened by single key Paracentric keyway: resists professional picking by special key profile Self-locking: the lock is locked automatically by pushing down the shackle –no key needed for locking Shackle locked on both sides
|||

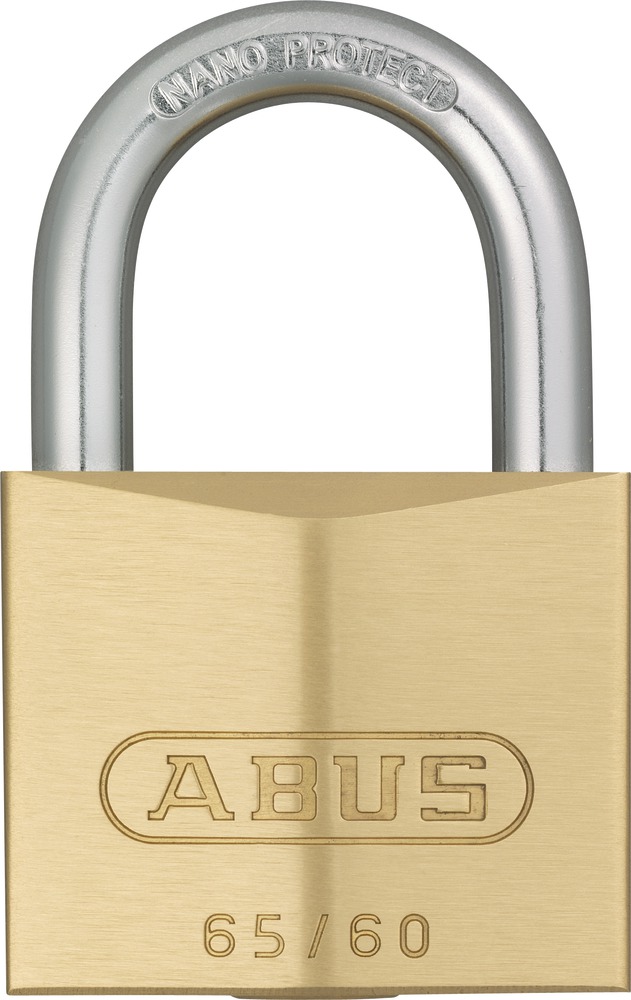

Padlock brass 65/60

Solid brass padlock

Technology:

  • Body made from solid brass
  • Shackle made from hardened steel with NANO PROTECT™ coating
  • Shackles available in different lengths (HB)
  • Inner components made from non-corrosive materials
  • Precision pin tumbler cylinder
  • CS: shackle guard protects shackle from attack

Operation and use:

  • 65MB/15 - 65/25: To secure valuables / goods of lesser value or at a low risk of theft
  • 65/30-60: To secure valuables / goods of medium value or at an average risk of theft
  • 15 - 25 mm: To secure bags, suitcases, jewellery boxes, cash boxes, etc.
  • 30 - 60 mm: To secure chains, doors, gates, cupboards, lockers, tool boxes, cellar windows, sheds, switchboards, etc.

Variants:

  • Sizes: 15, 20, 25, 30, 35, 40, 45, 50, 60 mm
  • Shackles: HB, IB

Technical data:

Art. no.: 08751
Width a [mm]: 60
Horizontal clearance b [mm]: 34
Vertical clearance c [mm]: 35
Shackle diameter d [mm]: 10
Depth e [mm]: 19
Height f [mm]: 91

Variants:

Padlock brass 65/60
Art. no. 08751
Width a [mm]: 60
Level:
Padlock brass 65/20
Art. no. 02318
Width a [mm]: 20
Level:
Padlock brass 65/25
Art. no. 02324
Width a [mm]: 25
Level:
Padlock brass 65/30
Art. no. 02330
Width a [mm]: 30
Level:
Padlock brass 65/40
Art. no. 02337
Width a [mm]: 39
Level:
Padlock brass 65/50
Art. no. 02344
Width a [mm]: 50
Level:
Padlock brass 65/45
Art. no. 02787
Width a [mm]: 45
Level:
Padlock brass 65/35
Art. no. 02833
Width a [mm]: 34.5
Level:
Padlock brass 65/40HB40
Art. no. 04775
Width a [mm]: 39
Level: 		Padlock brass 65/40HB63
Art. no. 04778
Width a [mm]: 39
Level:
Padlock brass 65/50HB80
Art. no. 04781
Width a [mm]: 50
Level: 		Padlock brass 65MB/15
Art. no. 09325
Width a [mm]: 16
Level:
Padlock brass 65IB/40
Art. no. 10756
Width a [mm]: 39
Level: 		Padlock brass 65/30HB60
Art. no. 12294
Width a [mm]: 30
Level:
