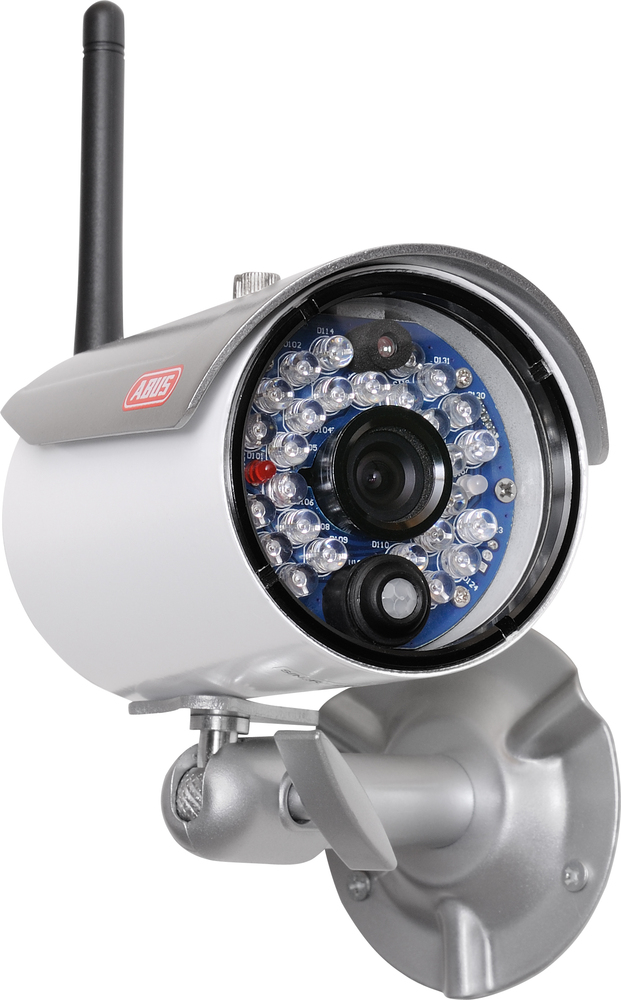

Eycasa Outdoor Camera (Art. no. CASA30500)

Special product features:

  • Wireless outdoor camera for extending an Eycasa system
  • Resolution: VGA, 640 x 480 pixels at 20 frames
  • Secure wireless transition
  • Wireless range of up to 30 meters to the main unit
  • Night vision in close proximity to the camera (IR LEDs)
  • Maximum of 3 wireless cameras per Eycasa main unit
  • Installation in unprotected outdoor area (IP55)
  • Including wall mount

The Eycasa wireless door intercom system can be extended with up to 3 wireless outdoor cameras. Theses are connected to the main unit wirelessly and produce clear images day or night.
Alert thanks to the PIR motion detector
The passive-infrared motion detector in the camera recognizes people who are moving within the surveillance area – even in the dark. The camera captures a movement, a message appears in the Eycasa main unit and the live picture appears on the monitor. In this way, you won't miss anyone who is trying to gain access – even if there isn't a bell (such as, on the terrace, delivery entrance).
Encrypted wireless transmission
Transmitting data to the Eycasa main unit takes place via encrypted digital radio This then saves laying video cables or configuring the WLAN connection – and the transmission is exclusive, confidential and protected from third-parties.
Securing all the entrances to the building
With the use of additional outdoor cameras, you secure other entrances in the the private area near the front door such as terrace, cellar door, garage, etc. When used in the commercial sector, you secure the main entrance, for example, staff and delivery entrance, warehouse, etc.
Restrictions
To operate the wireless outdoor camera you need an Eycasa main unit. The camera cannot be used on its own via WLAN or as a web cam.

Technical data:

Art. no.: CASA30500
Video frequency: 2.4 GHz
Video modulation: FHSS+GFSK
Video data rate: 2 Mbps
Video transmission power: 13.5 dBm
Video sensitivity: -82 dBm
Alarming: PIR Sensor alarm
Connectible devices: Eycasa main unit
Number of IR LEDs: 27 IR LEDs
Resolution: 640 x 480 pixels (VGA)
Image sensor: 1/4" CMOS
Frame rate: 20 fps fps
Width: 120 mm
Focal length: 3,6
Wireless range: 30 (depending on site conditions) * m
Height: 120 mm
Horizontal angle of view: 60 °
IR angle: 90 °
IR range: 8 m
IR cut filter: Yes
Length: 68 mm
Max. operating temperature: -10 – 50 °C
Net weight: 500 g kg
Lens: 3.6 mm mm
PIR angle of view: 60° °
PIR range: 5 m
IP protection class: 66
DC voltage supply: 5 V
Power consumption: Max. 650 mA
Video compression: MPEG-4

Scope of delivery:

  • 1x Eycasa outdoor camera
  • 1x Camera bracket
  • 1x Installation material:
  • 1x Power supply 5VDC / 1A incl. EU-, AU and UK plugs
  • 1x Quickstart manual
