Special product features:

• Door & house wireless video system for watching, speaking, listening and switching
• 3 in 1: Communication, door opener plus video surveillance
• The set includes a video door unit and main unit
• Secure wireless transmission of picture and sound between door and main unit
• Night vision in close proximity to the camera (IR LEDs)

• 3 wireless cameras
• Installation in covered outdoor area (IP54)
• Operated using the bell transformer
• Ideal for retrofitting in existing buildings

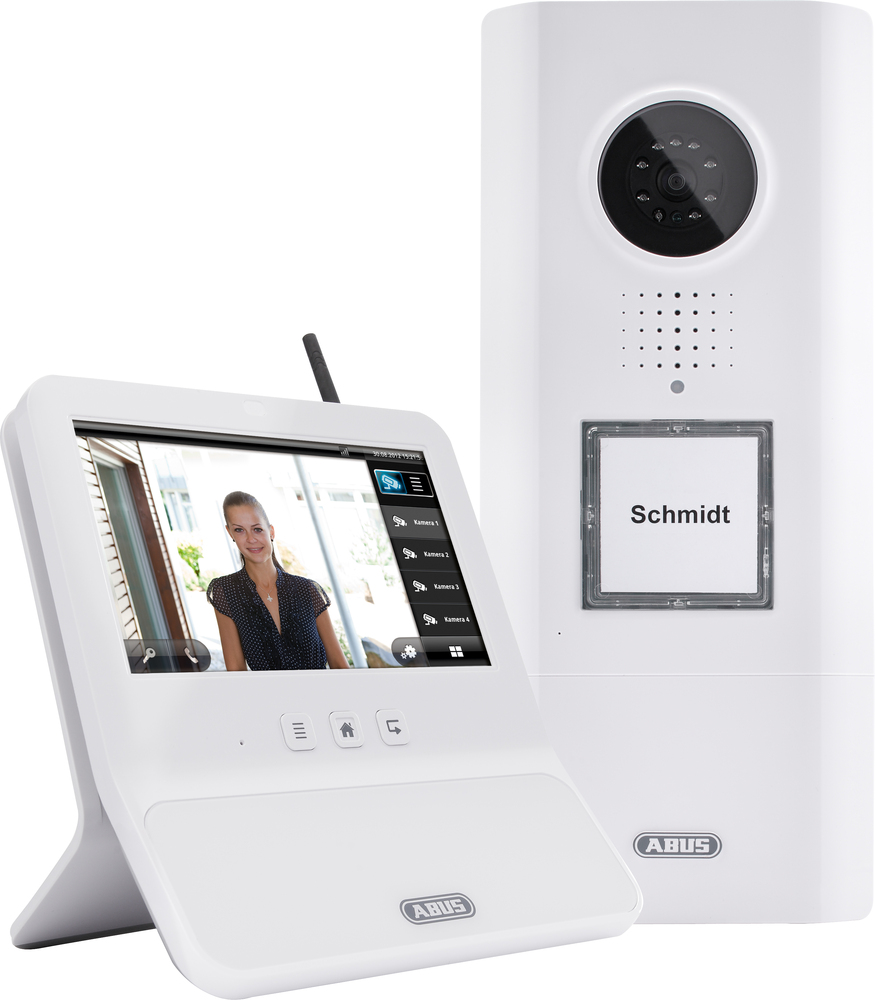

The Eycasa wireless intercom system consists of a video door unit and a main unit. The door unit is a communication unit including door opener function and integrated video camera for operating in the day or night. The main unit offers a high level of convenience and flexible extension options.
Security & convenience in one package: communication, door opener, video surveillance
Eycasa is more than just a two-way communication system: it shows who is at the door and has the option of communicating via the main unit as well as switching the door opener. The system can be extended by 3 other wireless cameras so that other entrances (terrace, cellar doors, garage etc.) near the front door are secured.
Main unit: the convenient switching center with no cables
All the data is gathered in the main unit: On the 7” touchscreen color display, the video picture from the door unit is displayed, moreover the two-way communication function and the door opener on the unit can be switched on. It is easy to operate by hand – the main unit communicates wirelessly with the door unit without any annoying cables in the living room. The unit takes up to 4 cameras, which are shown on the monitor at the same time and can be extended with additional components. It is suitable for mounting on the wall and on a table.
Video door station: easy installation, good for retrofitting in existing buildings
The door unit can be installed horizontally or vertically. The connections of a previous intercom can also be used. The power supply is connected to the existing bell transformer - or a battery can also be used. Apart from this no other cables are necessary – the entire system is based on wireless components.
Can be flexibly extended with additional components
The system grows along with the requirements of the inhabitants. It can be extended by 3 wireless cameras.

Technical data:

Eycasa video door station - CASA30100

Zum Produkt
Technical data

Art. no.:	CASA30100
Installation:	Surface mounting
Video frequency:	2.4 GHz
Video modulation:	FHSS+GFSK
Video data rate:	2 Mbps
Video transmission power:	13.5 dBm
Video sensitivity:	-82 dBm
Audio frequency:	1.9 GHz
Audio modulation:	TMDA
Audio transmission power:	< 20="" dbm="">
Audio sensitivity:	-82 dBm
Audio data rate:	64 Kbps
Proximity key:	Up to 10 keys can be paired
Alarming:	Doorbell signal on main unit
Connectible devices:	Eycasa main unit
Number of IR LEDs:	8 IR LEDs
Resolution:	640 x 480 pixels (VGA)
Orientation:	Horizontal or vertical
Battery type:	6 x 1.5 V AA (CASA30150)
Operating mode:	Permanent power supply or battery-operated
Image sensor:	1/4" CMOS
Frame rate:	20 fps fps
Width:	135 mm
Focal length:	2.5 mm
Wireless range:	30 (depending on the site conditions) 30 m
Height:	315 mm
Horizontal angle of view:	120 °
IR angle:	120 °
IR range:	Approx. 1.5 m
IR cut filter:	No
Length:	32 mm
Loudspeaker:	8 Ohm, 2 W x 1
Max. battery life:	0,5 (when using CASA30150) year(s)
Max. operating temperature:	-10 - +50 °C
Microphone:	Integrated
Net weight:	0,6 kg
Relay outputs:	2 (potential-free, NO)
IP protection class:	IP54
AC voltage supply:	12 – 24 V
DC voltage supply:	12 – 24 V
Power consumption:	Max. 800 mA
Video compression:	MPEG-4

Scope of delivery:

• 1x Eycasa video door station
• 1x Eycasa main unit

Products included:

• 1x Eycasa video door station (CASA30100)
