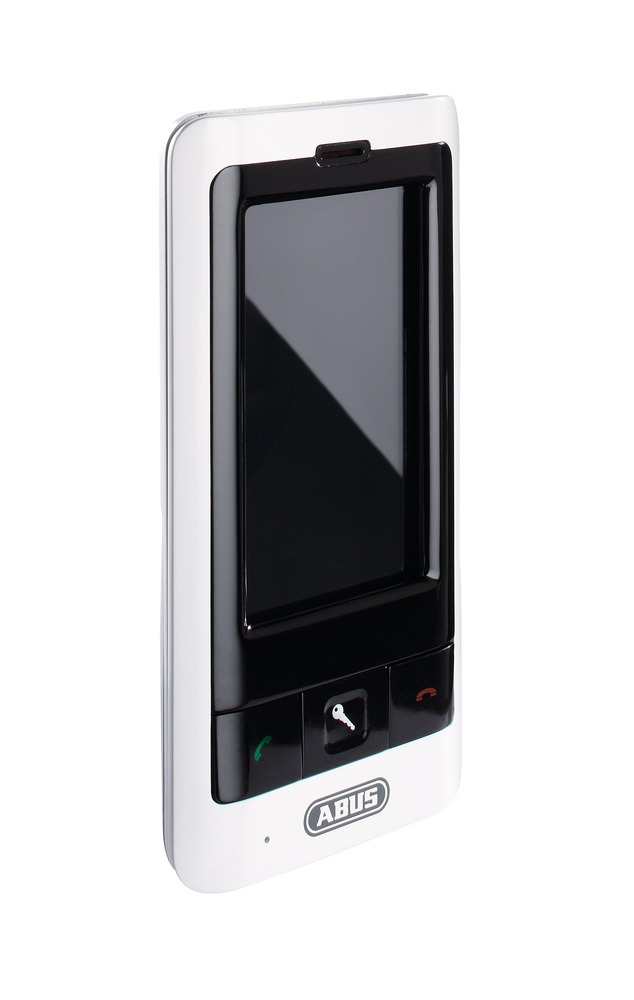

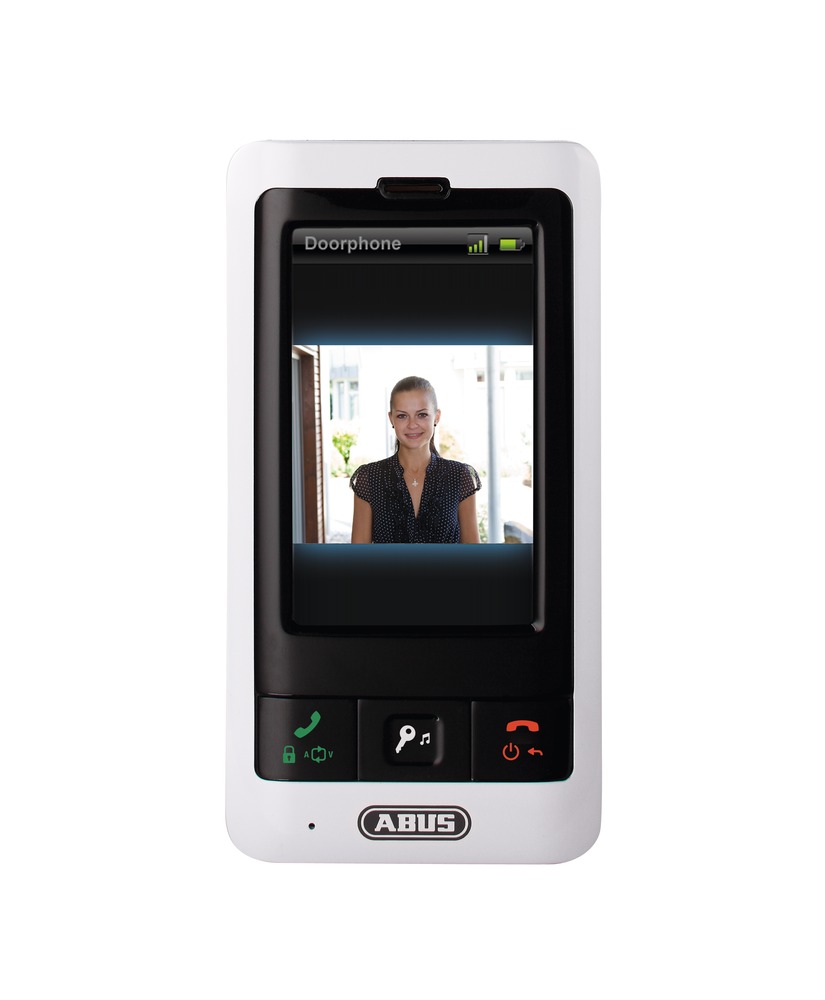

Eycasa Handset (Art. no. CASA30300)

Special product features:

  • Wireless handset with 3.2'' colour monitor for reception of video and audio data of the Eycasa components
  • Wireless range up to 30 m from the main unit, depending on the situation in the building
  • See, speak, listen and switch (door opener) wirelessly
  • Integrated lithium-battery
  • Choice between wall or table mounting using charging cradle
  • Image is automatically frozen when the call is answered
  • Video stream with up to 1 fps

Always mobile with the Eycasa handset
The Eycasa handset offers many functions of the main station: Thanks to the 3.2’’ color monitor you can see persons in front of your door. The user can hear, talk and if necessary open the door with the handset. The video and audio transmission is wireless via DECT (1.9 GHz).
The image is automatically frozen when the call is answered to guarantee a perfect audio transmission.
The wireless range is up to 30 meters from the main unit – depending on the situation in the building. This allows to take the 12.8 x 7.4 cm small handset anywhere with you in the house and garden.
Long standby-times, flexible mounting
Thanks to the integrated lithium-ion battery you have a long standby time. To charge the handset you just have to put it in the docking station. Free-standing installation or wall mounting are possible with the docking station of the handset.
Notes about the product
Currently it is not possible to use the family care camera with the handset.
In one Eycasa system can be integrated one handset.

Technical data:

Art. no.: CASA30300
Video frequency: 1.9 GHz
Video modulation: TDMA
Video data rate: 64 kbps
Video transmission power: < 20="" dbm="">
Video sensitivity: -82 dBm
Audio frequency: 1.9 GHz
Audio modulation: TDMA
Audio transmission power: < 20="" dbm="">
Audio sensitivity: -82 dBm
Audio data rate: 64 Kbps
Number of channels: 5
Resolution: 320 x 240
Mount: Table mount, wall mount
Width: 74 mm
Wireless range: 30 (depending on site conditions) m
Height: 128 mm
Length: 19 mm
Loudspeaker: 8 Ohm, 1W
Max. operating temperature: 0 - 50 °C
Microphone: Integrated
Monitor: 3,2'' touchscreen LCD
Net weight: 0,23 kg
IP protection class: IP30
DC voltage supply: 5 V
Power consumption: Max. 600 mA

Scope of delivery:

  • 1x Eycasa handset
  • 1x Installation material
  • 1x Wall mount bracket
  • 1x Power supply 5V DC / 1.0A incl. EU-, AUS and UK plugs
  • 1x Quick guide

Required accessories:

Eycasa Door Intercom
CASA31000
