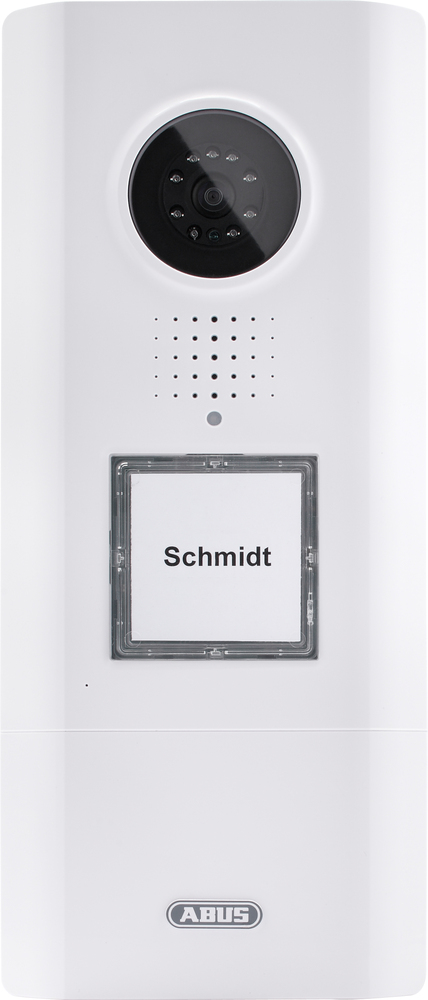

Eycasa video door station (Art. no. CASA30100)

Special product features:

  • Door unit for extending an Eycasa wireless door intercom system
  • 3 in 1: Communication, video image and door opener function
  • Night vision in close proximity to the camera (IR LEDs)
  • Secure wireless transmission of picture and sound to an Eycasa main unit
  • Installation in covered outdoor area (IP55)
  • Operated using the bell transformer
  • Ideal for retrofitting in existing buildings

The Eycasa video door unit is a communication unit including door opener function and video camera. It is the perfect extension to an Eycasa intercom set, for instance, if a second door needs to be secured. Up to 2 door units can be connected for each main unit, i.e. an extra door unit can be added to an intercom set (main unit + 1x door unit).

Security & convenience in one package: Two-way communication, door opener, video surveillance
Eycasa combines speaking and door opening. This way you can see exactly who is at the door and have the option of either speaking or switching the door opener using a main unit.

Easy installation, ideal for retrofitting in existing buildings

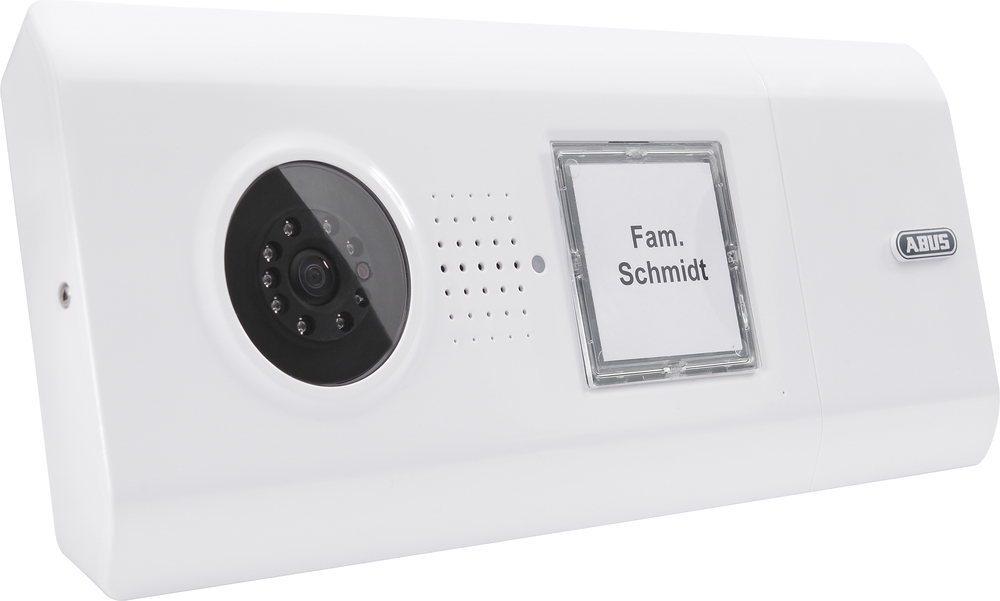

The door unit can be installed horizontally or vertically. The connections of a previous intercom can also be used. The power supply is connected to the existing bell transformer - or a battery can also be used. Apart from this, no other cable is necessary – the entire system is based on wireless components.

Restrictions
To operate the door unit you need an Eycasa main unit. The door unit cannot be operated on its own.

Technical data:

Art. no.: CASA30100
Installation: Surface mounting
Video frequency: 2.4 GHz
Video modulation: FHSS+GFSK
Video data rate: 2 Mbps
Video transmission power: 13.5 dBm
Video sensitivity: -82 dBm
Audio frequency: 1.9 GHz
Audio modulation: TMDA
Audio transmission power: < 20="" dbm="">
Audio sensitivity: -82 dBm
Audio data rate: 64 Kbps
Proximity key: Up to 10 keys can be paired
Alarming: Doorbell signal on main unit
Connectible devices: Eycasa main unit
Number of IR LEDs: 8 IR LEDs
Resolution: 640 x 480 pixels (VGA)
Orientation: Horizontal or vertical
Battery type: 6 x 1.5 V AA (CASA30150)
Operating mode: Permanent power supply or battery-operated
Image sensor: 1/4" CMOS
Frame rate: 20 fps fps
Width: 135 mm
Focal length: 2.5 mm
Wireless range: 30 (depending on the site conditions) 30 m
Height: 315 mm
Horizontal angle of view: 120 °
IR angle: 120 °
IR range: Approx. 1.5 m
IR cut filter: No
Length: 32 mm
Loudspeaker: 8 Ohm, 2 W x 1
Max. battery life: 0,5 (when using CASA30150) year(s)
Max. operating temperature: -10 - +50 °C
Microphone: Integrated
Net weight: 0,6 kg
Relay outputs: 2 (potential-free, NO)
IP protection class: IP54
AC voltage supply: 12 – 24 V
DC voltage supply: 12 – 24 V
Power consumption: Max. 800 mA
Video compression: MPEG-4

Scope of delivery:

  • 1x Eycasa video door station
  • 1x Installation material
  • 1x Quickguide
