Terxon SX Full Kit with dialer
||||

Terxon SX Full Kit With Dialer (Art. no. AZ4350)

Special product features:

  • Optimal basic equipment for effective protection with quiet alarm
  • Unbeatable value for money
  • VdS motion detectors included
  • PSTN dialer and indoor sounder included

The Terxon SX is the burglary alarm system made by ABUS Security-Center. The Terxon SX Full Kit with dialer contains all necessary components for effective, full-fledged protection. Changing the detectors and extending the system is possible at any time, as needed. The Terxon SX Full Kit with dialer provides you with all advantages of the Terxon SX. The system has 8 freely programmable zones for 8 wired detectors. Zone 9 is the tamper zone. Only NC detectors can be connected. The type of wiring is left up to you. The indoor sounder included in this kit has its own reserved zone on the motherboard. In addition to the alarm center, the heart of your system, the LCD control unit is also part of the full kit. The system can be programmed via the control unit and may be activated or deactivated via code or chip key. The connection is made via 4-wire bus wiring.

Technical data:

Art. no.: AZ4350
Dimensions: (WxHxD) 240x240x85 mm
Connections: 230 V screw terminal, loudspeaker, zone screwing terminal, transistor outputs, 13.8 V screw terminal
Number of control devices: 4
Number of control panels: 4
Number of users: 16
Number of wired zones: 8
Number of tamper zones: 1
Display: Two-line LCD alphanumerical display
Outputs: 3x transistors total, max. 500 mA, 8 x 50 mA, freely programmable
Battery type: 12V DC, 7.0 Ah lead rechargeable battery
Width: 240 mm
Event log: 250
Housing material: Alarm centre: Metal, control unit: ABS
Height: 240 mm
Integrated siren: Buzzer in control panel
Length: 85 mm
Max. number of control panels: 4
Max. operating temperature: 40 °C
Max. battery charging time: 24 h
Max. humidity: 75 %
Max. run time on backup power: 12 h
Min. operating temperature: -10 °C
Net weight: 3.3 kg
Backup power supply: Yes (battery optional)
Configuration (1): Via control panel
Tamper lines: 2
Tamper monitoring: Yes
Switching outputs: 3
Security level: 2
Fuse: 230 V / 250 mA; 12 V: 1 A fast; rechargeable battery: 2 A fast
Voltage monitoring: Yes
AC voltage supply: 230 V
OSD language: 11 selectable languages
Power consumption: 200 mA
Partitions/surveillance partitions: 4
Environmental class: II
Certifications: INCERT, VSÖ, F&P, NCP
Zone closure: NC, DEOL

Terxon SX Alarm Control Panel - AZ4000


Zum Produkt
Technical data
Art. no.: AZ4000
Dimensions: (WxHxD) 240x240x85 mm
Connections: 230 V screw terminal, 13.8 V screw terminal, loudspeaker, zone-screw terminal, 11 x switching outputs
Number of control panels: 4
Number of users: 16
Number of wired zones: 8
Number of tamper zones: 1
Display: Two-line LCD alphanumerical display
Battery type: 12V DC, 7.0 Ah lead rechargeable battery
Width: 240 mm
Event log: 250
Extensible (hybrid): No
Remote configuration: No
Housing material: Alarm centre: Metal, control unit: ABS
Height: 240 mm
Integrated siren: Buzzer in control panel
Communication/alarming: Only compatible via external dialer: AZ6301, AZ6302
Length: 85 mm
Max. number of control panels: 4
Max. operating temperature: 40 °C
Max. battery charging time: 24 h
Max. humidity: 75 %
Max. run time on backup power: 12 h
Min. operating temperature: -10 °C
Net weight: 2.45 kg
Backup power supply: Yes (battery optional)
Configuration (1): Via control panel
Tamper lines: 2
Tamper monitoring: Yes
Switching outputs: 3 x 500 mA transistors, 8 x 50 mA transistors, freely programmable
Security level: 2
Fuse: 230 V / 250 mA; 12 V: 1 A fast; battery: 2 A fast
Voltage monitoring: Yes
AC voltage supply: 230 V
OSD language: 11 selectable languages
Power consumption: 200 mA
Partitions/surveillance partitions: 4 (1 main area and 3 sub-areas)
Environmental class: II
Certifications: INCERT, F&P, NCP
Zone closure: NC, DEOL

Wired NC opening detector (white) - FU7350W


Zum Produkt
Technical data
Art. no.: FU7350W
Dimensions: (WxHxD) 11x12x48 mm
Connections: NC, max. contact capacity 100 V/5 W/0.05 A
Width: 11 mm
Type of detection: Magnetic field measurement
Stray-field protection: No
Housing material: ABS
Height: 12 mm
Cable type: 2-core
Cable length: 2 m
Length: 48 mm
Installation location: Integration / surface mounting
Sensor type: Read contact

Terxon PSTN Dialer - AZ6301


Zum Produkt
Technical data
Art. no.: AZ6301
Dimensions: (WxHxD) 150x115x30 mm
Connections: Screw terminal for PSTN and power supply
Number of voice messages: 4
Display: Illuminated segment display
Type of inputs: Positive/negative controllable inputs (5-28 V DC)
Outputs: 1 transistor output (OP), negative switching, max. current output 100 mA / 12 V DC per output
Width: 150 mm
Inputs: 4
Remote access: Yes
Housing material: ABS
Height: 115 mm
Length: 30 mm
Max. operating temperature: 55 °C
Min. operating temperature: -10 °C
Net weight: 0.36 kg
Configuration (1): Menu
Tamper monitoring: Yes
IP protection class: 32
Voltage monitoring: Yes
DC voltage supply: 12 V
Power consumption: 35 mA
Telephone number storage spaces: 4
Transmission method: Language
Transmission path: PSTN

Surface Mount Key-switch - SE1000


Zum Produkt
Technical data
Art. no.: SE1000
Dimensions: (WxHxD) 117x85x42 mm
Width: 117 mm
Housing material: ABS
Height: 87 mm
Length: 55 mm
Power consumption: 0,02
Installation location: Surface fitting
Tamper monitoring: Yes
IP protection class: 55
DC voltage supply: 10-15 V
Status display: Yes (2 LEDs)
Power consumption: 2 mA

Indoor Siren - SG1250


Zum Produkt
Technical data
Art. no.: SG1250
Dimensions: (WxHxD) 155x100x48 mm
Width: 155 mm
Housing material: ABS
Height: 100 mm
Length: 48 mm
Power consumption: 3,6
Illuminant: LED
Max. battery life: 50 year(s)
Min. operating temperature: -10 °C
Installation location: Indoors
Tamper monitoring: Yes
Sound pressure: 90/110 dB
IP protection class: 54
DC voltage supply: 12 V
Power consumption: 300 mA

Xevox Profi VdS Motion Detector - BW8010


Zum Produkt
Technical data
Art. no.: BW8010
Dimensions: (WxHxD) 60x106x47 mm
Alarm memory: Yes
Connections: NC, 50 mA, 24 V DC
Display: Yes
Width: 60 mm
Type of detection: Heat detection
Adjustable sensitivity: Yes
Detection range of detector (m): 15x15 m
Housing material: ABS
Height: 106 mm
Pulse selector: Yes
Length: 47 mm
Power consumption: 0,12
Max. operating temperature: 55 °C
Installation location: Wall
Net weight: 0.08 kg
Tamper monitoring: NC, 100 mA, 24 V DC
Sensor type: Dual PIR
DC voltage supply: 12 V
Status display: Yes
Power consumption: 10 mA
Creep zone: Yes
White light filter: Yes
Certifications: VdS B, VSÖ

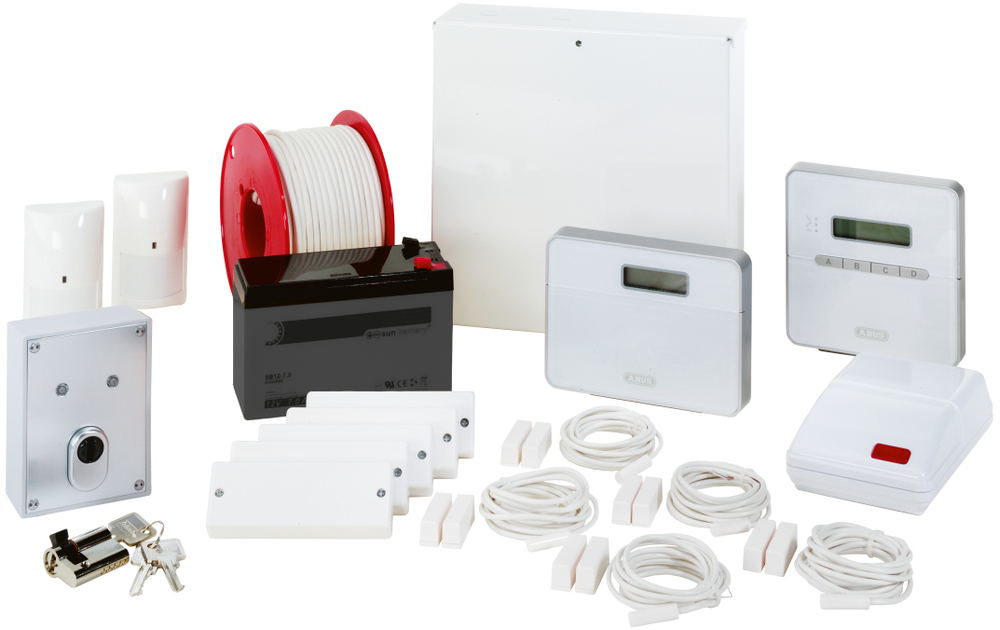

Scope of delivery:

  • 1x Terxon SX Alarm Control Panel
  • 1x VdS battery, 12 V, 7.0 Ah
  • 5x Opening detector, 2 m, 2-core, brown
  • 1x Terxon PSTN dialer
  • 1x Key switch incl. ABUS quality cylinder
  • 1x Inside siren
  • 1x Alarm cable, 8-core, 50 m
  • 2x Xevox Profi VdS motion detector
  • 5x Terminal distributor flush mount, 16-pins, white

Products included:
