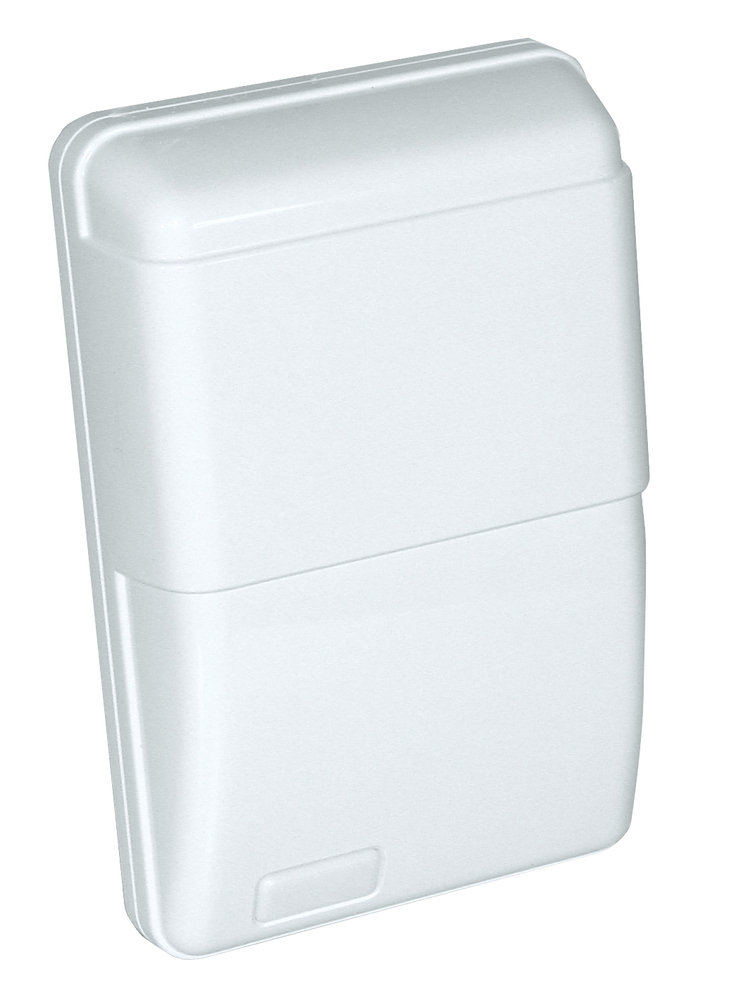

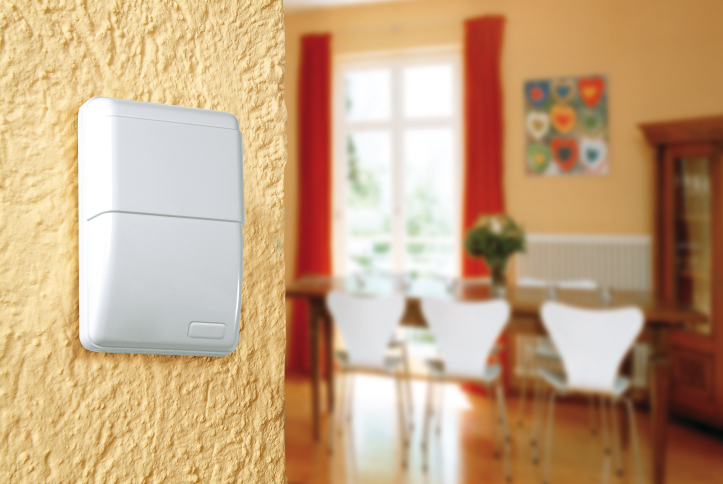

Inside siren front view right Inside siren Example of application
|||||

Indoor Siren (Art. no. SG1250)

We expressly recommend having this product installed by a certified specialist.

Special product features:

  • LED to display armed/disarmed status
  • Simple, inconspicuous design
  • Selectable volume
  • Low power consumption
  • Impact-resistant housing monitored for tampering
  • Sound pressure: 90 dB (A) – low, 110 dB (A) – high
  • Protection class: IP54

The inside siren is installed inside your building. It is the last and critical module of a complete alarm chain. The inside siren is an acoustic signal generator. You have a choice between two alarm modes in this case: A 110 dB alarm and a 90 dB acknowledgement tone. Both signals are felt to be extremely loud due to the high acoustic pressure and the signal frequency. The remotely activated LED of the alarm siren can be used to detect the status of the alarm panel (armed/disarmed). The rugged plastic housing (IP 54) of the acoustic signal generator is protected against sabotage by a wall and cover contact. The inside siren is powered with 12 V.

Technical data:

Art. no.: SG1250
Dimensions: (WxHxD) 155x100x48 mm
Width: 155 mm
Housing material: ABS
Height: 100 mm
Length: 48 mm
Power consumption: 3,6
Illuminant: LED
Max. battery life: 50 year(s)
Min. operating temperature: -10 °C
Installation location: Indoors
Tamper monitoring: Yes
Sound pressure: 90/110 dB
IP protection class: 54
DC voltage supply: 12 V
Power consumption: 300 mA

Scope of delivery:

  • 1x Indoor siren

General Downloads:

Additional Information:

Signalgeber

Sounder

At the end of the alarm chain, alarm signaling devices ensure that the intruder gives up and that help comes quickly. Visibly mounted alarm signaling devices thwart many burglaries just through deterrence. Whether glaring Xenon strobe light or a loud siren – these alarm signaling devices cause intruders to flee. ...
