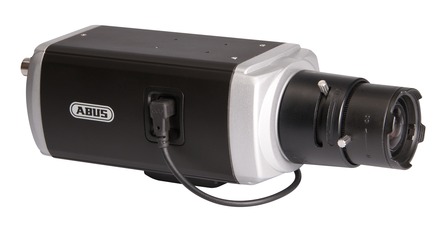

WDR Day/night HD 1080p network camera front view right
Update
||||||

WDR Day/Night HD 1080p Network Camera (Art. no. TVIP52502)

Special product features:

  • HD 1080p resolution: 1920 × 1080 @ 25 fps
  • Camera for use under extreme backlighting conditions
  • Day/night switching with electromechanical IR swivel filter (ICR)
  • Analogue video output for service
  • Power over Ethernet (PoE)
  • ONVIF compatible

High resolution day/night network camera with WDR function
The WDR day /night network camera with a resolution of 1080 pixels provides detailed and sharp pictures in HD. Because of WDR function, the camera is ideal for use at very high contrast ratios (for example strong light incidence through a window with a dark object in the front).
Using the CS mount, you can integrate your chosen lens from our product range.
Please note: Lenses are not included in the scope of delivery.
Furthermore, this camera can be used in weatherproof housing for outdoor surveillance.
Thanks to the progressive scan 1/3'' CMOS sensor, the images are transmitted in real-time (25 images/sec). Compression is made using highly-efficient H.264 or Motion JPEG. Dual-stream technology allows the output of two parallel live streams over the Internet or on mobile devices, with the image quality adjusted depending on the device and bandwidth (H.264, MPEG-4, M-JPEG).
With additional analog output for Services
The additional analog video output makes it easy to set up the camera equipment using a test monitor. Quick installation thanks to Power over Ethernet (PoE). The camera conforms to the official standards of ONVIF for Network Video products.

Technical data:

Art. no.: TVIP52502
ONVIF: Profile S
Dimensions: (WxHxD) 72 x 65 x 141 mm
Alarm input (NO/NC): 1
Alarming: E-Mail/FTP/relay output
Number of streams: 2
Audio: 1 x Audio In, 1 x Audio Out
Resolution modes: 1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 352 x 288, 176 x 144 pixel
Motion detection: Yes
Image sensor: 1/3" Progressive Scan CMOS
Pixels (effective): 1920(H) x 1080(V) pixel
Pixels (total): 2048(H) x 1536(V) pixel
Frame rate: MJPEG: 25 frames/s @ 1920 x 1080, MPEG-4: 25 frames/s @ 1920 x 1080, H.264: 25 frames/s @ 1920 x 1080 fps
Width: 72 mm
Digital zoom: 10 x
Dynamic range (WDR): 96 dB
Electronic shutter: Auto
Backlight compensation: WDR, BLC
Housing material: Metal
Height: 65 mm
Camera outputs: 1 x FBAS, 1V s-s, 75 Ohm (BNC)
Camera type: Day/night
Length: 141 mm
Max. resolution @ frame rate: 1920 x 1080 @ 25 fps
Max. operating temperature: 50 °C
Max. humidity: 75 %
Microphone: No
Min. operating temperature: -10 °C
Minimum illumination (color): 0,5
Minimum illumination (IR): 0
Net weight: 0.64 kg
LAN network access: RJ45
Network camera protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS
Lens: CS mount for lens, DC connector mm
PoE: 802.3af
Private zones: 4
Noise reduction: DNR
Relay output: 1
IP protection class: 34
Software: ABUS VMS, MSN Messenger, Internet Explorer 6
DC voltage supply: 12 V
Language of instructions: DE, UK, FR, NL, DK, PL, RU
OSD language: DE, UK, FR, NL, DK, PL, RU
Power consumption: 420 mA
Day/night switching: ICR/Color/B/W
Encryption: HTTPS
Video output: 1 x FBAS, 1V s-s, 75 Ohm (BNC)
Video compression: H.264, MPEG-4, MJPEG
White balance: Yes
Certifications: CE, RoHS, C-Tick

Scope of delivery:

  • 1x Network camera
  • 1x Power supply unit
  • 1x 1-meter network cable
  • 1x VMS Express software
  • 1x Installation CD
  • 1x User guide (on CD)
  • 1x Quickstart manual

Software:

  • Installation Software

    • ABUS VMS Websoftware v7.7.12 Win 32/64-Bit
      ABUS VMS Software

      History
      Version: 7.7.12
      Release Date: 30.09.2014
      Filename: Software ABUS VMS Basic_Professional_Enterprise, Version 7.7.12, Software ABUS VMS Enterprise Demoversion, Version 7.7.12

      Optimizations:

      1. Faster search results within new version of ABUS IP-Installer
      2. Solved issue for audio playback when using Windows 8
      3. Automatic audio pre-configuration of connected ABUS IP cameras for usage with VMS software
      4. Audio playback enabled for reader software (database export)
      5. Memory utilization for TV3300-TV3310 improved
      6. Solved issue when launching VMS without any connected network interface
      7. Video streaming for AXIS network cameras corrected
      8. Fixed problem on launching reader software (database export)
      9. Solved issue on fast open/close masking settings within configuration menu



      Compatible network cameras:

      TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
      TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
      TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
      TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
      TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100, TV7203, TV7204, TV7206,
      TV7220, TV7221, TV7222, TV7223, TV7230, TV7240
    • v.1.0
      MAC-OSX Plug-in compatible for:
      • TVVR35001, TVVR35011, TVVR45021, TVVR45030, TVVR60011, TVVR60021
      • TVVR41200, TVRR41210, TVVR41220
      • TVHD80000, TVHD80010, TVHD80100, TVHD80110, TVHD80120
      • TVIP52502, TVIP72000, TVIP81000, TVIP81100, TVIP82000, TVIP82100
      • TVIP11560, TVIP41500, TVIP61500, TVIP61550

      History
      Version: v1.0
      Release date: 03.11.2014
      File name: DVR_NVR_IPC_MAC_OSX_Plug-In_v.1.0_11-2014.zip
      Description:
      The plug-in enables to display H.264/MPEG-4 video-streams for live view and remote playback via the Safari browser.

      Notice:
      MAC OSX browser plug-in compatible for MAC OSX 10.9 (Mavericks) and 10.10 (Yosemite).
    • v8.0.22
      Version: V8.0.22
      Release date: 08.12.2014
      Filename:IP-Installer-Setup.exe (ABUS_IP-Installer_v8.0.22.zip)

      Changes:
      1. New design of user interface
      2. Full-text search function for easy filtering the result list
      3. Direct modification of IP settings via IP-Installer:
      TVVR35011, TVVR45021, TVVR45030,TVVR60011,TVVR60021,TVHD80000,TVHD80010,TVHD80100,TVHD80110,TVHD80120,
      TVVR41200,TVVR41210,TVVR41220,TVVR36000, TVVR30004,TVVR35010,TVVR45020,TVVR60010,TVVR60020,
      TVVR50010,TVVR50011,TVVR50020,TVVR50021,TVVR41100,TVVR41110,TVVR41120,TVVR40000,TVVR40010,TVVR40020,TVVR40021,
      TVVR20000, TVVR20001,TVVR30000,TVVR30001,TVVR30002,TVVR30003
      TVIP11560,TVIP41500,TVIP52502,TVIP61500,TVIP61550,TVIP70000,TVIP72000,TVIP81000,TVIP81100,TVIP82000,TVIP82100,
      TVIP86300, TVIP86900,FUAA11000,FUAA50000
      4. Network search in all subnet’s within local network:
      TVVR35011, TVVR45021, TVVR45030,TVVR60011,TVVR60021,TVHD80000,TVHD80010,TVHD80100,TVHD80110,TVHD80120,
      TVVR41200,TVVR41210,TVVR41220,TVVR36000, TVVR30004,TVVR35010,TVVR45020,TVVR60010,TVVR60020,
      TVVR50010,TVVR50011,TVVR50020,TVVR50021,TVVR41100,TVVR41110,TVVR41120,TVVR40000,TVVR40010,TVVR40020,TVVR40021,
      TVVR20000, TVVR20001,TVVR30000,TVVR30001,TVVR30002,TVVR30003
      TVIP11560,TVIP41500,TVIP52502,TVIP61500,TVIP61550,TVIP70000,TVIP72000,TVIP81000,TVIP81100,TVIP82000,TVIP82100,
      TVIP86300, TVIP86900
      5. Language settings of local operating system will be used by the application

      Improvements:
      1. Network search speed and detection of firmware version further optimized

  • Recording Software

    • ABUS VMS Express v7.8.14 Win 32/64-Bit
      Version: 7.8.14
      Release Date: 08.12.2014
      Filename: Software ABUS VMS Express, Version 7.8.14



      Changes:

      1. Added support for hemispheric camera TVIP86300 and TVIP86900. Motion detection support only available for camera channel1.
      Please note: Only when setting camera to "real-time mode deactivated", all video streams can be accessed at the same time.

      2. Error message can be disabled via system settings menu "miscellaneous".


      Compatible network cameras:

      TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
      TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
      TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
      TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
      TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100, TVIP86300, TVIP86900
    • ABUS VMS Basic-Professional-Enterprise v7.8.14 Win 32/64-Bit
      Version: 7.8.14
      Release Date: 08.12.2014
      Filename: Software ABUS VMS Basic_Professional_Enterprise, Version 7.8.14, Software ABUS VMS Enterprise Demoversion, Version 7.8.14

      Changes:

      1. Added support for hemispheric camera TVIP86300 and TVIP86900. Motion detection support only available for camera channel1.
      Please note: Only when setting camera to "real-time mode deactivated", all video streams can be accessed at the same time.
      2. Adding support for installer logo (PNG/JPG, 128x64px) via system settings. The software needs to be restarted after adding
      a new logo.


      Compatible network cameras:

      TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
      TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
      TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
      TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
      TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100,
      TVIP86300, TVIP8600
    • ABUS VMS Enterprise Demo v7.5.2408 Win 32/64-Bit
      ABUS VMS Software

      History
      Version: 7.7.12
      Release Date: 30.09.2014
      Filename: Software ABUS VMS Basic_Professional_Enterprise, Version 7.7.12, Software ABUS VMS Enterprise Demoversion, Version 7.7.12

      Optimizations:

      1. Faster search results within new version of ABUS IP-Installer
      2. Solved issue for audio playback when using Windows 8
      3. Automatic audio pre-configuration of connected ABUS IP cameras for usage with VMS software
      4. Audio playback enabled for reader software (database export)
      5. Memory utilization for TV3300-TV3310 improved
      6. Solved issue when launching VMS without any connected network interface
      7. Video streaming for AXIS network cameras corrected
      8. Fixed problem on launching reader software (database export)
      9. Solved issue on fast open/close masking settings within configuration menu



      Compatible network cameras:

      TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
      TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
      TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
      TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
      TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100, TV7203, TV7204, TV7206,
      TV7220, TV7221, TV7222, TV7223, TV7230, TV7240

  • Firmware

    • V5.0.5
      Firmware compatible to: TVIP52502

      History

      Version: V5.0.5
      Release date: 16.12.2014
      Filename:TVIP52502_V5.0.5.dav (TVIP52502_V5.0.5.zip)

      Changes:
      1. Improved resolution for sub stream (4CIF). Better image quality in combination with ABUS NVR and multi view display mode.

Required accessories:

DC 2-Pin Adapter
TVAC35800
