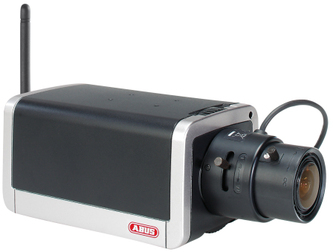

Day/night 1.3 megapixel WLAN network camera (Art. no. TVIP51550)

Description
Technical data
Scope of delivery
Downloads

Special product features:

HD 1.3 MP resolution: 1280 × 1024 @ 15 fps
Simultaneous transmission of MPEG4, MJPEG, H.264 and 3GPP video data (quad stream)
Integrated motion and sound sensors
Video data storage on SD card and network drives

Back focus adjustment
2-way audio
2 × alarm inputs / 2 × relay outputs
ONVIF compatible

Reliable IP video surveillance with megapixel resolution: you’ll see every detail even at great distances. With 1.3 million pixels (1280 x 1024), the range for detection/identification doubles to 12 m / 6 m compared to VGA resolution! During the day the camera provides color images; under 0.5 lux, it switches to B/W mode. You use a WLAN interface to feed video images into the network and view them in a browser, in the supplied VMS software, or in MSN Messenger. A special feature of the camera series: an integrated SD card slot that allows you to save image data on a 16 GB SD card (not included). The advantage: you don’t lose any data if the network fails. Thanks to progressive scan 1/4" CMOS technology, the images are transmitted in real time as sharp full-screen images. The images are compressed in a highly efficient manner using H.264, MPEG-4, or MJPEG. Quad stream allows the output of four parallel live streams over the Internet or on mobile devices, with the image quality adjusted depending on the device and bandwidth (H.264, MPEG-4, MJPEG, 3GPP). Using the CS mount, you can integrate your chosen lens from our broad product range (with additional 10x digital zoom). The ELC, BLC, AGC, and AWB functions ensure the best possible images in all lighting conditions. And alarm notification is sent via e-mail when motion is detected by the built-in motion sensor, and a recording device (PC, hard drive) is automatically triggered for recording thanks to the network storage function. If you connect an external microphone, the camera can also react to noise.

Technical data:

Art. no.:	TVIP51550
Dimensions:	(WxHxD) 68 x 59 x 120 mm
Alarm input (NO/NC):	2
Alarming:	E-Mail / FTP / HTTP notification / relay output / network drive / SD card
Number of streams:	4 (MJPEG, MPEG-4, H.264, 3GPP)
Audio:	Audio output (Speaker Out), audio input, 2-way audio, audio recognition
Resolution modes:	1280 x 1024, 1280 x 720, 640 x 480, 320 x 240, 160 x 120 pixel
Motion detection:	3 zones
Image sensor:	1/4" progressive scan CMOS sensor
Pixels (effective):	1280(H) x 1024(V) pixel
Pixels (total):	1280(H) x 1024(V) pixel
Frame rate:	MJPEG: 15 pictures/s @ 1280 x 1024, MJPEG: 25 pictures/s @ 640x480, MPEG-4: 15 pictures/s @ 1280 x 1024, MPEG-4: 25 pictures/s @ 640x480, H.264: 15 pictures/s @ 1280 x 1024, H.264: 25 pictures/s @ 640x480 fps
Width:	68 mm
Digital zoom:	10
Electronic shutter:	1 ~ 1/7780 seconds
Backlight compensation:	BLC
Height:	59 mm
Camera type:	Day/night
Length:	120 mm
Max. resolution @ frame rate:	1280 x 1024 @ 15 fps
Max. operating temperature:	50 °C
Min. operating temperature:	0 °C
Minimum illumination (color):	0,5
Minimum illumination (IR):	0
LAN network access:	RJ45
WLAN network access:	802.11 b/g
Network camera protocols:	Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP, 3GPP/ISMA RTSP
Lens:	CS mount for lens, DC connector mm
Relay output:	2
IP protection class:	34
Software:	ABUS VMS, Mozilla Firefox, Internet Explorer 6, Safari 3
DC voltage supply:	12 V
Storage medium:	SDHC 32 GB
Power consumption:	420 mA
Day/night switching:	IR cut can be swivelled electromagnetically
Encryption:	HTTPS SSLv3, WEP 64/128bit, WPA/WPA2-PSK
Amplifier control:	0-9
Video compression:	H.264, MPEG-4, MJPEG
White balance:	Yes
Certifications:	CE, RoHS, Reach

Scope of delivery:

1x Network camera
1x Power supply unit
1x 1-meter network cable
1x WLAN antenna
1x VMS Express software
1x Installation CD
1x User guide (on CD)
1x Quickstart manual
1x Wall/ceiling mount incl. installation material

General Downloads:

Additional Information:

Software:

Installation Software
- ABUS VMS Websoftware v7.7.12 Win 32/64-Bit

  ABUS VMS Software

  History
  Version: 7.7.12
  Release Date: 30.09.2014
  Filename: Software ABUS VMS Basic_Professional_Enterprise, Version 7.7.12, Software ABUS VMS Enterprise Demoversion, Version 7.7.12

  Optimizations:

  1. Faster search results within new version of ABUS IP-Installer
  2. Solved issue for audio playback when using Windows 8
  3. Automatic audio pre-configuration of connected ABUS IP cameras for usage with VMS software
  4. Audio playback enabled for reader software (database export)
  5. Memory utilization for TV3300-TV3310 improved
  6. Solved issue when launching VMS without any connected network interface
  7. Video streaming for AXIS network cameras corrected
  8. Fixed problem on launching reader software (database export)
  9. Solved issue on fast open/close masking settings within configuration menu

  Compatible network cameras:

  TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
  TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
  TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
  TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
  TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100, TV7203, TV7204, TV7206,
  TV7220, TV7221, TV7222, TV7223, TV7230, TV7240
- ABUS VMS Websoftware V6.11.1963 Win 32/64-Bit

  ABUS VMS Software
  History
  Version: 6.11.1963
  Release Datum: 02.11.2011
  Info:
  32 Bit + 64 Bit Version
  For free with all ABUS Security-Center network cameras and 4 to 8 channel PCI cards
  Changes:
  Supports the network camera TVIP62000
  Several runtime errors solved for network cameras
  Direct access for ABUS network cameras via the management system is now independent of the http port (default port 80)
- ABUS VMS Plugin V 510
- v8.0.22

  Version: V8.0.22
  Release date: 08.12.2014
  Filename:IP-Installer-Setup.exe (ABUS_IP-Installer_v8.0.22.zip)

  Changes:
  1. New design of user interface
  2. Full-text search function for easy filtering the result list
  3. Direct modification of IP settings via IP-Installer:
  TVVR35011, TVVR45021, TVVR45030,TVVR60011,TVVR60021,TVHD80000,TVHD80010,TVHD80100,TVHD80110,TVHD80120,
  TVVR41200,TVVR41210,TVVR41220,TVVR36000, TVVR30004,TVVR35010,TVVR45020,TVVR60010,TVVR60020,
  TVVR50010,TVVR50011,TVVR50020,TVVR50021,TVVR41100,TVVR41110,TVVR41120,TVVR40000,TVVR40010,TVVR40020,TVVR40021,
  TVVR20000, TVVR20001,TVVR30000,TVVR30001,TVVR30002,TVVR30003
  TVIP11560,TVIP41500,TVIP52502,TVIP61500,TVIP61550,TVIP70000,TVIP72000,TVIP81000,TVIP81100,TVIP82000,TVIP82100,
  TVIP86300, TVIP86900,FUAA11000,FUAA50000
  4. Network search in all subnet’s within local network:
  TVVR35011, TVVR45021, TVVR45030,TVVR60011,TVVR60021,TVHD80000,TVHD80010,TVHD80100,TVHD80110,TVHD80120,
  TVVR41200,TVVR41210,TVVR41220,TVVR36000, TVVR30004,TVVR35010,TVVR45020,TVVR60010,TVVR60020,
  TVVR50010,TVVR50011,TVVR50020,TVVR50021,TVVR41100,TVVR41110,TVVR41120,TVVR40000,TVVR40010,TVVR40020,TVVR40021,
  TVVR20000, TVVR20001,TVVR30000,TVVR30001,TVVR30002,TVVR30003
  TVIP11560,TVIP41500,TVIP52502,TVIP61500,TVIP61550,TVIP70000,TVIP72000,TVIP81000,TVIP81100,TVIP82000,TVIP82100,
  TVIP86300, TVIP86900
  5. Language settings of local operating system will be used by the application

  Improvements:
  1. Network search speed and detection of firmware version further optimized
Recording Software
- ABUS VMS Express v7.8.14 Win 32/64-Bit

  Version: 7.8.14
  Release Date: 08.12.2014
  Filename: Software ABUS VMS Express, Version 7.8.14

  Changes:

  1. Added support for hemispheric camera TVIP86300 and TVIP86900. Motion detection support only available for camera channel1.
  Please note: Only when setting camera to "real-time mode deactivated", all video streams can be accessed at the same time.

  2. Error message can be disabled via system settings menu "miscellaneous".

  Compatible network cameras:

  TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
  TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
  TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
  TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
  TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100, TVIP86300, TVIP86900
- ABUS VMS Express V6.11.1963 Win 32/64-Bit

  ABUS VMS Software
  History
  Version: 6.11.1963
  Release Datum: 02.11.2011
  Info:
  32 Bit + 64 Bit Version
  For free with all ABUS Security-Center network cameras and 4 to 8 channel PCI cards
  Changes:
  Supports the network camera TVIP62000
  Several runtime errors solved for network cameras
  Direct access for ABUS network cameras via the management system is now independent of the http port (default port 80)
- ABUS VMS Basic-Professional-Enterprise v7.8.14 Win 32/64-Bit

  Version: 7.8.14
  Release Date: 08.12.2014
  Filename: Software ABUS VMS Basic_Professional_Enterprise, Version 7.8.14, Software ABUS VMS Enterprise Demoversion, Version 7.8.14

  Changes:

  1. Added support for hemispheric camera TVIP86300 and TVIP86900. Motion detection support only available for camera channel1.
  Please note: Only when setting camera to "real-time mode deactivated", all video streams can be accessed at the same time.
  2. Adding support for installer logo (PNG/JPG, 128x64px) via system settings. The software needs to be restarted after adding
  a new logo.

  Compatible network cameras:

  TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
  TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
  TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
  TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
  TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100,
  TVIP86300, TVIP8600
- ABUS VMS Basic-Professional-Enterprise V6.11.1963 Win 32/64-Bit

  ABUS VMS Software
  History
  Version: 6.11.1963
  Release Datum: 02.11.2011
  Info:
  32 Bit + 64 Bit Version
  For free with all ABUS Security-Center network cameras and 4 to 8 channel PCI cards
  Changes:
  Supports the network camera TVIP62000
  Several runtime errors solved for network cameras
  Direct access for ABUS network cameras via the management system is now independent of the http port (default port 80)
- ABUS VMS Enterprise Demo v7.5.2408 Win 32/64-Bit

  ABUS VMS Software

  History
  Version: 7.7.12
  Release Date: 30.09.2014
  Filename: Software ABUS VMS Basic_Professional_Enterprise, Version 7.7.12, Software ABUS VMS Enterprise Demoversion, Version 7.7.12

  Optimizations:

  1. Faster search results within new version of ABUS IP-Installer
  2. Solved issue for audio playback when using Windows 8
  3. Automatic audio pre-configuration of connected ABUS IP cameras for usage with VMS software
  4. Audio playback enabled for reader software (database export)
  5. Memory utilization for TV3300-TV3310 improved
  6. Solved issue when launching VMS without any connected network interface
  7. Video streaming for AXIS network cameras corrected
  8. Fixed problem on launching reader software (database export)
  9. Solved issue on fast open/close masking settings within configuration menu

  Compatible network cameras:

  TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
  TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
  TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
  TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
  TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100, TV7203, TV7204, TV7206,
  TV7220, TV7221, TV7222, TV7223, TV7230, TV7240
Firmware
- TVIP51550 V MG.1.6.03P8

  Changes:
  1. Solved FTP picture transmission problems with W-LAN mode
  2. Improved W-LAN “mixed mode” function (Stability and performance of connection)
  3. SD card function does not produce error in log files (“SD record fail” , “SD alarm fail”)
  4. Direct playback of media with file manager (SD card …) works with Internet Explorer 9.
  5. Due to incompatibility problems with different authentication WLAN modes only following combinations are allowed :
  - WPA with TKIP
  - WPA2 with AES
