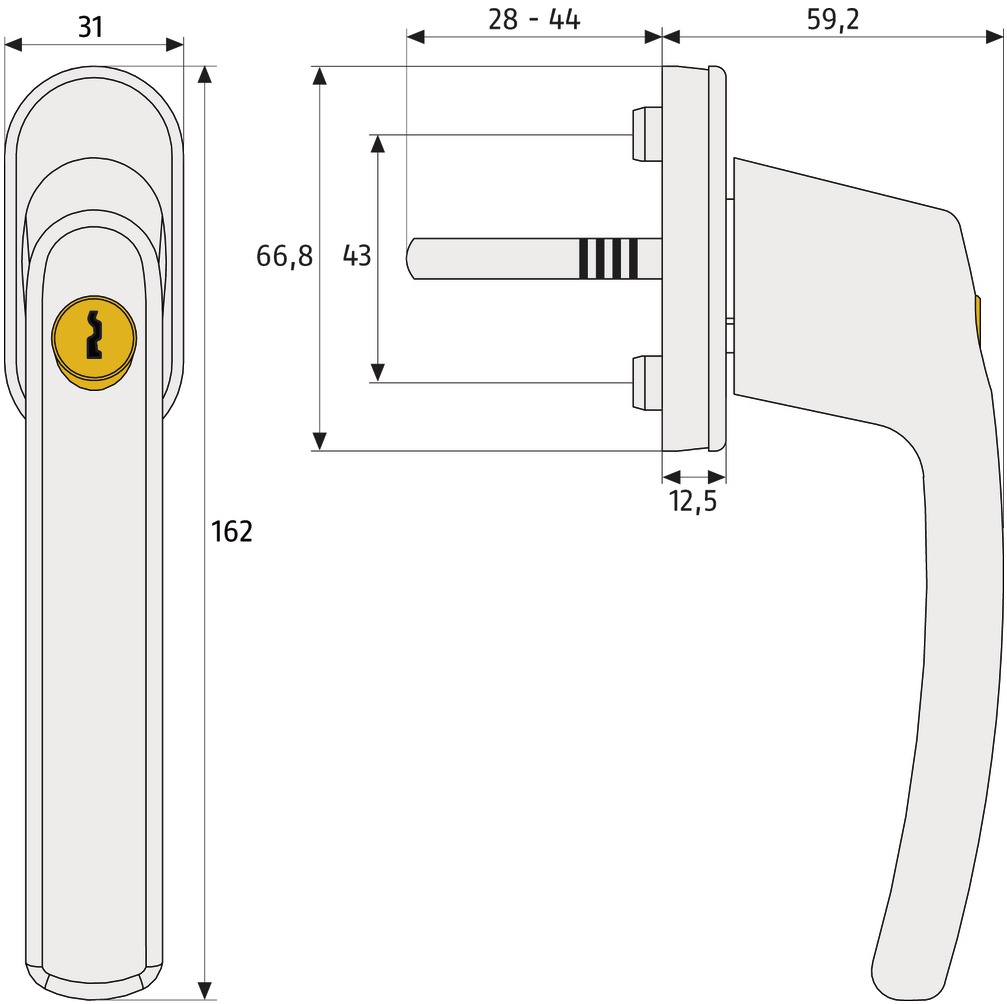

Technical Drawing
Level 3 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security For outward opening windows For inward opening windows
|||

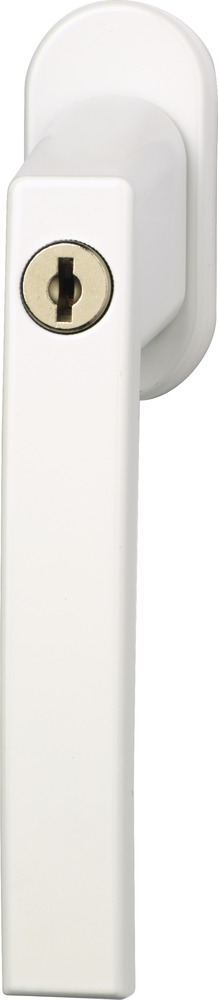

Lockable Window Handle FG210 W B/SB

Lockable window handle

Technology:

  • Square bolt adjustable: 28, 32, 36, 40 and 44 mm
  • 7 mm square bolt, distance of screws 43 mm
  • Zinc die cast handle
  • Push button cylinder with reversible key
  • Incl. one key

Operation and use:

  • For inward and outward opening turn and tilt windows
  • Also suitable as a child-proof lock
  • The handle is locked by pushing in the cylinder, open with the key

Variants:

  • Finishes: white, silver

Technical data:

Art. no.: 59487
Level: 3
Colour: white

Variants:

Lockable Window Handle FG210 W B/SB
Art. no. 59487
Level: 3
Weight [g]:

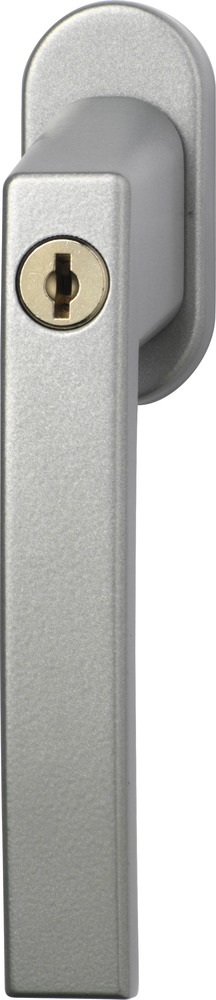

Lockable Window Handle FG210 S B/SB
Art. no. 59486
Level: 3
Weight [g]:
Lockable Window Handle FG210 S Triples B/SB
Art. no. 59489
Level: 3
Weight [g]:

Downloads:

Lockable window handles

Lockable window handles

A locking window handle is mainly used for child safety, but with certain break-in methods it can also serve as security products for windows.Especially for parents, locking window handles of this sort are a good idea because they can control which windows children can open. As the handles are available in a keyed-alike version, you only need one key to unlock all your window handles.Some window handles, e.g. the FG 300, are designed in such a ...
