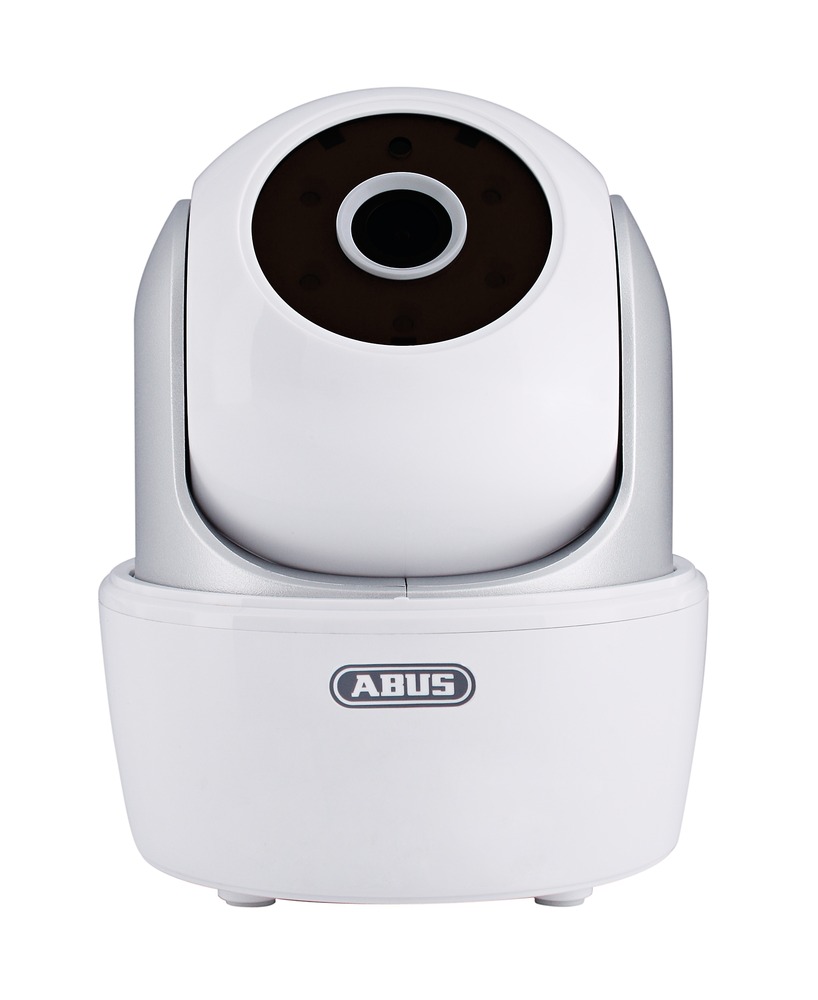

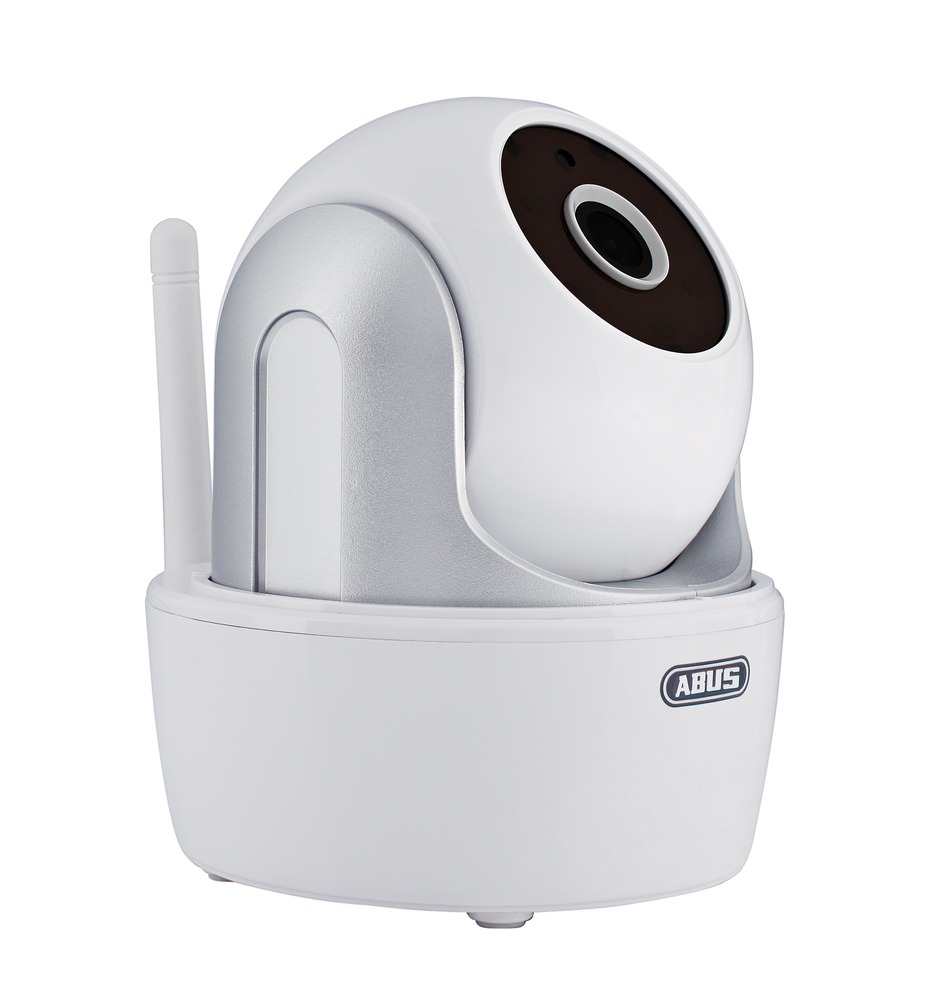

WLAN pan/tilt camera & app front view right WLAN pan/tilt camera & app front view
|||||

WLAN pan/tilt camera & app (Art. no. TVAC19000A)

Special product features:

  • For effective all-round monitoring of interior spaces
  • Guided step-by-step installation via app (iOS, Android)
  • App access of up to 8 cameras
  • HD 720p resolution and infrared night vision function for brilliant image quality
  • E-mail notification, snapshot function and push notification via app when motion is detected
  • All-around visibility (350° panning and 90° tilting range)
  • Recording to SD card (accessory, max. 32 GB)
  • Low network load thanks to compressed data transfer (H.264 compression)

Effective all-around monitoring indoors
This WLAN pan/tilt camera comes with the compatible app for iOS or Android and offers brilliant image quality at any time of day or night with a resolution of 720p. The camera can monitor 350° in the panning range and 90° in the tilting range. Thanks to the app, installation is quick and easy even for technical laymen.
Event notification and mobile access via app
Movement within the field of vision of the camera triggers recording on the SD card. If desired, you will be informed of incidents by e-mail or push notification and can take a snapshot or access the corresponding video image data using the app. Using the app, you also have access to the image material of up to eight cameras at the same time, enabling mobile monitoring wherever you are. The effective data compression of the camera relieves the network and increases storage space.

Technical data:

Art. no.: TVAC19000A
Dimensions: 87 x 80 x 115 mm
Number of users: 3 simultaneous access sessions
Number of IR LEDs: 5
Resolution: HD 1280 x 720 incl. audio
Recording resolution @ frame rate per camera: 720p @ 5/ 10/ 20 fps (max.) incl. audio images per second
Image sensor: MP CMOS
Frame rate: VGA @ 20 fps / VGA @ 25 fps / 720p @ 5 fps / 720p @ 10 fps fps
Horizontal angle: 50°±3°
Width: 80 mm
Focal length: 2,8 mm
Frequency: 2.4 GHz
Height: 115 mm
IR LEDs: 5 IR Power LEDs
IR cut filter: Yes
Length: 87 mm
Max. operating temperature: 50
Min. operating temperature: -10
Net weight: 0.35 kg
Network access: Ethernet (10/100 Base-T/Base-TX); Wi-Fi (IEEE 802.11 b/g/n)
Range of night vision function: 3 m
DC voltage supply: 5 V
Power consumption: 1500 mA
Encryption: WPA /WPA2/WPA2-PSK (TKIP, 128 bit AES)
Video compression: H.264

Scope of delivery:

  • 1x Wi-Fi pan/tilt camera & app
  • 1x Power supply unit including EU, Australian and UK adapters , 5 V DC/1.5 A
  • 1x LAN cable
  • 1x Ceiling mount
  • 1x Antenna
WLAN pan/tilt cameras

WLAN pan/tilt cameras

Laying cables is often impossible or not desired. In this case WLAN cameras are an option, since they transmit video signals over the wireless network to the PC or router. WLAN pan/tilt cameras remain flexible even after installation: they can be moved (panned and tilted) over the Internet. ...
