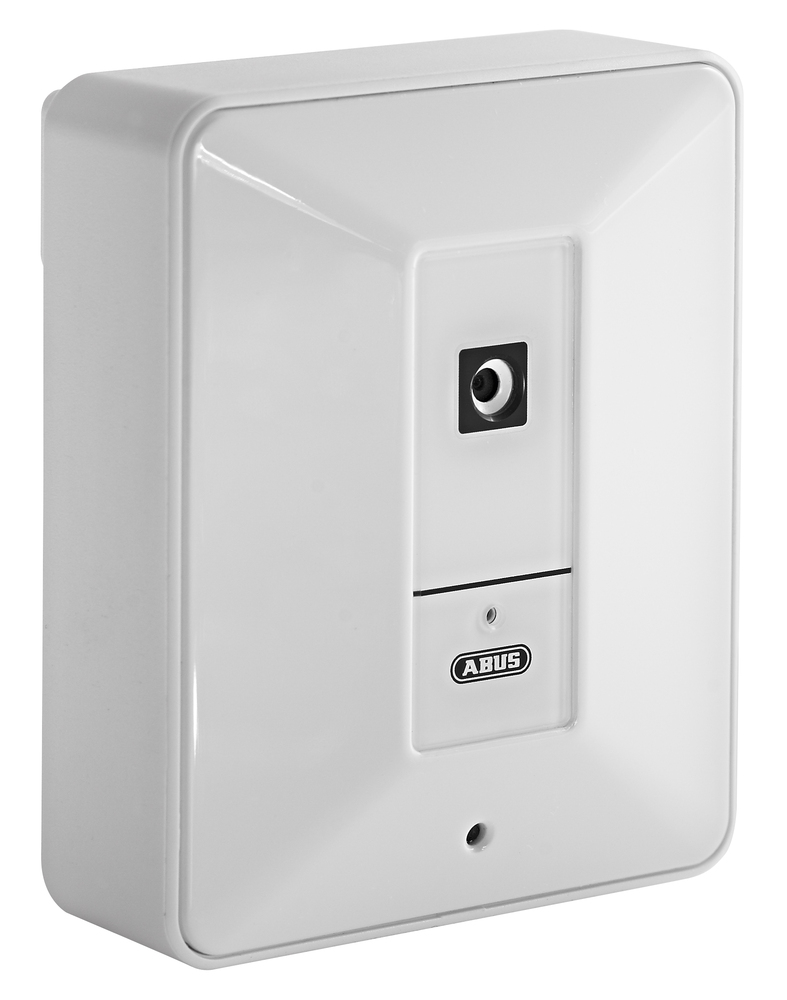

Compact Network Camera LAN (Art. no. TVIP10005B)

Special product features:

  • LAN camera for simple indoor surveillance tasks
  • Simple initial operation using ABUS DDNS server
  • Uncomplicated live cast and playback via app
  • VGA resolution: 640 x 480 @ 25 fps
  • Starter camera that can be used without IP networking familiarity
  • Optimal price/performance ratio

This camera takes real-time images in VGA resolution and transmits them via the IP network. A web browser (ABUS DDNS Server) or a free app ("Life View") can be used to operate the camera and access live images. Since the camera requires hardly any networking knowledge, it is ideal for over-the-counter sales.

Video surveillance for your home
Simply see who is coming or who is at the door – without extras, without elaborate configuration. That’s what this VGA LAN compact camera is made for. It is thus ideal for basic surveillance with real-time images, which is often sufficient for private use.

Reduced to the essentials
“Less is more” – this is the concept behind the VGA camera. The advantage: The LAN camera can be easily installed and operated by anyone, even if they have no IP networking knowledge. Setup of the camera parameters through the ABUS DDNS Server is as good as automatic; all you need to do is connect the camera with the router using a network cable. This means you don’t need to take note of and find out IP addresses.

Flexible mounting
The camera is suitable for mounting on all surfaces – on the wall or on the base included in the scope of delivery, for example.

Technical data:

Art. no.: TVIP10005B
Dimensions: (WxHxD) 63,1 x 77,05 x 32,4 mm
Connections: 1 x RJ45, 1 x DC
Number of streams: 1
Resolution modes: 640 x 480, 320 x 240, 160 x 120 pixel
Image sensor: 1/4" progressive scan CMOS-sensor
Pixels (effective): 640 x 480 pixel
Pixels (total): 640 x 480 pixel
Frame rate: 25 fps
Width: 63.1 mm
Focal length: 1,7 mm
Digital zoom: 10
Backlight compensation: BLC
Height: 77.1 mm
Horizontal angle of view: 67 °
Camera type: Color
Length: 32.4 mm
Max. resolution @ frame rate: 640 x 480 @ 25 fps
Max. operating temperature: 40 °C
Max. humidity: 80 %
Microphone: Yes
Min. operating temperature: 0 °C
Minimum illumination (color): 0.8
Net weight: 0.166 kg
Video network bandwidth: 6 MBit/s
LAN network access: RJ45
Network camera protocols: TCP/IP, DHCP, PPPoE, ARP, ICMP, DNS, NTP, UPnP, HTTP, UDP
IP protection class: 34
DC voltage supply: 5 V
Power consumption: 260 mA
Video compression: MJPEG
White balance: AWB
Certifications: CE, RoHS, Reach

Scope of delivery:

  • 1x 5 VDC power supply unit
  • 1x 1 m network cable
  • 1x Wall mount incl. fixing screws
  • 1x Installation CD
  • 1x Quickstart manual
