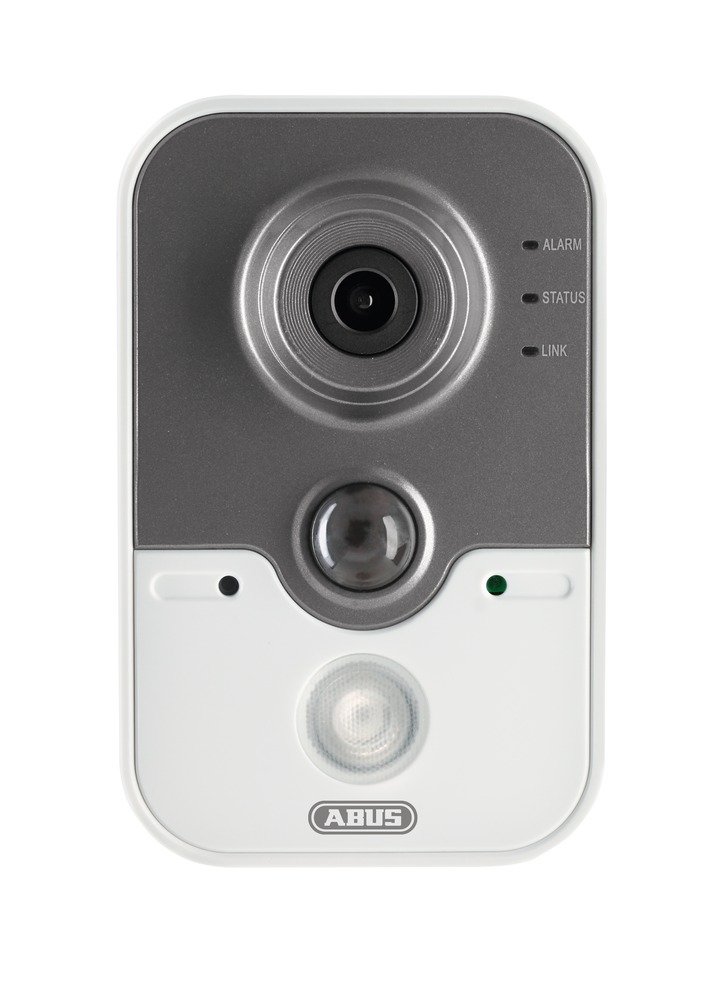

WLAN 720p Indoor Camera With Alarm Function (Art. no. TVIP11560)

Description
Technical data
Scope of delivery
Downloads

Special product features:

Compact day/night WLAN alarm camera for surveillance in indoor areas
Detailed high resolution, with 1280 x 720 pixels at 25 frames per second
With built-in loudspeaker that can emit a loud tone in the event of an alarm
Motion detection with passive infrared sensor
Integrated IR LED, activated in the dark

Internet and mobile access to live pictures via IPCam app and browser
Images can be sent by e-mail
Integrated microSD card slot for internal data storage as a back-up solution
With alarm output for an external alarm device (e.g. siren, light)
PoE (Power over Ethernet) capability

Alarm camera with versatile functions
The ABUS alarm camera is a versatile surveillance solution for the home or office. The camera can be connected cable-free to the network via WLAN and has an integrated loudspeaker that can emit a loud tone in the event of an alarm.
In addition, the loudspeaker and the integrated microphone enable two-way audio communication via the camera’s web interface using a microphone connected to the computer. External sounders, e.g, a siren or light, can be activated through the alarm output and will react in the event that something is detected.
Detailed surveillance images day and night
The surveillance camera provides highly detailed images with a resolution of up to 1280 x 720p. It supports high quality H.264 and Motion JPEG transmission formats which also make effective use of bandwidth.
In addition, the camera has an infrared LED making it ideal for 24/7 surveillance use. As a day/night camera it provides detailed recordings even in total darkness, and enables identification of objects up to a distance of 5 metres away. Using the ABUS IP cam app, live videos can be streamed direct to your smartphone or tablet.
Integrated micro SD card slot is used for internal data storage as a back-up solution.

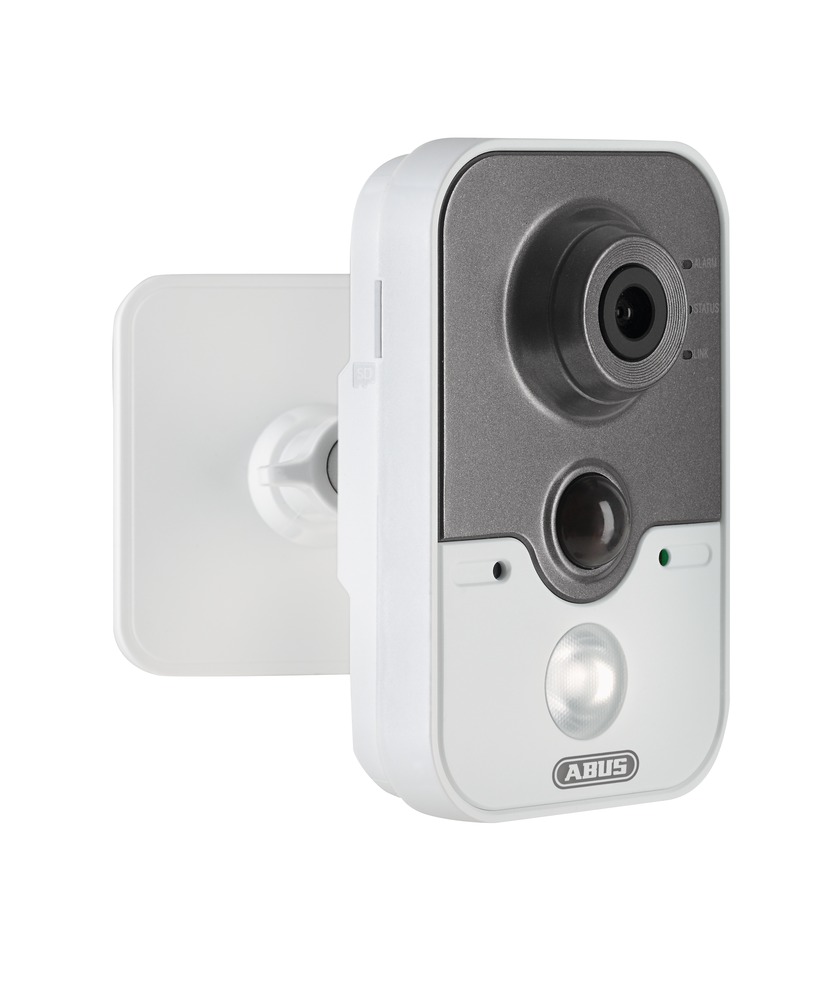

Flexible mounting options
PoE (Power over Ethernet) makes it possible to power the camera using the network cable – additional power cable therefore does not need to be laid.
Note about the product: For this camera model it is only possible to record video image data on the 4-channel NVR TVVR36000 and with VMS Express.

Technical data:

Art. no.:	TVIP11560
ONVIF:	Profile S
Dimensions:	66 x 71 x 139 mm
Alarm input (NO/NC):	1
Alarming:	E-Mail
Number of users:	6
Number of streams:	2
Audio:	64Kbps(G.711)/16Kbps(G.726)/32-128Kbps(MP2L2)
Resolution modes:	1280 x 960; 1280 x 720 pixel
Motion detection:	3 zones
Image sensor:	1/3" progressive scan CMOS
Frame rate:	50Hz: 25fps (1280 x 960), 25fps (1280 x 720); 60Hz: 30fps (1280 x 960), 30fps (1280 x 720) fps
Width:	66 mm
Focal length:	4,0 mm
Electronic shutter:	1/25 s - 1/100,000 s
Backlight compensation:	Yes
Height:	139 mm
Horizontal angle of view:	75,8 °
Camera type:	Day/night
Length:	71 mm
Power consumption:	5 W
Max. resolution @ frame rate:	1280 × 720 @ 30 fps
Max. operating temperature:	+50 °C
Microphone:	Yes
Min. operating temperature:	-10 °C
Minimum illumination (color):	0.01Lux @(F1.2,AGC)
LAN network access:	RJ45
WLAN network access:	802.11 b/g/n
Lens:	F2.0, 4.0 mm
PIR range:	max. 10 m
Relay output:	1
IP protection class:	34
Software:	ABUS VMS, Internet Explorer 6, Safari, Mozilla Firefox
DC voltage supply:	12 V
Storage medium:	microSD (64 GB)
Power consumption:	max. 450 mA
Day/night switching:	ICR
Supported browsers:	Internet Explorer 6, Safari, Mozilla Firefox, Google Chrome
Encryption:	HTTPS SSLv3, WEP 64/128bit, WPA/WPA2-PSK
Video compression:	H.264, MJPEG
Pre-alarm/post-alarm memory:	Yes s
White balance:	Yes

Scope of delivery:

1x Network camera
1x Power supply unit
1x 1-meter network cable
1x VMS Express Software
1x Installation CD
1x User guide (on CD)
1x Quickstart manual
1x Wall/ceiling mount incl. installation material

General Downloads:

Additional Information:

Software:

Installation Software
- v.1.0

  MAC-OSX Plug-in compatible for:
  • TVVR35001, TVVR35011, TVVR45021, TVVR45030, TVVR60011, TVVR60021
  • TVVR41200, TVRR41210, TVVR41220
  • TVHD80000, TVHD80010, TVHD80100, TVHD80110, TVHD80120
  • TVIP52502, TVIP72000, TVIP81000, TVIP81100, TVIP82000, TVIP82100
  • TVIP11560, TVIP41500, TVIP61500, TVIP61550

  History
  Version: v1.0
  Release date: 03.11.2014
  File name: DVR_NVR_IPC_MAC_OSX_Plug-In_v.1.0_11-2014.zip
  Description:
  The plug-in enables to display H.264/MPEG-4 video-streams for live view and remote playback via the Safari browser.

  Notice:
  MAC OSX browser plug-in compatible for MAC OSX 10.9 (Mavericks) and 10.10 (Yosemite).
- v8.0.22

  Version: V8.0.22
  Release date: 08.12.2014
  Filename:IP-Installer-Setup.exe (ABUS_IP-Installer_v8.0.22.zip)

  Changes:
  1. New design of user interface
  2. Full-text search function for easy filtering the result list
  3. Direct modification of IP settings via IP-Installer:
  TVVR35011, TVVR45021, TVVR45030,TVVR60011,TVVR60021,TVHD80000,TVHD80010,TVHD80100,TVHD80110,TVHD80120,
  TVVR41200,TVVR41210,TVVR41220,TVVR36000, TVVR30004,TVVR35010,TVVR45020,TVVR60010,TVVR60020,
  TVVR50010,TVVR50011,TVVR50020,TVVR50021,TVVR41100,TVVR41110,TVVR41120,TVVR40000,TVVR40010,TVVR40020,TVVR40021,
  TVVR20000, TVVR20001,TVVR30000,TVVR30001,TVVR30002,TVVR30003
  TVIP11560,TVIP41500,TVIP52502,TVIP61500,TVIP61550,TVIP70000,TVIP72000,TVIP81000,TVIP81100,TVIP82000,TVIP82100,
  TVIP86300, TVIP86900,FUAA11000,FUAA50000
  4. Network search in all subnet’s within local network:
  TVVR35011, TVVR45021, TVVR45030,TVVR60011,TVVR60021,TVHD80000,TVHD80010,TVHD80100,TVHD80110,TVHD80120,
  TVVR41200,TVVR41210,TVVR41220,TVVR36000, TVVR30004,TVVR35010,TVVR45020,TVVR60010,TVVR60020,
  TVVR50010,TVVR50011,TVVR50020,TVVR50021,TVVR41100,TVVR41110,TVVR41120,TVVR40000,TVVR40010,TVVR40020,TVVR40021,
  TVVR20000, TVVR20001,TVVR30000,TVVR30001,TVVR30002,TVVR30003
  TVIP11560,TVIP41500,TVIP52502,TVIP61500,TVIP61550,TVIP70000,TVIP72000,TVIP81000,TVIP81100,TVIP82000,TVIP82100,
  TVIP86300, TVIP86900
  5. Language settings of local operating system will be used by the application

  Improvements:
  1. Network search speed and detection of firmware version further optimized
Recording Software
- ABUS VMS Express v7.8.14 Win 32/64-Bit

  Version: 7.8.14
  Release Date: 08.12.2014
  Filename: Software ABUS VMS Express, Version 7.8.14

  Changes:

  1. Added support for hemispheric camera TVIP86300 and TVIP86900. Motion detection support only available for camera channel1.
  Please note: Only when setting camera to "real-time mode deactivated", all video streams can be accessed at the same time.

  2. Error message can be disabled via system settings menu "miscellaneous".

  Compatible network cameras:

  TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
  TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
  TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
  TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
  TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100, TVIP86300, TVIP86900
