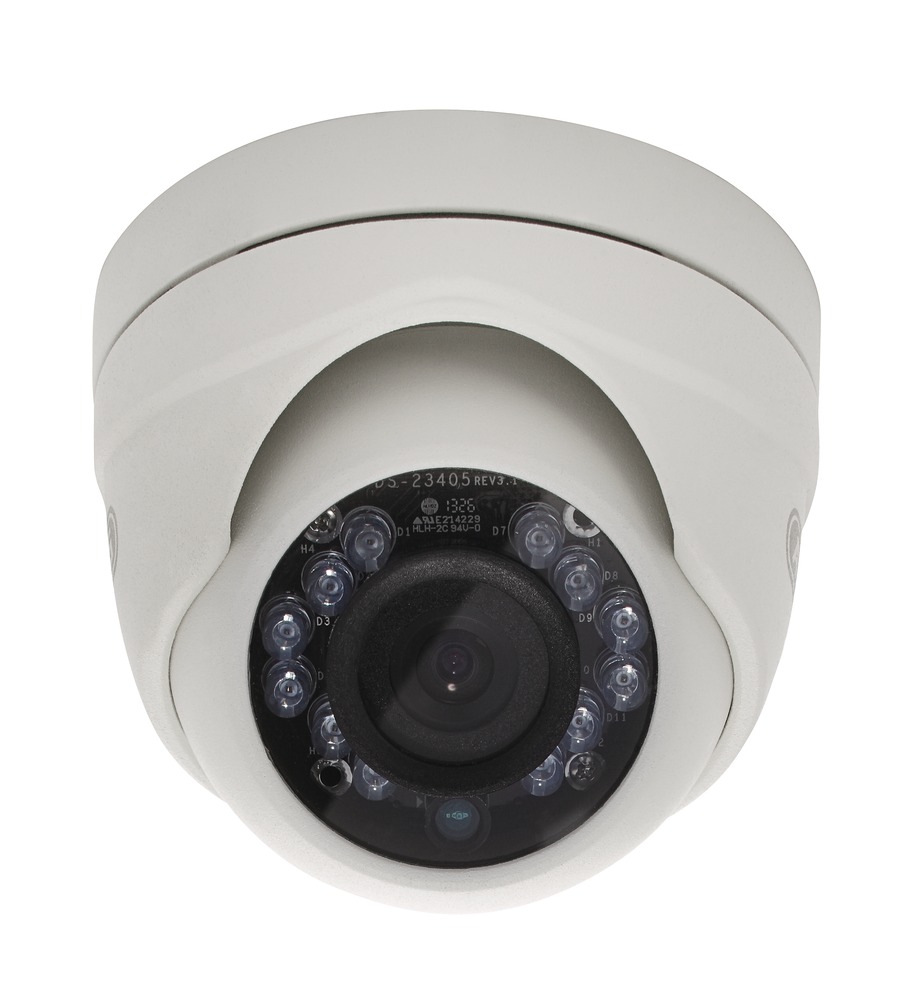

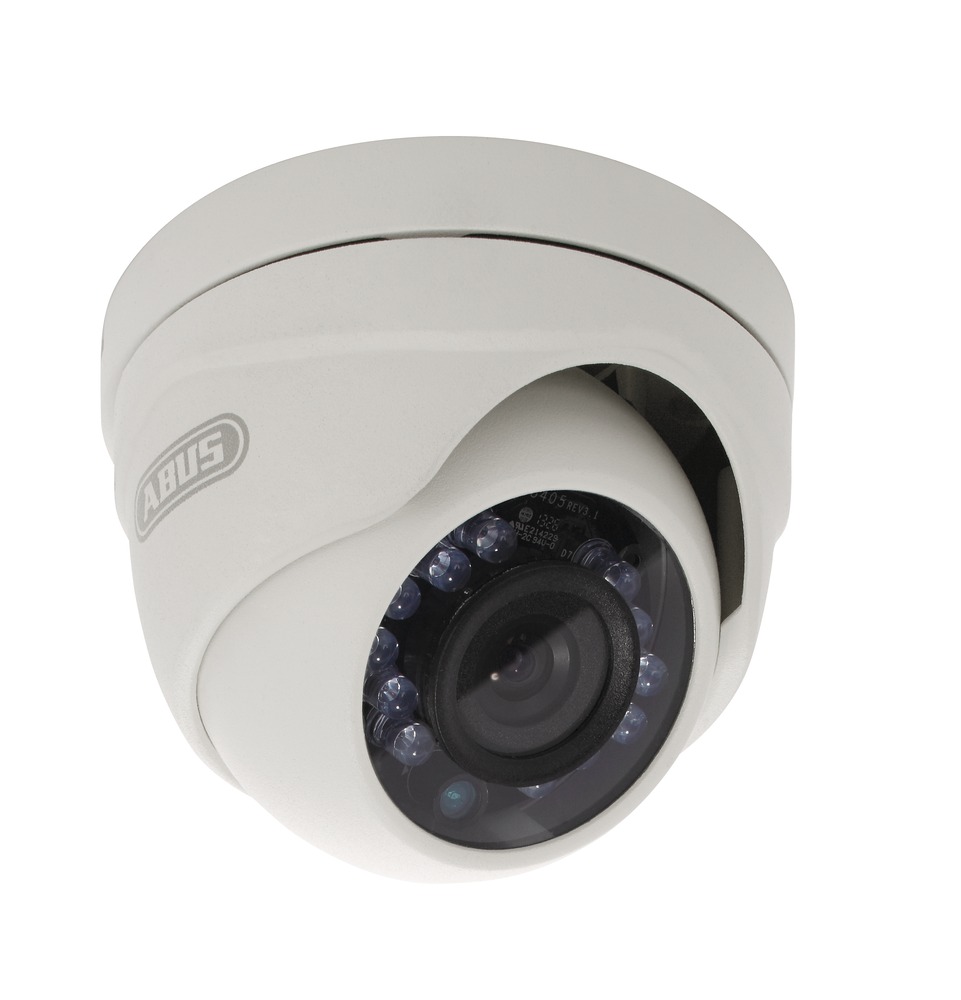

Day/night mini outdoor dome camera front view right Day/night mini outdoor dome camera front view
Neu
|||||

Day/Night Mini Outdoor Dome Camera (Art. no. TVCC34010)

Special product features:

  • Compact day/night vision mini outdoor dome camera
  • Varied camera installation options - whether indoors or outdoors
  • Simple design and high protection class (IP66)
  • High detailed resolution, thanks to 600 TVL
  • 1 x 20 metre coaxial cable included
  • Ideal for extension of TVVR30004 or TVVR30104

Unobtrusive monitoring indoors or outdoors
The analogue day/night outdoor dome camera is the ideal supplement to the TWR30004 4-channel recorder and the TVVR30104 video surveillance kit. It stands out with its plain design and high protection class (IP66), which means it can be used both outdoors and indoors. The camera has integrated IR LEDs for 24/7 use both day and night.
With a high, detailed resolution of 600 TVL, it delivers precise video images for accurate recognition of persons.

Flexible mounting options
Fast and easy installation is guaranteed with the 20 m combination cable and power supply unit provided.

Technical data:

Art. no.: TVCC34010
Dimensions: 90 x 59 mm
Connections: Video signal (BNC), power supply (DC)
Image sensor: 1/3" DIS
Pixels (effective): 720 (H) x 480 (V) pixel
Width: 59 mm
Focal length: 3.6 mm
Electronic shutter: 1/25 ~ 1/15.000 sec.
Backlight compensation: Yes
Height: 90 mm
Horizontal angle of view: 68,4 °
IR LEDs: 12
IR range: 10 m
Camera type: Day/night outdoor camera
Max. operating temperature: 50 °C
Max. humidity: max. 90 %
Min. operating temperature: - 20 °C
Minimum illumination (color): 0,1 Lux
Minimum illumination (IR): 0 Lux
Lens: 3.6 mm, fixed lens mm
Noise reduction: > 52 dB
IP protection class: 66
DC voltage supply: 12 V
Power consumption: 420 mA
Day/night switching: Electromechanical IR-cut filter
TVL: 600 TVL
Video system: PAL / NTSC

Scope of delivery:

  • 1x Day/night mini outdoor dome camera
  • 1x Power supply unit including EU, Australian and UK adapters
  • 1x 20 m combination cable
  • 1x Manual
