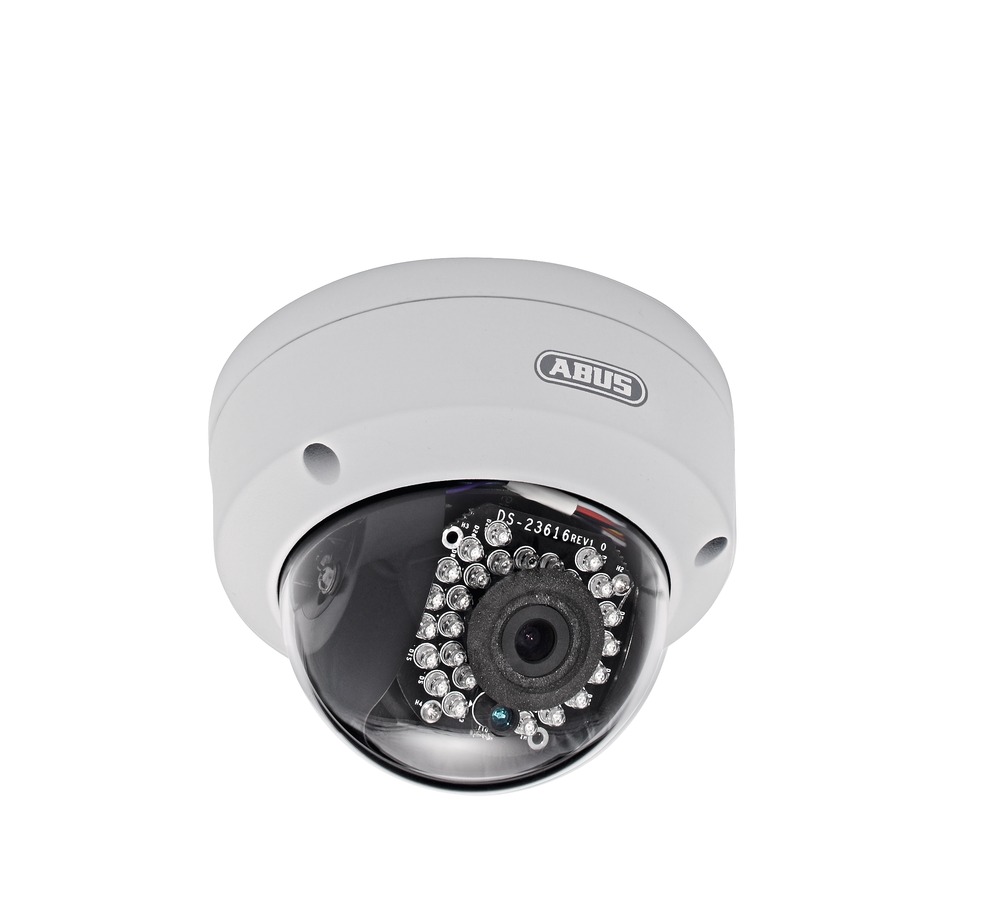

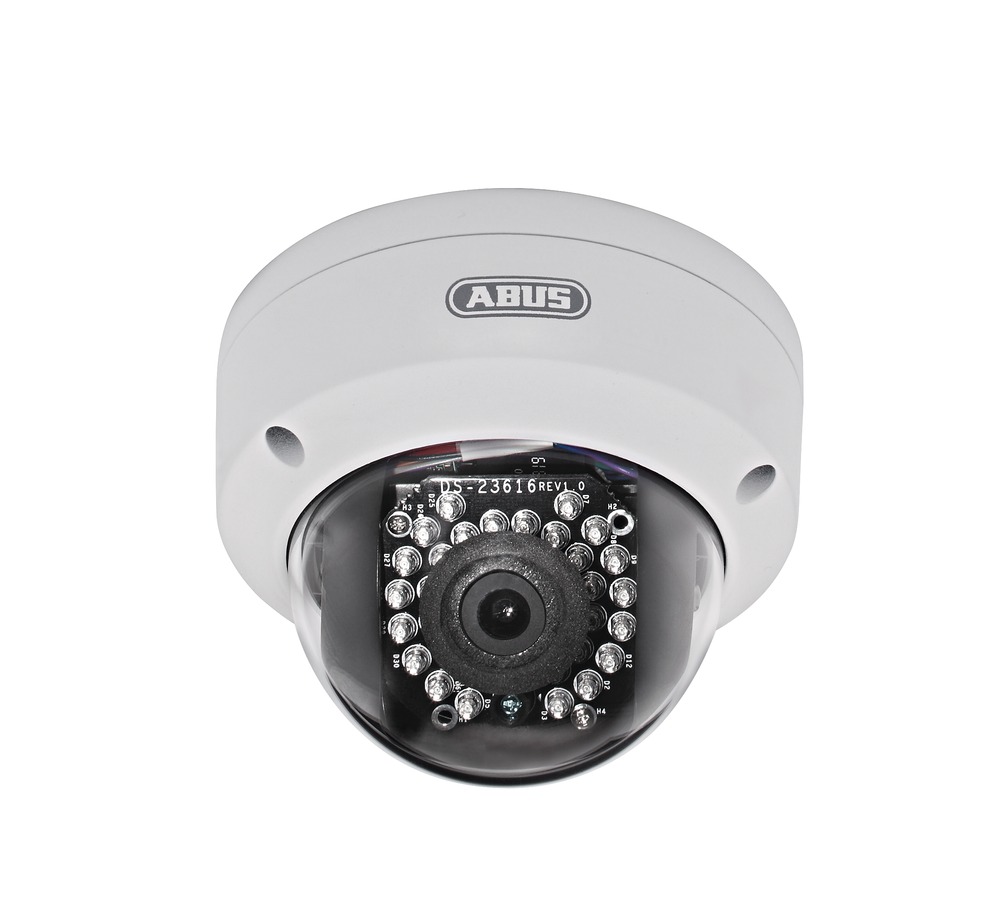

IR mini HD 720p network outdoor dome camera front view right IR mini HD 720p network outdoor dome camera front view
Update Neu
|||||

IR Mini HD 720p Network Outdoor Dome Camera (Art. no. TVIP41500)

We expressly recommend having this product installed by a certified specialist.

Special product features:

  • Compact day/night vision IP outdoor dome camera
  • Various camera installation options - whether indoors or outdoors
  • Simple design and high protection class (IP66)
  • Detailed high resolution, thanks to 1280 x 720 pixel at 25 frames/second
  • 1 x 1-metre network cable included
  • Internet and mobile access to live pictures via app and browser
  • Sending pictures by e-mail
  • Integrated motion sensor system
  • Powered is supplied via the network cable (Power over Ethernet - PoE)

Detailed surveillance images indoors and outdoors, day and night
The TVIP41500 IR mini HD 720p network outdoor dome camera records 25 images per second at a resolution of 1280 x 720 pixels. With this high, detailed resolution of, it delivers precise video images for accurate recognition of persons. The built in motion sensors and the WDR backlight compensation function make the camera especially suitable for monitoring entrance areas. It stands out with its plain design and high protection class (IP66), which means it can be used both outdoors and indoors. The camera has integrated IR LEDs for 24/7 use both day and night.

Mobile access to live images
As well the option of accessing live images on a mobile phone using via app and browser, the video data can also be sent by e-mail.

Flexible mounting options
Thanks to PoE (Power over Ethernet), you can power the camera using the network cable and do not need to lay an additional power cable.
Note about the product:
Camera recording is only possible in the VMS Express not in VMS Basic, Professional, Enterprise or with an NAS recording system.

Technical data:

Art. no.: TVIP41500
ONVIF: Profile S
Dimensions: (HxØ) 82 x 111 mm
Alarming: E-Mail
Connections: 1 x RJ45, 1 x DC
Number of streams: 2
Resolution modes: 1280 x 960, 1280 x 720, 704 x 576, 352 x 288, 176 x 144 pixel
Motion detection: 3 zones
Image sensor: 1/3" Progressive Scan CMOS
Pixels (effective): 1280 x 960 pixel
Pixels (total): 1280 x 960 pixel
Frame rate: 25 fps @ 1280x960, 25 fps @ 1280x720 fps
Focal length: 4,0 mm
Digital zoom: Yes
Electronic shutter: 1/3 - 1/100000 s
Backlight compensation: Soft-WDR
Housing material: Metal
Height: 82 mm
Horizontal angle of view: 69,4 °
IR LEDs: 30
IR range: 10 m
Camera type: Day/night
Power consumption: 7 W
Max. resolution @ frame rate: 1280 x 960 @ 25 fps
Max. operating temperature: 50 °C
Min. operating temperature: -10 °C
Minimum illumination (color): 2
Minimum illumination (IR): 0
Net weight: 0,5 kg
LAN network access: RJ-45 Ethernet 10/100 Base-T
Network camera protocols: IPv4, IPv6, TCP/IP, HTTP, UPnP, RTP/RTSP, SMTP, DHCP, NTP, DNS, DDNS
PoE: 802.3af
Private zones: 4
Noise reduction: DNR
IP protection class: 66
Software: ABUS VMS Express, IPCam App (iOS)
DC voltage supply: 12 V
Language of instructions: DE, UK, FR, NL, DK. PL, RU, SWE, IT, ES
OSD language: DE, UK, FR, NL, DK. PL, RU, SWE, IT, ES
Power consumption: Max. 580 mA
Day/night switching: Electromechanical IR-cut filter, Color/B-W
Amplifier control: AGC
Video compression: H.264, MJPEG
Video system: IP
Pre-alarm/post-alarm memory: 1 pre-alarm image, 1 event image, 1 post-alarm image s
White balance: Yes
Certifications: CE, RoHS, REACH

Scope of delivery:

  • 1x Network camera
  • 1x Power supply unit
  • 1x 1-meter network cable
  • 1x VMS Express software
  • 1x Installation CD
  • 1x User guide (on CD)
  • 1x Quickstart manual

Software:

  • Installation Software

    • v.1.0
      MAC-OSX Plug-in compatible for:
      • TVVR35001, TVVR35011, TVVR45021, TVVR45030, TVVR60011, TVVR60021
      • TVVR41200, TVRR41210, TVVR41220
      • TVHD80000, TVHD80010, TVHD80100, TVHD80110, TVHD80120
      • TVIP52502, TVIP72000, TVIP81000, TVIP81100, TVIP82000, TVIP82100
      • TVIP11560, TVIP41500, TVIP61500, TVIP61550

      History
      Version: v1.0
      Release date: 03.11.2014
      File name: DVR_NVR_IPC_MAC_OSX_Plug-In_v.1.0_11-2014.zip
      Description:
      The plug-in enables to display H.264/MPEG-4 video-streams for live view and remote playback via the Safari browser.

      Notice:
      MAC OSX browser plug-in compatible for MAC OSX 10.9 (Mavericks) and 10.10 (Yosemite).
    • v8.0.22
      Version: V8.0.22
      Release date: 08.12.2014
      Filename:IP-Installer-Setup.exe (ABUS_IP-Installer_v8.0.22.zip)

      Changes:
      1. New design of user interface
      2. Full-text search function for easy filtering the result list
      3. Direct modification of IP settings via IP-Installer:
      TVVR35011, TVVR45021, TVVR45030,TVVR60011,TVVR60021,TVHD80000,TVHD80010,TVHD80100,TVHD80110,TVHD80120,
      TVVR41200,TVVR41210,TVVR41220,TVVR36000, TVVR30004,TVVR35010,TVVR45020,TVVR60010,TVVR60020,
      TVVR50010,TVVR50011,TVVR50020,TVVR50021,TVVR41100,TVVR41110,TVVR41120,TVVR40000,TVVR40010,TVVR40020,TVVR40021,
      TVVR20000, TVVR20001,TVVR30000,TVVR30001,TVVR30002,TVVR30003
      TVIP11560,TVIP41500,TVIP52502,TVIP61500,TVIP61550,TVIP70000,TVIP72000,TVIP81000,TVIP81100,TVIP82000,TVIP82100,
      TVIP86300, TVIP86900,FUAA11000,FUAA50000
      4. Network search in all subnet’s within local network:
      TVVR35011, TVVR45021, TVVR45030,TVVR60011,TVVR60021,TVHD80000,TVHD80010,TVHD80100,TVHD80110,TVHD80120,
      TVVR41200,TVVR41210,TVVR41220,TVVR36000, TVVR30004,TVVR35010,TVVR45020,TVVR60010,TVVR60020,
      TVVR50010,TVVR50011,TVVR50020,TVVR50021,TVVR41100,TVVR41110,TVVR41120,TVVR40000,TVVR40010,TVVR40020,TVVR40021,
      TVVR20000, TVVR20001,TVVR30000,TVVR30001,TVVR30002,TVVR30003
      TVIP11560,TVIP41500,TVIP52502,TVIP61500,TVIP61550,TVIP70000,TVIP72000,TVIP81000,TVIP81100,TVIP82000,TVIP82100,
      TVIP86300, TVIP86900
      5. Language settings of local operating system will be used by the application

      Improvements:
      1. Network search speed and detection of firmware version further optimized

  • Recording Software

    • ABUS VMS Express v7.8.14 Win 32/64-Bit
      Version: 7.8.14
      Release Date: 08.12.2014
      Filename: Software ABUS VMS Express, Version 7.8.14



      Changes:

      1. Added support for hemispheric camera TVIP86300 and TVIP86900. Motion detection support only available for camera channel1.
      Please note: Only when setting camera to "real-time mode deactivated", all video streams can be accessed at the same time.

      2. Error message can be disabled via system settings menu "miscellaneous".


      Compatible network cameras:

      TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
      TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
      TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
      TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
      TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100, TVIP86300, TVIP86900

  • Firmware

    • V5.0.4
      Firmware compatible to: TVIP41500 / TVIP61500
      History
      Version: V5.0.4
      Release Date: 13.08.2014
      Improvements:
      • E-mails for the provider GMX, Web.de and Googlemail
      • Native IE11 support
      • AutoUPnP function
