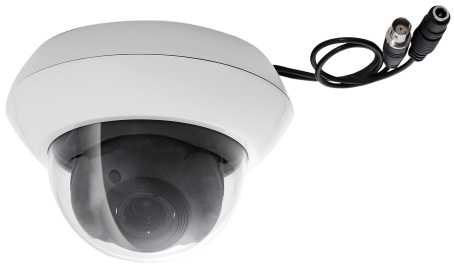

S-Lux 550 TVL dome camera front view
|||||

S-Lux 550 TVL dome camera (Art. no. TVCC35000)

We expressly recommend having this product installed by a certified specialist.

Special product features:

  • State-of-the art light-sensitive chip set for clear images in poor light conditions
  • Integrated 3.6 mm fixed lens
  • High resolution of 550 TV lines
  • Easy Plug camera module and mounting plate for simple, quick installation
  • Triaxial camera holder

This dome camera with innovative S-Lux technology is the ideal device for monitoring poorly-lit areas without any blackout phases (such as lit underground garages, foyers, corridors or operating facilities). Thanks to the Easy Plug module, the base plate is first attached to the wall or ceiling before the camera module is simply positioned on top - the connection is made using contact points. Easy to install, hard to beat - the qualities of this high-resolution 550 TVL dome camera speak for themselves.

Technical data:

Art. no.: TVCC35000
Dimensions: (HxØ) 99.5 x145 mm
Connections: 2 x BNC, Cinch, DC (5.5x2.1mm)
Image sensor: 1/3" Sharp HQ CCD
Pixels (effective): 752(H) x 582(V) pixel
Pixels (total): 795(H) x 596(V) pixel
Aperture at minimum illumination (color): 2.0, 50
Width: 145 mm
DSP: Sharp
Electronic shutter: AES
Backlight compensation: BLC
Height: 100 mm
Horizontal angle of view: 71 °
Camera type: Dome camera
Power consumption: 1.2 W
Max. operating temperature: 50 °C
Max. humidity: 85 %
Min. operating temperature: -10 °C
Minimum illumination (color): 0.3 Lux @ F2.0
Net weight: 290 kg
Lens: 3,6 mm, F2.0 mm
Lens control: Internal
Signal-to-noise ratio: >48
DC voltage supply: 12 V
Power consumption: 100 mA
TVL: 550 TVL
Amplifier control: AGC
Video output: 2 x FBAS (1 Vss, 75 Ohm)
Video system: PAL
White balance: AWB
Certifications: CE, RoHS, Reach
