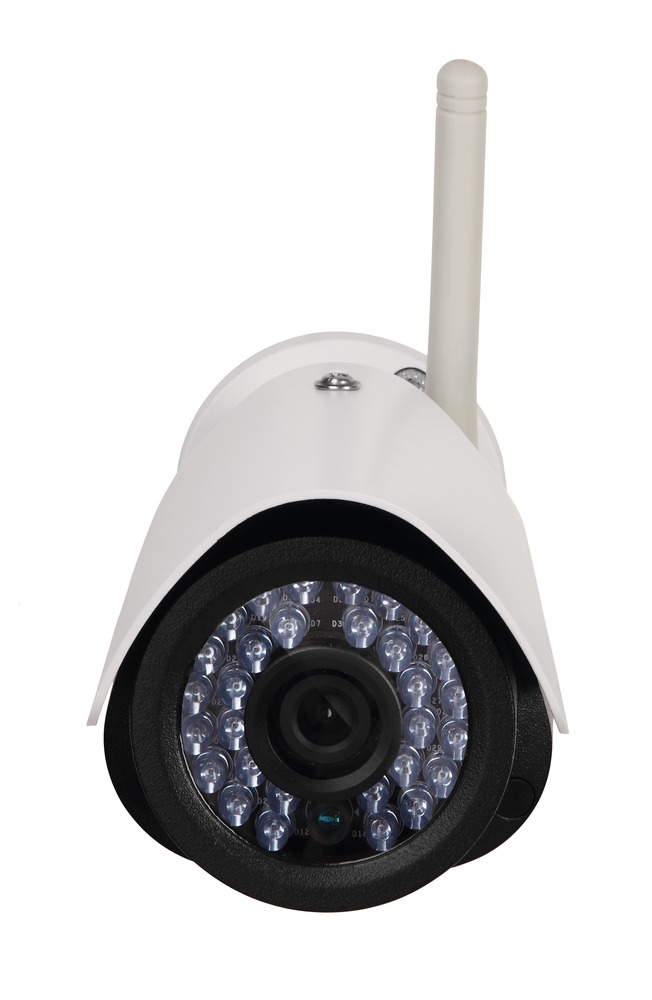

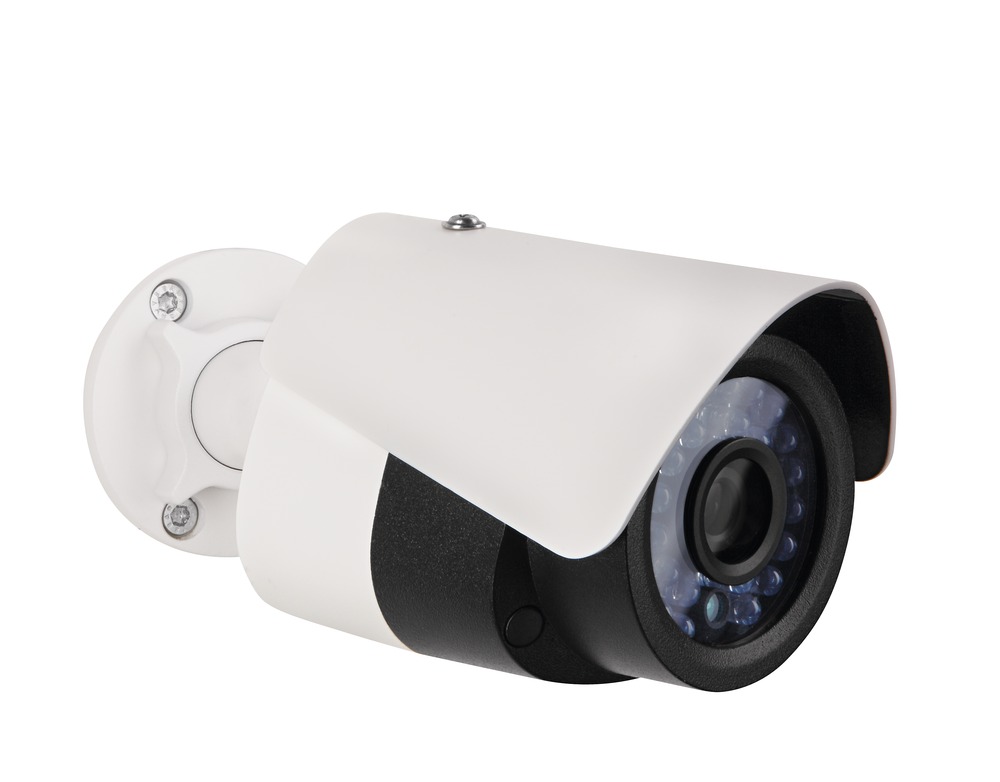

IR HD 720p WLAN network outdoor camera front view right IR HD 720p WLAN network outdoor camera front view
Neu
||||

IR HD 720p WLAN Network Outdoor Camera (Art. no. TVIP61550)

Special product features:

  • Compact day/night vision WLAN IP outdoor camera
  • Detailed high resolution, with 1280 x 720 pixels at 25 frames per second
  • Discreet design and high protection class (IP65)
  • Internet and mobile access to live pictures via IPCam app and browser
  • Images can be sent by e-mail
  • Integrated motion sensor system
  • With WDR function for backlight compensation - ideal for entrance areas

WLAN surveillance camera for outdoors
The IP camera with night vision function and high protection class (IP65) is ideal both for indoors as well as protected outdoor areas. It has integrated IR LEDs for 24/7 use, which provides detailed recordings even in total darkness and enables identification of objects up to a distance of 5 metres away. The plain design further contributes to this inconspicuous video surveillance solution.
Detailed surveillance images indoors and outdoors, day and night
The camera can be connected cable-free to the network via WLAN and provides detailed images with a resolution of 1280 x 720 pixels in real time The high resolution enables accurate person recognition. The built-in motion sensors and the WDR backlight compensation function make the camera especially suitable for monitoring entrance areas.
Mobile access to live images
As well the option of accessing live images on a mobile phone via app and browser, the video image data can also be sent by e-mail.
Note about the product:
- For this camera model it is only possible to record video image data on the 4-channel NVR TVVR36000 and with VMS Express.
- The camera is not PoE-enabled.

Technical data:

Art. no.: TVIP61550
ONVIF: Profile S
Dimensions: (BxHxT) 60x60x157 mm
Alarming: E-Mail
Connections: 1 x RJ45, 1 x DC
Number of streams: 2
Resolution modes: 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288, 320 x 240 pixel
Motion detection: 3 zones
Image sensor: 1/3" Progressive Scan CMOS
Pixels (effective): 1280(H) x 960(V) pixel
Pixels (total): 1280(H) x 960(V) pixel
Frame rate: 25 frames/s @ 1280 x 960, 25 frames/s @ 1280 x 720 fps
Width: 60 mm
Focal length: 4,0 mm
Digital zoom: Yes
Electronic shutter: 1/3 - 1/100000 s
Backlight compensation: Soft-WDR
Height: 60 mm
Horizontal angle of view: 69,4 °
IR LEDs: 30
IR range: 10 m
Camera type: Day/night
Length: 157 mm
Power consumption: 7 W
Max. resolution @ frame rate: 1280 x 960 @ 25 fps
Max. operating temperature: 40 °C
Min. operating temperature: -10 °C
Minimum illumination (color): 2
Minimum illumination (IR): 0
LAN network access: RJ45
Network camera protocols: IPv4, IPv6, TCP/IP, HTTP, UPnP, RTP/RTSP, SMTP, DHCP, NTP, DNS, DDNS
Private zones: 4
Noise reduction: DNR
IP protection class: 65
Software: ABUS VMS Express, IP-Cam App (iOS)
DC voltage supply: 12 V
Language of instructions: DE, UK, FR, NL, DK. PL, RU, SWE, IT, ES
OSD language: DE, UK, FR, NL, DK. PL, RU, SWE, IT, ES
Packaging language: DE, UK, FR, NL, DK. PL, RU, SWE, IT, ES
Power consumption: 580 mA
Day/night switching: IR cut is swivelled electromagnetically, Color/B-W
Video compression: H.264, MJPEG
Pre-alarm/post-alarm memory: 1 pre-alarm image, 1 event image, 1 post-alarm image s
White balance: Ja

Scope of delivery:

  • 1x Network camera
  • 1x Power supply unit
  • 1x 1-meter network cable
  • 1x VMS Express Software
  • 1x Installation CD
  • 1x User guide (on CD)
  • 1x Quickstart manual
  • 1x Wall/ceiling mount (pre-installed) incl. installation material

Software:

  • Installation Software

    • v.1.0
      MAC-OSX Plug-in compatible for:
      • TVVR35001, TVVR35011, TVVR45021, TVVR45030, TVVR60011, TVVR60021
      • TVVR41200, TVRR41210, TVVR41220
      • TVHD80000, TVHD80010, TVHD80100, TVHD80110, TVHD80120
      • TVIP52502, TVIP72000, TVIP81000, TVIP81100, TVIP82000, TVIP82100
      • TVIP11560, TVIP41500, TVIP61500, TVIP61550

      History
      Version: v1.0
      Release date: 03.11.2014
      File name: DVR_NVR_IPC_MAC_OSX_Plug-In_v.1.0_11-2014.zip
      Description:
      The plug-in enables to display H.264/MPEG-4 video-streams for live view and remote playback via the Safari browser.

      Notice:
      MAC OSX browser plug-in compatible for MAC OSX 10.9 (Mavericks) and 10.10 (Yosemite).
    • v8.0.22
      Version: V8.0.22
      Release date: 08.12.2014
      Filename:IP-Installer-Setup.exe (ABUS_IP-Installer_v8.0.22.zip)

      Changes:
      1. New design of user interface
      2. Full-text search function for easy filtering the result list
      3. Direct modification of IP settings via IP-Installer:
      TVVR35011, TVVR45021, TVVR45030,TVVR60011,TVVR60021,TVHD80000,TVHD80010,TVHD80100,TVHD80110,TVHD80120,
      TVVR41200,TVVR41210,TVVR41220,TVVR36000, TVVR30004,TVVR35010,TVVR45020,TVVR60010,TVVR60020,
      TVVR50010,TVVR50011,TVVR50020,TVVR50021,TVVR41100,TVVR41110,TVVR41120,TVVR40000,TVVR40010,TVVR40020,TVVR40021,
      TVVR20000, TVVR20001,TVVR30000,TVVR30001,TVVR30002,TVVR30003
      TVIP11560,TVIP41500,TVIP52502,TVIP61500,TVIP61550,TVIP70000,TVIP72000,TVIP81000,TVIP81100,TVIP82000,TVIP82100,
      TVIP86300, TVIP86900,FUAA11000,FUAA50000
      4. Network search in all subnet’s within local network:
      TVVR35011, TVVR45021, TVVR45030,TVVR60011,TVVR60021,TVHD80000,TVHD80010,TVHD80100,TVHD80110,TVHD80120,
      TVVR41200,TVVR41210,TVVR41220,TVVR36000, TVVR30004,TVVR35010,TVVR45020,TVVR60010,TVVR60020,
      TVVR50010,TVVR50011,TVVR50020,TVVR50021,TVVR41100,TVVR41110,TVVR41120,TVVR40000,TVVR40010,TVVR40020,TVVR40021,
      TVVR20000, TVVR20001,TVVR30000,TVVR30001,TVVR30002,TVVR30003
      TVIP11560,TVIP41500,TVIP52502,TVIP61500,TVIP61550,TVIP70000,TVIP72000,TVIP81000,TVIP81100,TVIP82000,TVIP82100,
      TVIP86300, TVIP86900
      5. Language settings of local operating system will be used by the application

      Improvements:
      1. Network search speed and detection of firmware version further optimized

  • Recording Software

    • ABUS VMS Express v7.8.14 Win 32/64-Bit
      Version: 7.8.14
      Release Date: 08.12.2014
      Filename: Software ABUS VMS Express, Version 7.8.14



      Changes:

      1. Added support for hemispheric camera TVIP86300 and TVIP86900. Motion detection support only available for camera channel1.
      Please note: Only when setting camera to "real-time mode deactivated", all video streams can be accessed at the same time.

      2. Error message can be disabled via system settings menu "miscellaneous".


      Compatible network cameras:

      TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
      TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
      TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
      TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
      TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100, TVIP86300, TVIP86900
