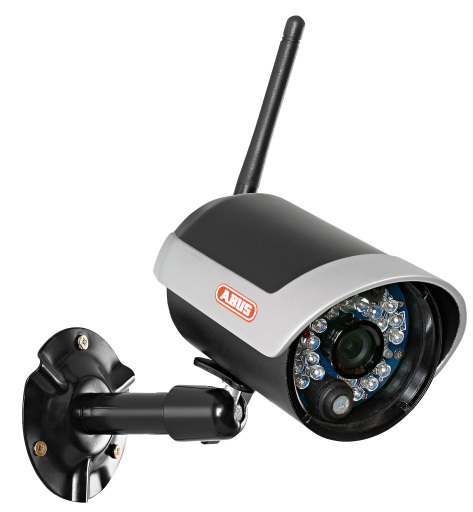

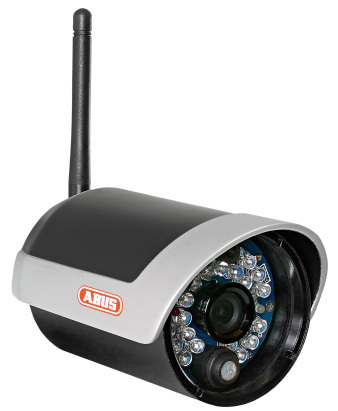

Wireless Outdoor IR camera (2.4GHz) front view Wireless Outdoor IR camera (2.4GHz) front view
||||

Wireless Outdoor IR camera (2.4GHz) for 3.5'' set (Art. no. TVAC15010B)

Special product features:

  • Compact IP66 outdoor camera with infrared night vision function
  • Integrated digital transmitter (2.4 GHz) for encrypted wireless transmission of video data
  • IR digital wireless outdoor camera for integration in the TVAC15000 wireless monitor
  • 400 TVL resolution, 3.6 mm fixed lens
  • This camera can only be used as an extension for the TVAC15000

This 2.4 GHz IR wireless outdoor camera with PIR is an optional accessory for the 3.5" TFT wireless monitor. You have the option of operating up to 4 cameras of this type with the monitor. You can use this 2.4 GHz IR wireless outdoor camera to transmit video signals easily to the wireless monitor. Wireless signal transmission is an advantage everywhere where cables cannot be laid: the camera transmits the video signal to the monitor without the need for wiring. Faults and interference can be fully avoided due to the conversion into digital signals.

Technical data:

Art. no.: TVAC15010B
Dimensions: 120 x 71 x 68 mm
Number of IR LEDs: 27
Resolution: 640 x 480
Horizontal angle: 56
Width: 120 mm
Frequency: 2.4 GHz
Wireless range: 100 m
Height: 71 mm
IR cut filter: Yes
Length: 68 mm
Max. operating temperature: 50
Min. operating temperature: -10
Net weight: 0.32 kg
PIR angle of view: 60 (H) / 50 (V) °
PIR range: 5 m
IP protection class: 66
Transmission power: 16 dBm
Sensitivity: -82 dBm
DC voltage supply: 5 V
Power consumption: 550 mA

Scope of delivery:

  • 1x Camera mount
  • 1x Installation material
  • 1x Power supply unit incl. EU, AUS, and UK adapters
  • 1x User guide
Digital wireless surveillance sets

Digital wireless surveillance sets

Video surveillance was rarely so simple and reliable while simultaneously being able to be used at any time and being nearly self-explanatory. The motion detectors of the camera detect movement in the environment and transmit what is happening to the monitor, which can then save the signal to an SD card – while playback is simultaneously provided on the monitor. Even at night and with audio. ...
