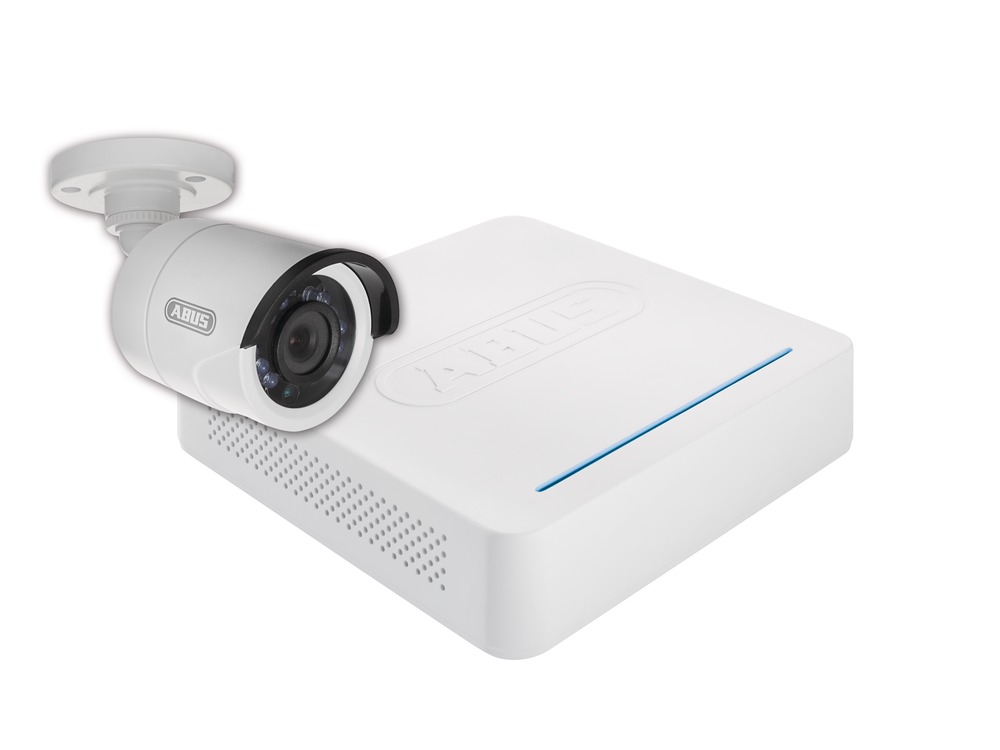

Video Surveillance Kit: Digital Recorder + 1 Outdoor Camera (Art. no. TVVR30104)

Description
Technical data
Scope of delivery
Downloads
FAQ

Special product features:

Set: 4-channel recorder, 1 x day/night vision outdoor camera, universal power supply unit and 1 x 20 m coaxial cable
Varied camera installation options - whether indoors or outdoors
Simple design and high protection class (IP66)
Internet and mobile access to live pictures and recordings
500 GB capacity for approx. 5 weeks' ''non-stop'' recording included

Simple and intuitive operation
Recording triggered by motion detection, schedule or permanent
2 USB interfaces for quick and simple storing of important recordings.
Detailed high-resolution analogue recording in real time
Mobile access using the ABUS iDVR app

Video surveillance made easy
This video surveillance kit with a 4-channel recorder and built-in 500 GB hard drive, a day/night outdoor camera, universal power supply unit and coaxial cable provides video monitoring that is easy to install and operate, and can be used both indoors and outdoors.

State-of-the-art recording technology
The compact digital camera with H.264 compression and a VGA output provides 4 channels for recordings at up to 25 frames per second (real time) and 5 different resolutions (max. 960 x 576 pixels). The video images are stored in excellent quality, take up very little space on the hard drive (the recorder has a built-in 500 GB hard drive) and are optimised for fast network access. Depending on the setting, recording is started manually, according to a schedule, or by motion sensor. The kit also includes: IR camera with 600 TV lines and 3.6 mm fixed lens (angle of view: 68°) with integrated IR LEDs for day/night operation outdoors (IP66).

Fast and simple installation
Fast and easy installation is guaranteed with the 20 m combination cable and power supply unit provided.

Technical data:

Art. no.:

TVVR30104

4-Channel Digital Recorder - TVVR30004

Zum Produkt
Technical data

Art. no.:	TVVR30004
Total network throughput (input/output):	( -/60 Mbits)
Total frame rate:	100 fps
Dimensions:	200 x 45 x 200 mm (W x H x D) mm
Alarming:	Acoustic warning, OSD signal, e-mail
Views:	1 / 4
Recording resolution @ frame rate per camera:	WD1, 4CIF, 2CIF, CIF, QCIF @ 25fps
Live view resolution:	VGA: 1080P: 19201080/60Hz, 12801024/60Hz, 720P: 1280720/60Hz，1024768/60Hz, BNC Output: PAL: 704×576, NTSC: 704×480
Recording modes:	Manual, schedule, motion detection
User levels:	2
Operating mode:	triplex
Width:	200 mm
Storage:	1 x USB 2.0
DDNS:	Yes
Total frame rate (PAL):	25
Simultaneous network access:	128 camera connections
Height:	45 mm
Compression levels:	6
Length:	200 mm
Power consumption:	<13 w="" (without="" hdd)="">
Max. operating temperature:	+ 55 °C
Min. operating temperature:	- 10 °C
Monitor outputs:	1 x BNC (1.0 Vp-p, 75 ohm), 1 x VGA
Net weight:	0.8 kg
Network access:	1 x RJ45 10/100 Mbps
Network functions:	Live view, playback, data export
NTP:	Yes
DC voltage supply:	12 VDC V
Storage medium:	1 x 2,5'' SATA HDD
OSD language:	German, English, French, Dutch, Danish, Italian, Polish, Spanish, Swedish, Russian
Control:	USB mouse
Power consumption:	1,5 A mA
Search modes:	By event, date and time, smart search
Analog video channels:	4
Video compression:	H.264
Pre-alarm/post-alarm memory:	0–30 sec. / 5–900 sec. s

2.5'' Internal hard disk drive with 500 GB capacity - TVVR30004H

Zum Produkt
Technical data

Art. no.:	TVVR30004H
Dimensions:	70 x 10 x 100 (W x H x D) mm
Connections:	S-ATA
Width:	70 mm
Height:	10 mm
Capacity:	500 GB
Length:	100 mm
Power consumption:	max. 1,4 W
Max. operating temperature:	60 °C
Min. operating temperature:	0 °C
Net weight:	0.12 kg
AC voltage supply:	- V
DC voltage supply:	- V

Day/Night Mini Outdoor Camera - TVCC40010

Zum Produkt
Technical data

Art. no.:	TVCC40010
Dimensions:	150 x 70 mm
Connections:	Video signal (BNC), power supply (DC)
Image sensor:	1/3" DIS
Pixels (effective):	720 (H) x 480 (V) pixel
Aperture at minimum illumination (color):	0,1 Lux
Aperture at minimum illumination (IR):	0 Lux
Width:	70 mm
Focal length:	3,6 mm
Electronic shutter:	1/25 ~ 1/15.000 sek.
Backlight compensation:	Yes
Height:	150 mm
Horizontal angle of view:	68,4 °
IR LEDs:	12
IR range:	10 m
Camera type:	Day/night outdoor camera
Max. operating temperature:	50 °C
Max. humidity:	max. 90 %
Min. operating temperature:	- 20 °C
Minimum illumination (color):	0,1 Lux
Minimum illumination (IR):	0 Lux
Net weight:	0.36 kg
Lens:	3.6 mm, fixed lens mm
Noise reduction:	> 52 dB
IP protection class:	66
DC voltage supply:	12 V
Power consumption:	420 mA
Day/night switching:	Electromechanical IR-cut filter
TVL:	600 TVL
Video system:	PAL / NTSC
