Technical drawing
Shackle locked on both sides Shackle made from hardened steel Cylinder can be taken out and can be rekeyed to match an existing key New sophisticated plating for extreme corrosion resistance
|||

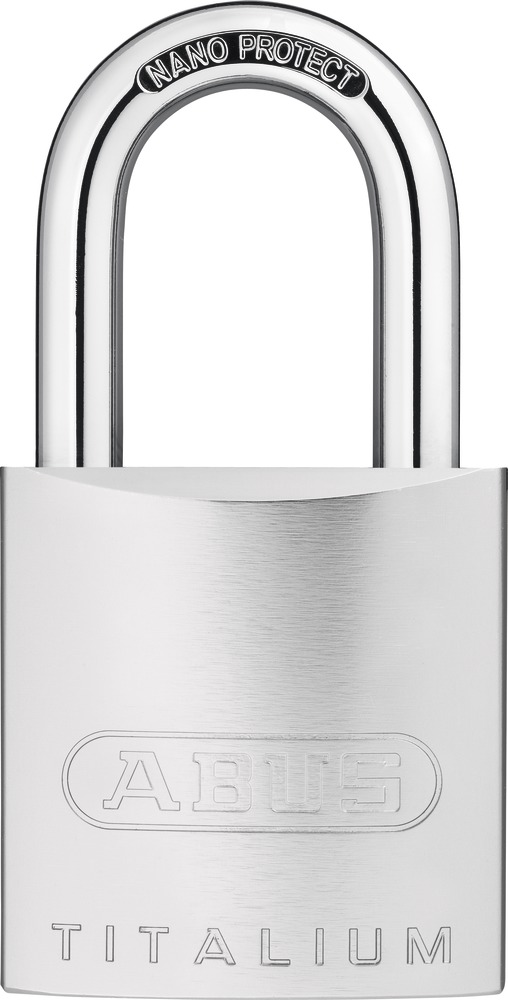

Padlock TITALIUM™ 86 TITALIUM™

TITALIUM™ padlock which accommodates door half cylinders

Technology:

  • Solid lock body made from TITALIUM™ aluminium alloy - high security with low weight
  • Hardened steel shackle with NANO PROTECT™ coating
  • Customary door half cylinders can be integrated easily without special tools
  • Double bolted
  • Possible to integrate into keying systems

Operation and use:

  • To secure goods/valuables of higher value or at a high risk of theft

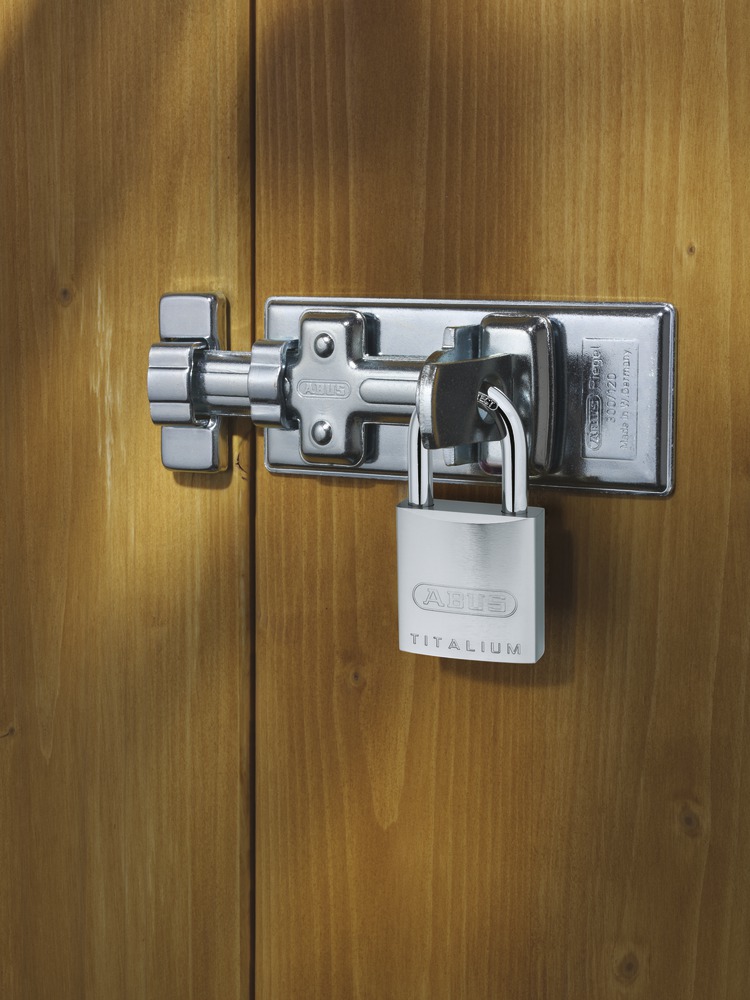

  • Doors, gates, cupboards, lockers, tool boxes, etc.

Variants:

  • Sizes: 45 and 55mm
  • IB: with stainless steel shackle

Technical data:

Art. no.: 58500
Width a [mm]: 55
Horizontal clearance b [mm]: 26.5
Vertical clearance c [mm]: 39.5
Shackle diameter d [mm]: 9.5
Depth e [mm]: 27.5
Height f [mm]: 106.5
Version: without cylinder
Level: 8
Weight [g]: 250

Downloads:

Padlock TITALIUM

TITALIUM™

TITALIUM™ padlocks, from security specialist ABUS, represent a new dimension in security. Made from an innovative material, they represent high security at a significantly reduced weight.The TITALIUM™ material is a special aluminium alloy that uniquely combines a high level of torsion with lightness. Like in the aircraft industry, with TITALIUM™, ABUS is concentrating on two fundamental qualities: maximum strength and low weight. This ...
