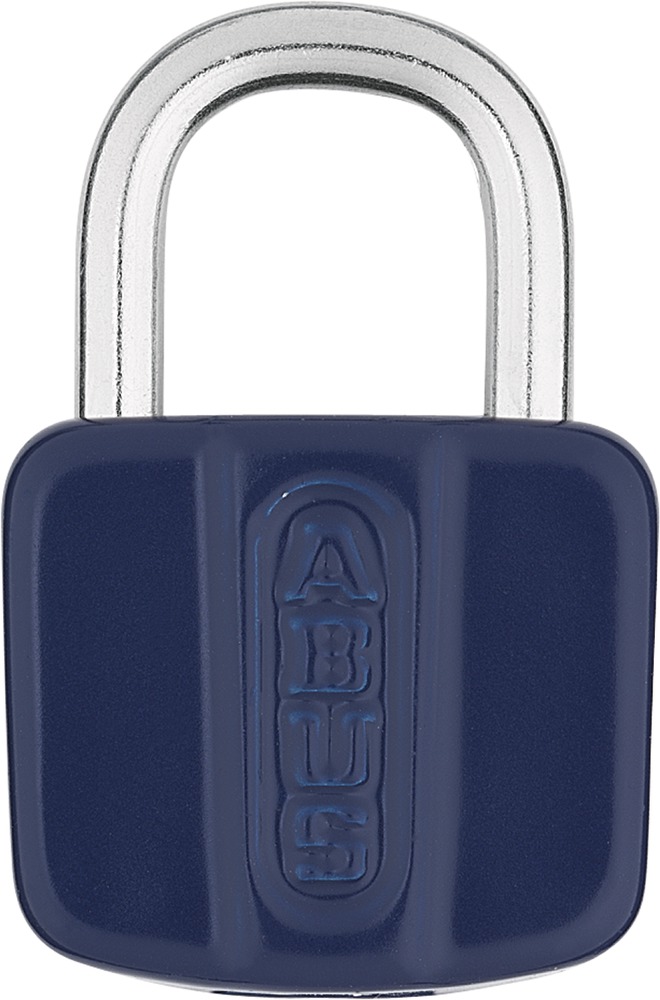

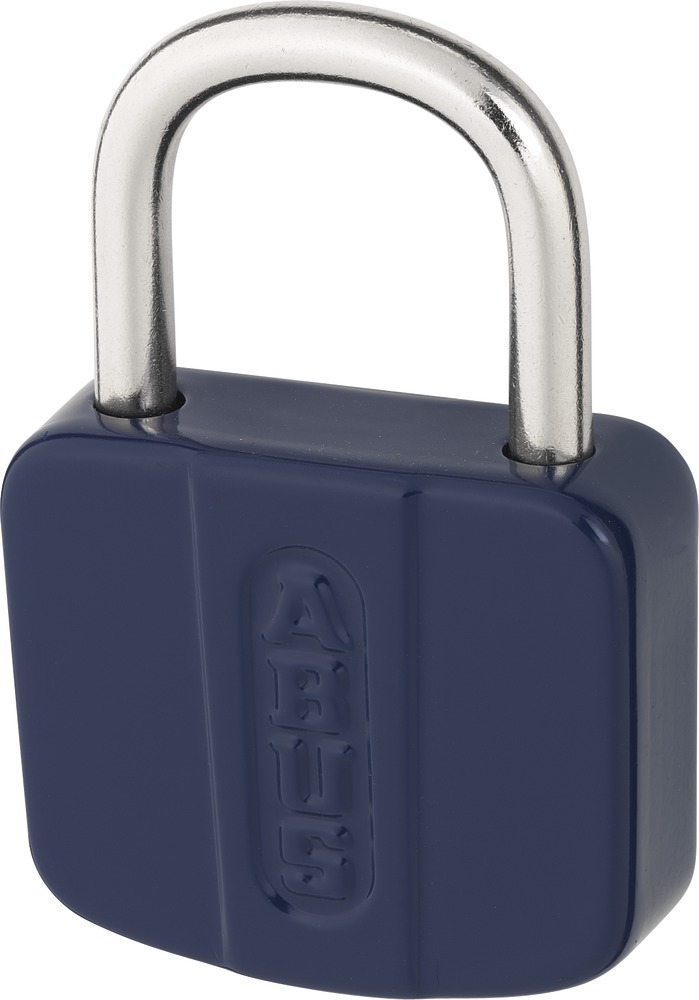

Padlock originial 16 frontal view Padlock originial 16 view right Padlock originial 16 frontal view Technical drawing
Level 1 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production
|||

Padlock Originial 16/45

Traditional padlock

Technology:

  • No rivets
  • Automatic locking
  • Nickel plated steel shackle
  • Various colours

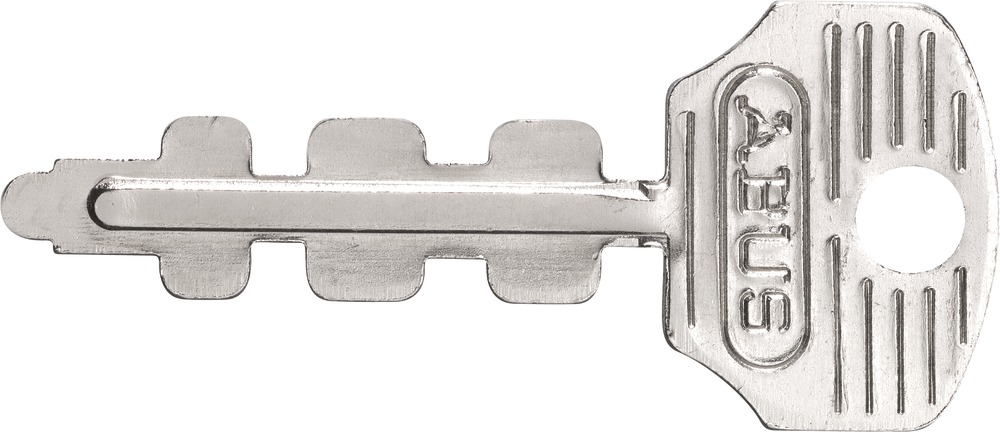

  • Incl. two keys

Operation and use:

  • To secure valuables/goods of lesser value or at a low risk of theft
  • To secure e.g. cupboards, drawers, bicycle baskets, etc.

Variants:

  • Sizes: 25, 35, 45 mm

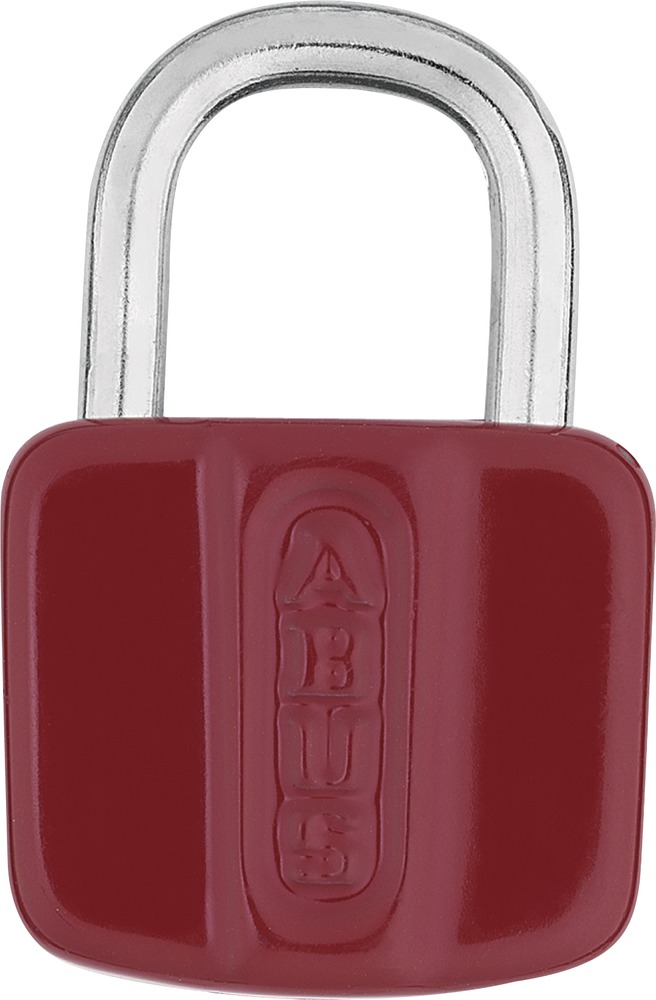

  • Colours: red, blue

Technical data:

Art. no.: 01012
Width a [mm]: 44.5
Horizontal clearance b [mm]: 24
Vertical clearance c [mm]: 23.5
Shackle diameter d [mm]: 5.5
Depth e [mm]: 17.5
Height f [mm]: 68
Level: 1

Variants:

Padlock Originial 16/45
Art. no. 01012
Width a [mm]: 44.5
Level: 1
Padlock Originial 16/25
Art. no. 01000
Width a [mm]: 25
Level:
Padlock Originial 16/35
Art. no. 01006
Width a [mm]: 35
Level:

Downloads:

ABUS original padlock

Original

ABUS Original: tried and tested padlock for simple applications. These padlocks are manufactured without rivets and enable automatic locking without a key by pressing down on the shackle.

Other interesting products from the category Original
