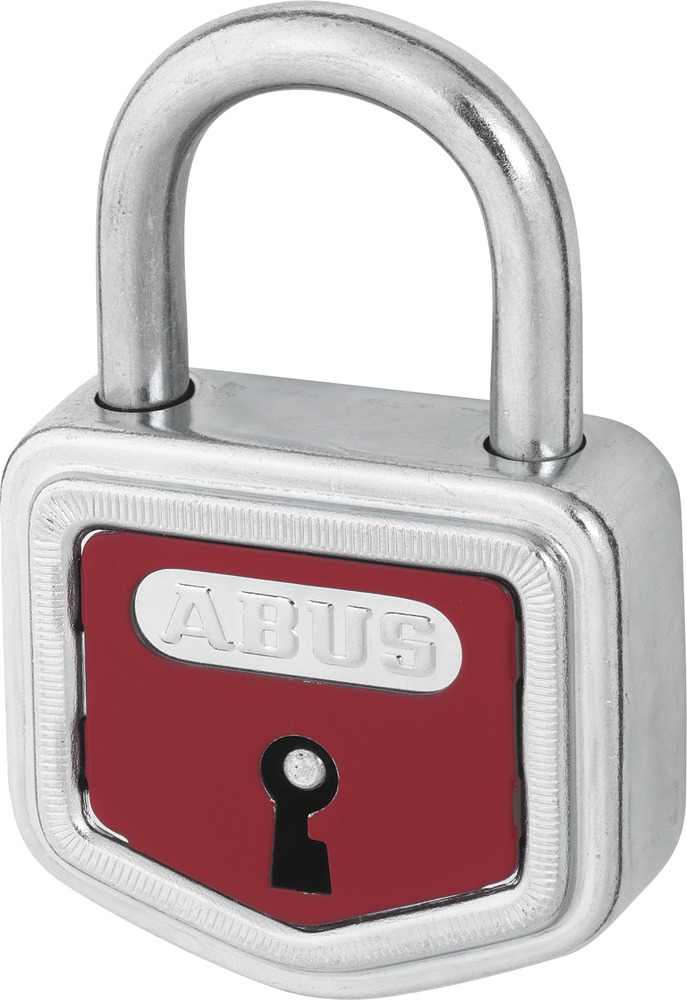

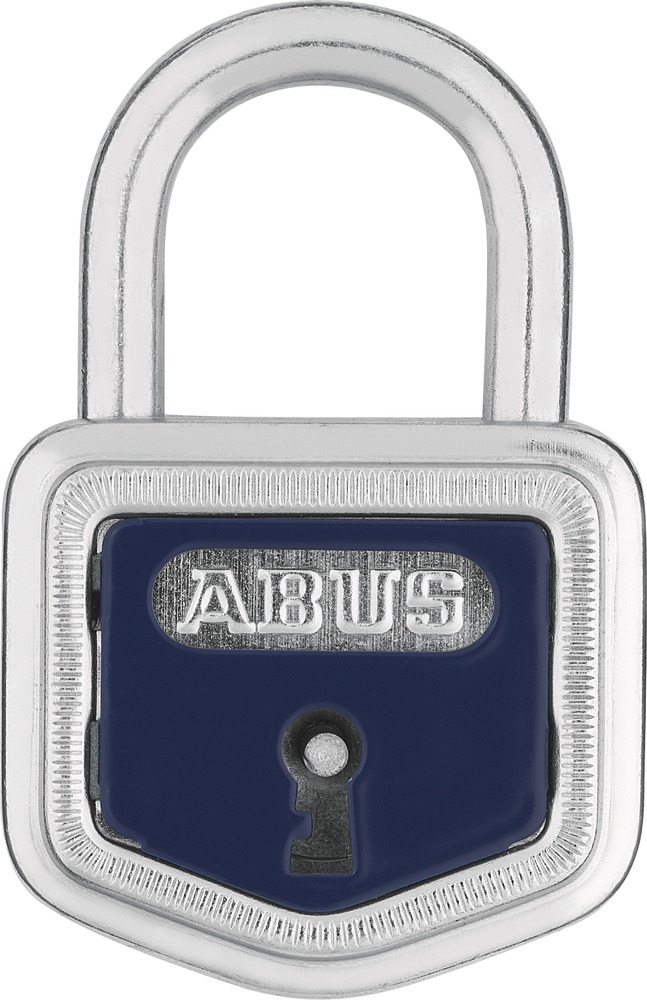

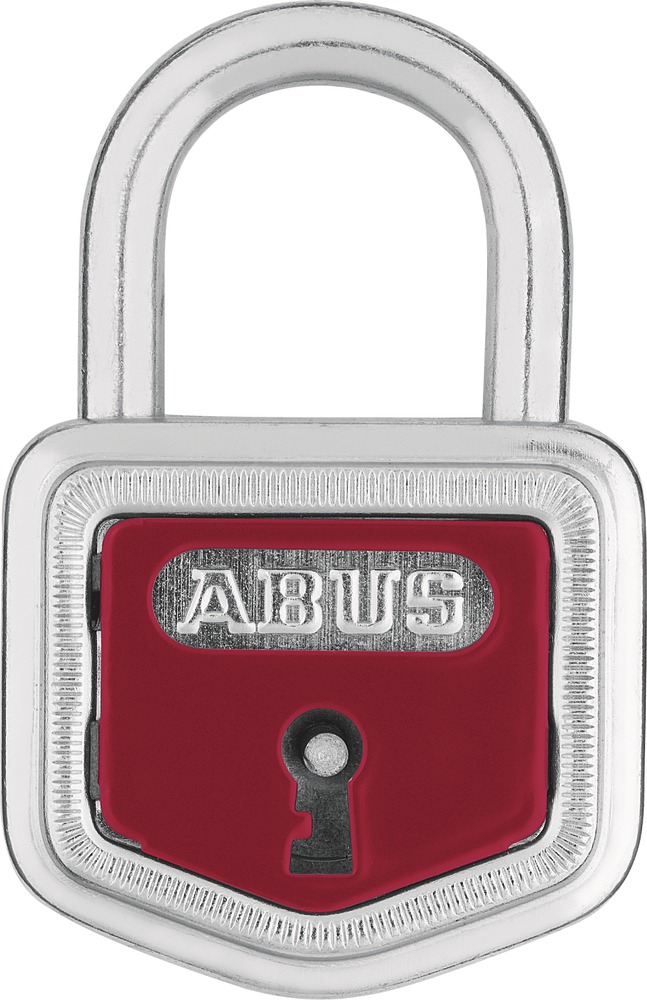

Padlock 105/40 blue frotnal view Padlock 105/40 red view right Padlock 105/40 red frontal view Technical drawing
Level 2 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production
|||

Padlock Originial 105/40

Traditional padlock

Technology:

  • Nickel plated shackle
  • Rivet-free
  • Automatic locking

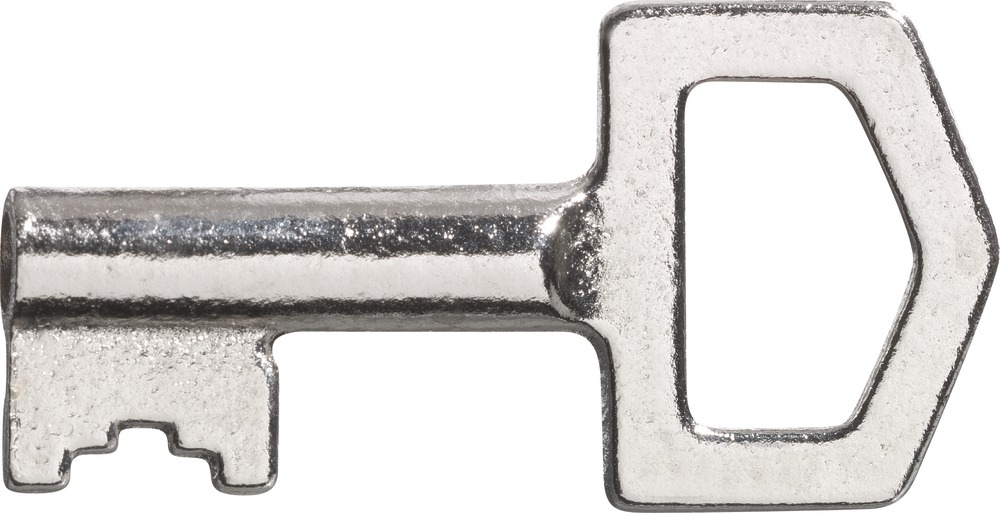

  • Incl. two keys

Operation and use:

  • To secure valuables/goods of lesser value or at a low risk of theft
  • To secure e.g. cupboards, drawers, barns, garden gates, bicycle baskets, etc.

Variants:

  • Sizes: 30, 40, 50 mm
  • Colour: red, blue

Technical data:

Art. no.: 01463
Width a [mm]: 40
Horizontal clearance b [mm]: 20
Vertical clearance c [mm]: 20.5
Shackle diameter d [mm]: 5.5
Depth e [mm]: 16.5
Height f [mm]: 61.5
Level: 2

Variants:

Padlock Originial 105/40
Art. no. 01463
Width a [mm]: 40
Level: 2
Padlock Originial 105/30
Art. no. 01457
Width a [mm]: 30
Level:
Padlock Originial 105/50
Art. no. 01469
Width a [mm]: 50

Downloads:

ABUS original padlock

Original

ABUS Original: tried and tested padlock for simple applications. These padlocks are manufactured without rivets and enable automatic locking without a key by pressing down on the shackle.
