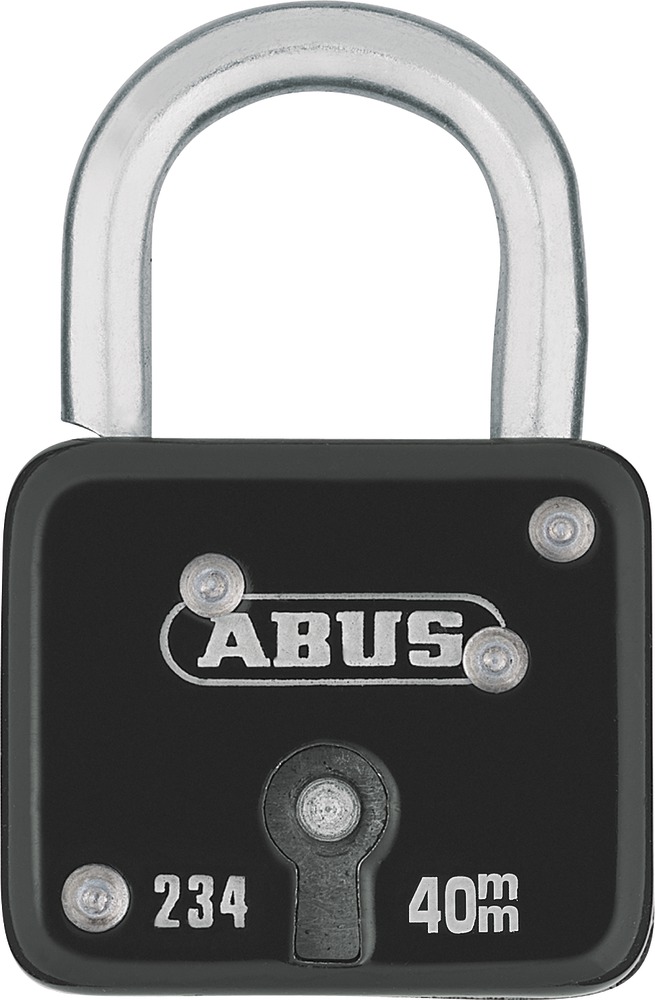

Lever lock 234/40 frontal view Technical drawing
Level 3 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production
|||

234/40

Lever lock according to DIN 7465 for padlocks

Technology:

  • Solid steel lock with levers and swinging shackle
  • Upon request available with side shackle and chain to fix the lock
  • Key retaining: key is needed for locking (Lock retains key until locked)
  • incl. two keys

Operation and use:

  • To secure valuables/goods of lesser value or at a low risk of theft
  • To secure e.g. cupboards, drawers, barns, garden gates, bicycle baskets, etc

Variants:

  • Sizes: 30, 40 and 50 mm

Technical data:

Art. no.: 01654
Width a [mm]: 40
Horizontal clearance b [mm]: 22
Vertical clearance c [mm]: 19.5
Shackle diameter d [mm]: 6
Depth e [mm]: 15.5
Height f [mm]: 60
Level: 3

Variants:

234/40
Art. no. 01654
Width a [mm]: 40
Level: 3
234/30
Art. no. 01649
Width a [mm]: 30
Level:
234/50
Art. no. 01673
Width a [mm]: 50
Level:

Downloads:

Tumbler lock

Lever

The tried and tested ABUS tumbler locks that meet DIN 7465 are the universal classics. The galvanised tumbler lock is also suitable for outside use. ABUS tumbler locks are available with side chain or integrated keyhole cover. ...
