Padlock 37RK/80 frontal view Lighted key Technical drawing
Level 10 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production Replacement cylinders and keys can be produced on presentation of code card Worldwide proven protection mechanism against manipulation and picking Solid steel ball locking Shackle locked on both sides Cylinder can be taken out and can be rekeyed to match an existing key Freeze spray attack resistant Bolt cutter attack resistant Saw attack resistant Drill attack resistant High pulling resistance (withstands pulling force over 8 tons) Shackle made from hardened steel
Test Seal of the Svensk Brand- och Säkerhetscertifiering AB – Stockholm, Sweden (SBSC) Test Seal of SKG-The Netherlands CEN corresponds to the European norm for padlocks EN-12320
|||

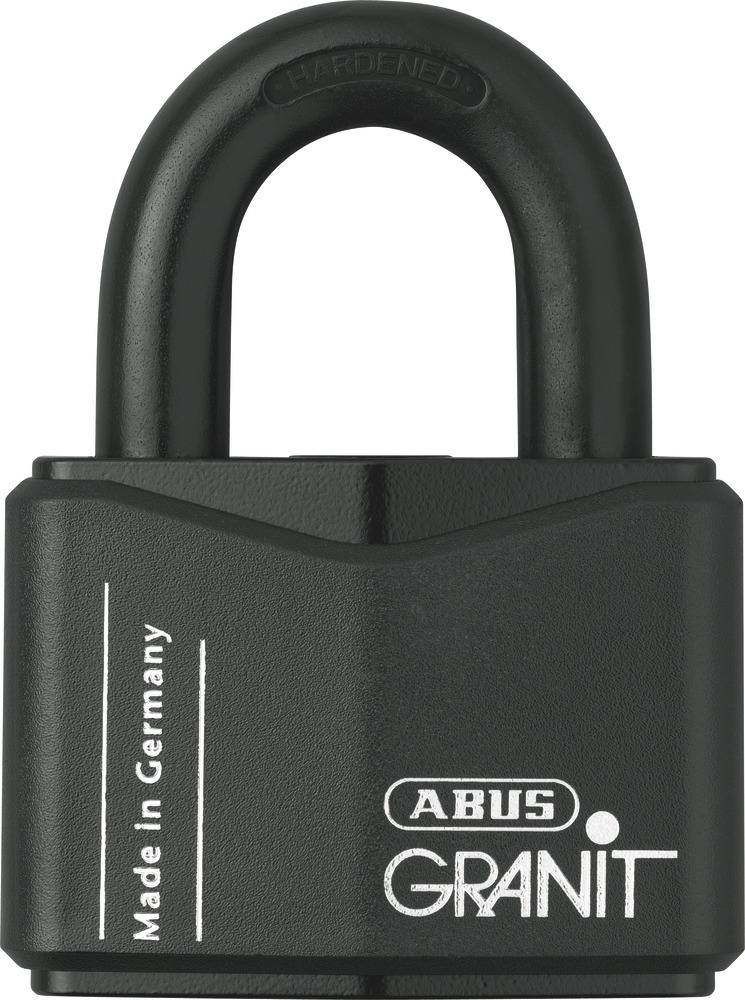

Padlock 37RK/70

For highest security requirements

Technology:

  • ABUS-Plus disc cylinder: highest protection against manipulation, extremely high number of key differs
  • Cylinder inserted from the top: optimum drill and pull resistance
  • Body and shackle made from hardened alloy steel
  • Black GRANIT™ protection for even more corrosion resistance
  • RK: cylinder can be re-keyed to match an existing key
  • Shackle guard protects against attacks with tools
  • Shackle can be taken out
  • Supplied with two keys, one with LED torch

Operation and use:

  • To secure valuables/goods of great value or at a very high risk of theft
  • Meets special requirements of insurance companies
  • Certified and approved padlock
  • To secure e.g. warehouses, factory gates, containers and lorries

Variants:

  • Size: 70 mm
  • Long shackle (HB): 70HB100

Technical data:

Art. no.: 20117
Width a [mm]: 77
Horizontal clearance b [mm]: 29
Vertical clearance c [mm]: 35
Shackle diameter d [mm]: 14
Depth e [mm]: 37
Height f [mm]: 103
Level: 10
Weight [g]: 980

Variants:

Padlock 37RK/70
Art. no. 20117
Width a [mm]: 77
Level: 10
Padlock 37RK/70HB100
Art. no. 45091
Width a [mm]: 77
Level: 10
