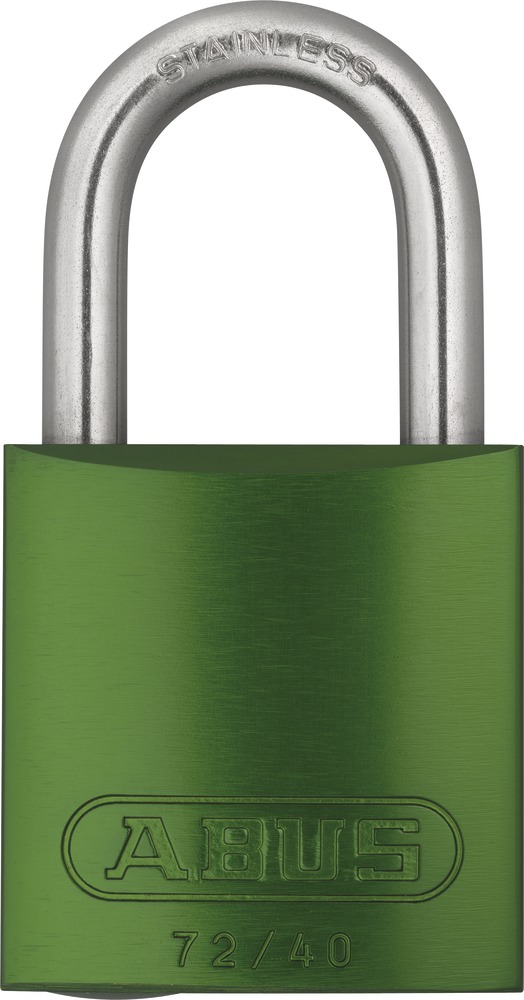

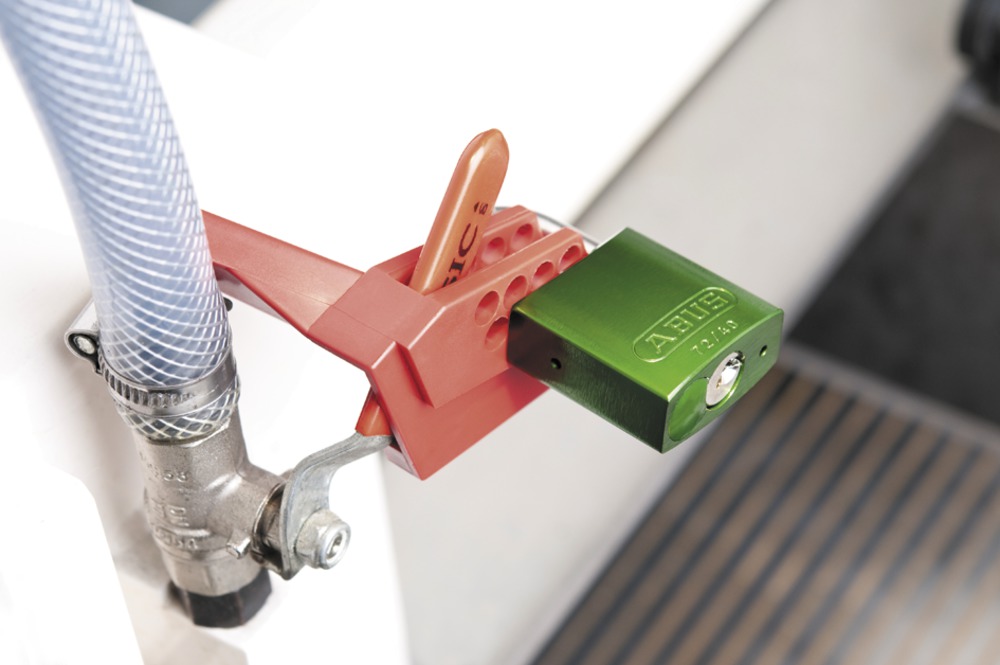

Padlock ECOLUTION™ 72IB/40 frontal view Padlock ECOLUTION™ 72IB/40 example of application Technical drawing
Level 6 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security Special lubricant suitable for use in food production according to FDA 21 CFR178.3570 and USDA NSF H1 Zero waste production policy at ABUS factories Packaging made from eco-friendly recycled material Product and packaging made of recyclable materials without PVC Special materials and coatings for ultimate corrosion-resistance and long life
|||

Padlock 72IB/40

Padlocks for a greener world

Technology:

  • Ecolution: environmental compatible, sustainable products thanks to high-quality, highly durable materials and coatings, innovative technology and non-toxic lubricants
  • Aluminium lock body - corrosion resistant
  • Double bolted

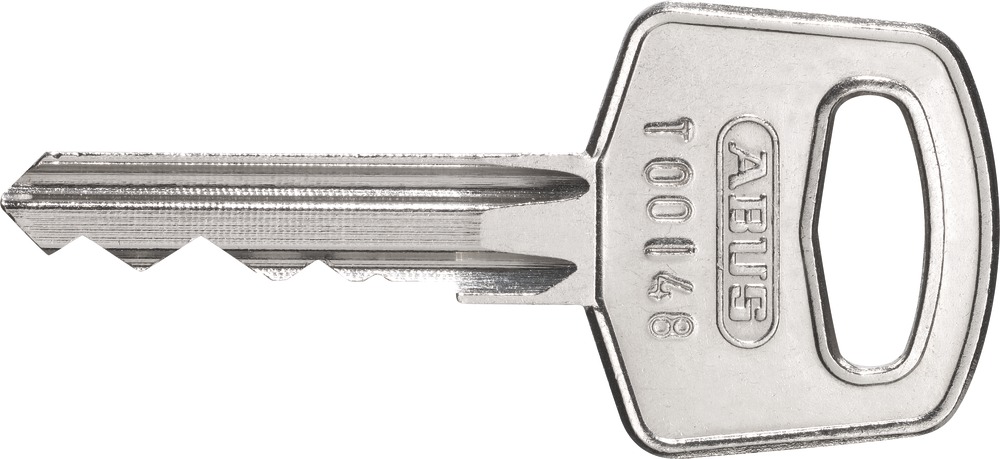

  • ABUS-Precision-6-pin cylinder, can be adapted to existing keys
  • Self-locking: locking without key by pushing down the shackle
  • IB: shackle made from stainless steel

Operation and use:

  • To secure goods of medium value or at an average risk of theft
  • To secure e.g. doors, gates, wardrobes, lockers, tool boxes, cellar windows, sheds, switch boards, etc.

Variants:

  • IB, 40 mm
  • Colour: green
  • Available keyed alike
  • Can be integrated into MK suites

Technical data:

Art. no.: 53814
Width a [mm]: 39
Horizontal clearance b [mm]: 20
Vertical clearance c [mm]: 27
Shackle diameter d [mm]: 6.5
Depth e [mm]: 19
Height f [mm]: 74
Version: ECOLUTION™
Level: 6
Weight [g]: 113

Variants:

Padlock 72IB/40
Art. no. 53814
Width a [mm]: 39
Level: 6

Downloads:

ECOLUTION™ padlock

ECOLUTION™

Innovative, corrosion-resistant coatings, high-quality materials for a long lifespan, lubricants suitable for use in the food industry, PVC-free vinyl coverings, packaging made from recycled and recyclable material – these "ingredients" form the basis for the new ABUS ECOLUTION™" product range. With an approach that is consistently committed to ecological protection, we are making a clear statement in support of the environment, while ...
