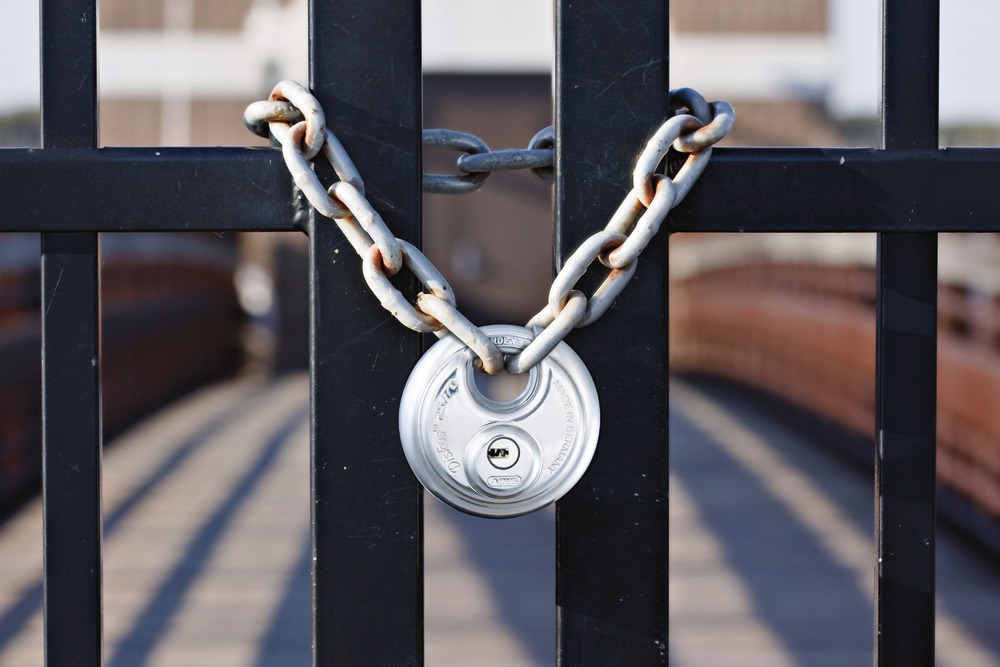

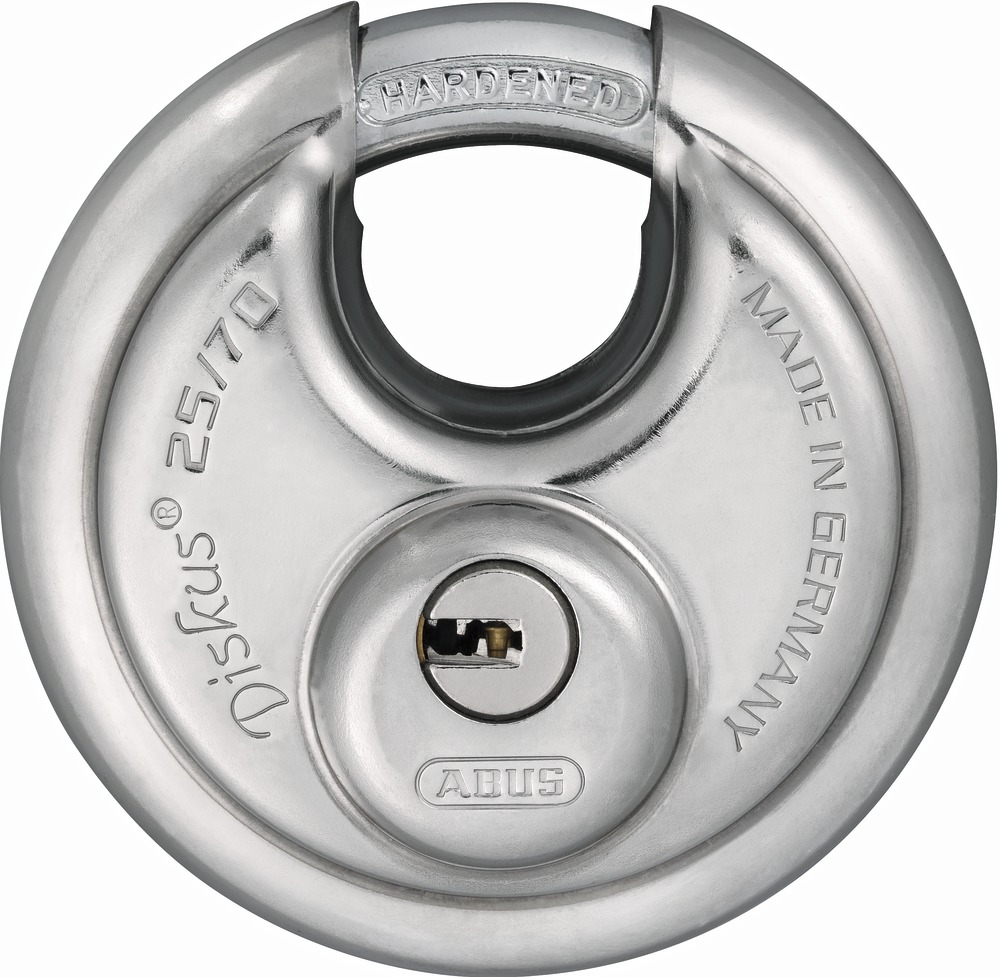

Padlock 25/70 frontal view Padlock 25/70 example of application Technical drawing
Level 8 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production Replacement cylinders and keys can be produced on presentation of code card New locks can be made according to a sample key Dimple key: no sharp edges and can be inserted either way up Shackle locked on both sides Bolt cutter attack resistant Saw attack resistant Hammer & impact attack resistant Rust-free: all elements of the lock are made from non-corrosive materials Shackle made from hardened steel
|||

Padlock 25/70 with five keys

Original ABUS Diskus® with reversible key system

Technology:

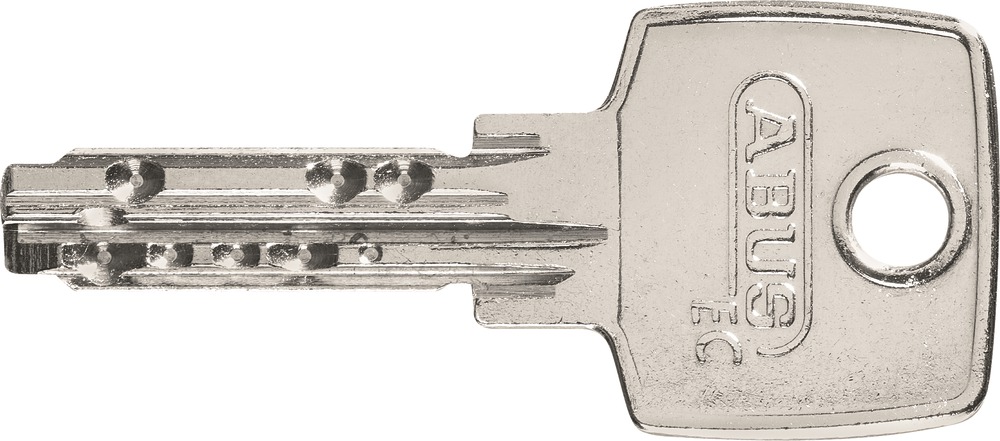

  • High precision reversible key with 8,000 key differs
  • Coded keys, spare keys can only be ordered with the code
  • Stainless steel - inside and outside
  • Hardened steel shackle
  • Original Diskus® design: 360° protection
  • Additional sawing protection
  • Sophisticated Diskus® welded seam for highest break resistance
  • Key retaining: key is needed for locking (lock retains key until locked)
  • Will be supplied with 5 keys
  • Made in Germany

Operation and use:

  • To secure valuables/goods of greater value or at a high risk of theft
  • To secure lorries, transporters, cellar doors, factory gates, etc.
  • Ideally used with ABUS Diskus® Hasp No. 140: virtually impossible to attack shackle

Variants:

  • Size: 70 mm

Technical data:

Art. no.: 32279
Width a [mm]: 71
Horizontal clearance b [mm]: 19.5
Vertical clearance c [mm]: 17
Shackle diameter d [mm]: 10
Depth e [mm]: 30
Height f [mm]: 71
Level: 8
Weight [g]: 323

Variants:

Padlock 25/70 with five keys
Art. no. 32279
Width a [mm]: 71
Level: 8
