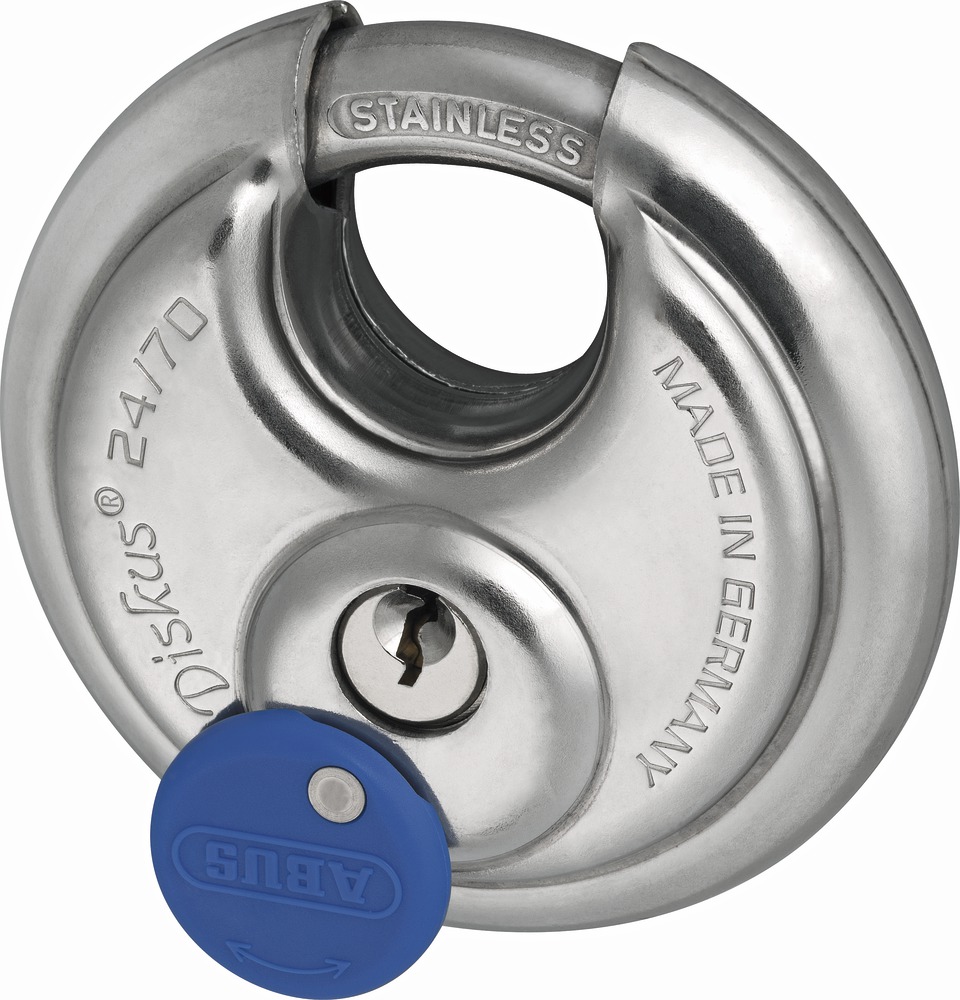

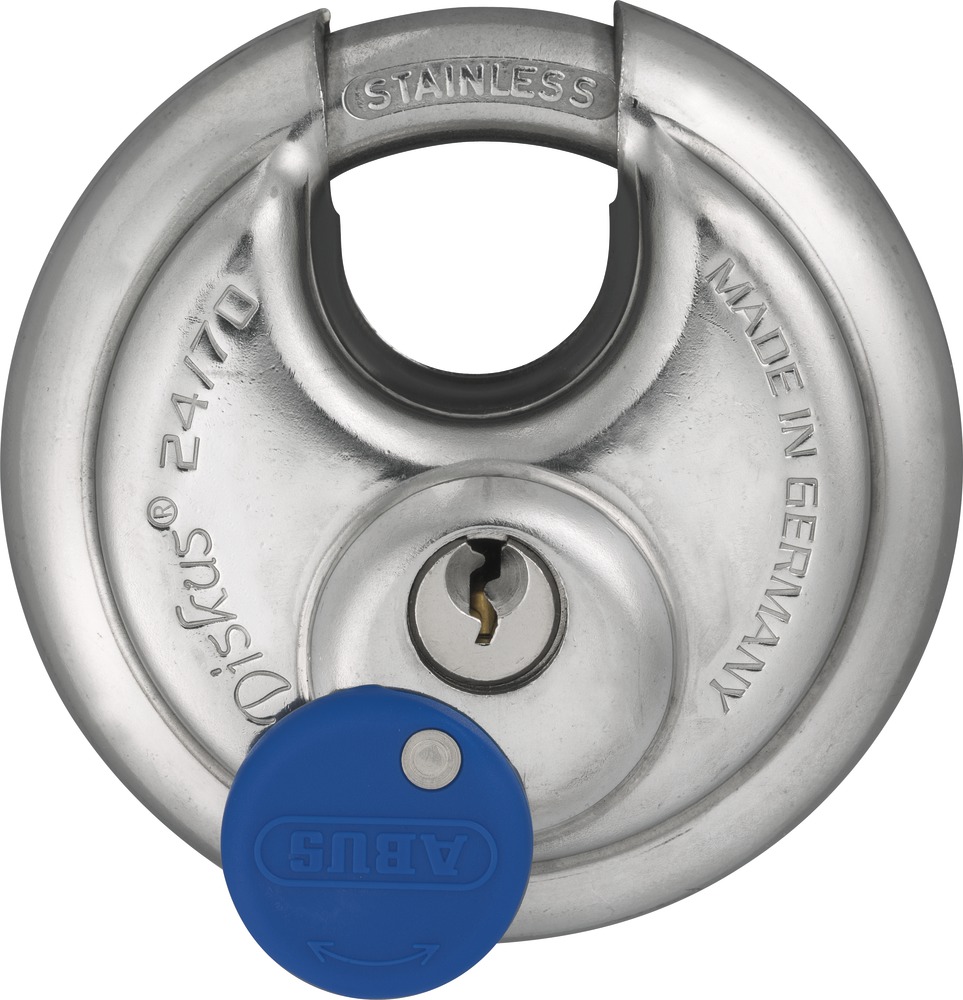

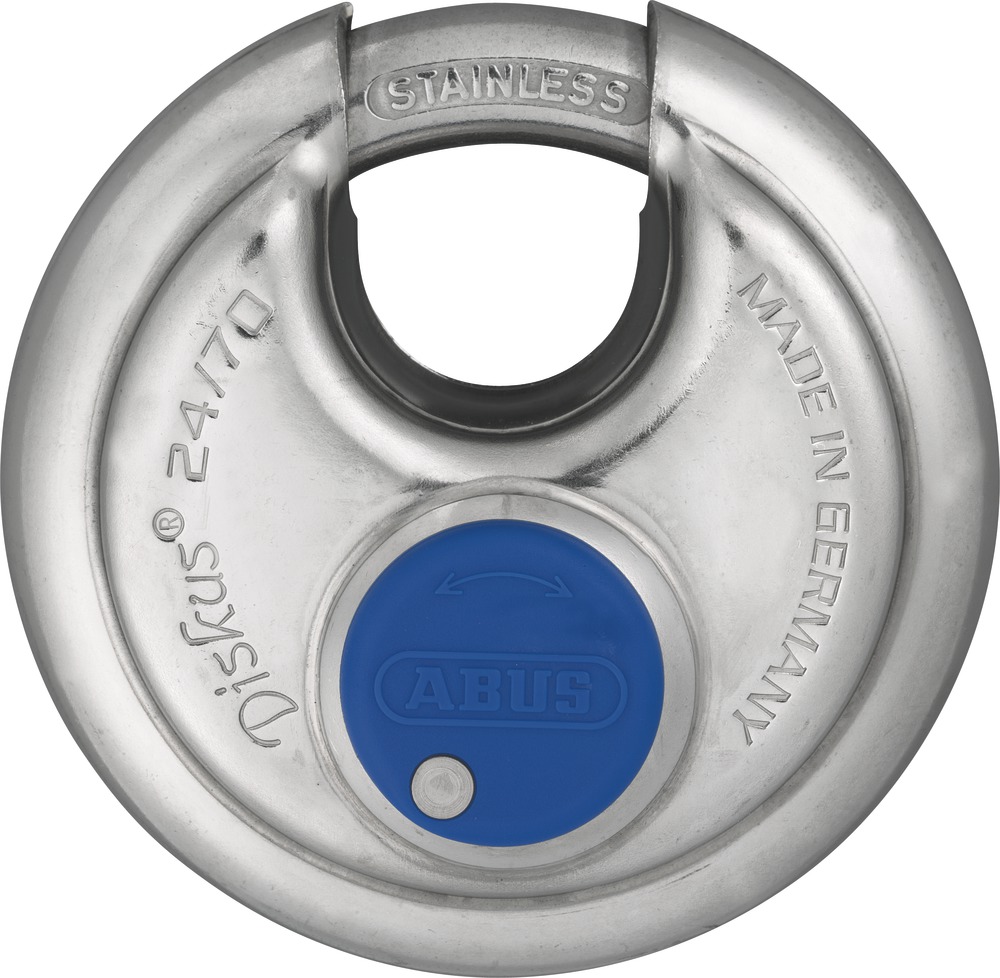

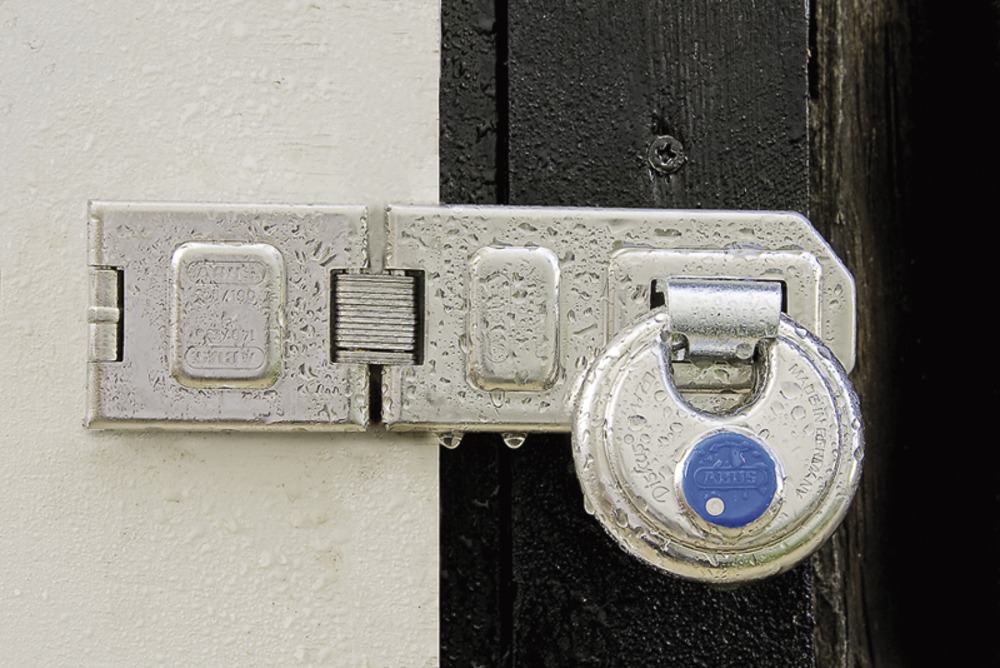

Padlock 24IB/70 frontal view Padlock 24IB/70 frontal view Padlock 24IB/70 view right Padlock 24IB/70 example of application

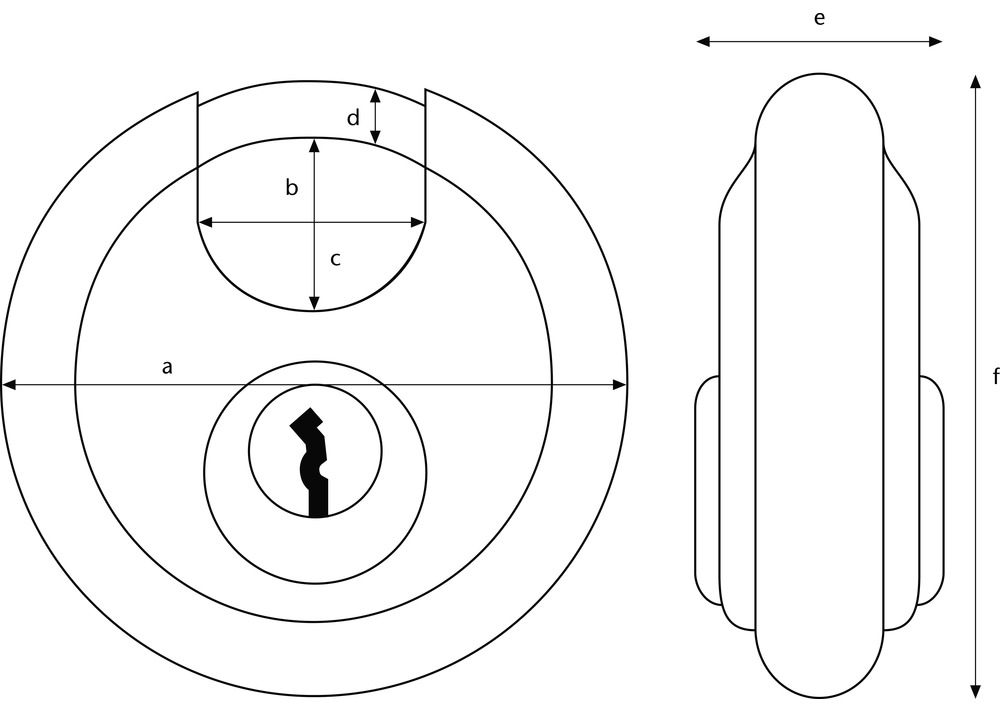

Technical drawing
Level 8 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production New locks can be made according to a sample key Shackle locked on both sides Paracentric keyway: resists professional picking by special key profile Bolt cutter attack resistant Saw attack resistant Hammer & impact attack resistant Rust-free: all elements of the lock are made from non-corrosive materials
|||

Padlock 24IB/70

Original ABUS Diskus® - 100% stainless steel security

Technology:

  • Body, inner parts and shackle made from stainless steel for extreme corrosion resistance
  • Cylinder cover - maximum protection against dirt and moisture (60 and 70 mm)
  • Cylinder nickel plated for enhanced corrosion resistance
  • Original Diskus® design: 360° protection
  • Additional protection against sawing
  • Sophisticated Diskus® welded seam for highest break resistance
  • Precision pin tumbler cylinder with anti-pick pins
  • Key retaining: locking only with the key (lock retains key until locked)
  • Made in Germany

Operation and use:

  • To secure valuables / goods of greater value or at a high risk of theft
  • Ideal for use in severe weather conditions (e.g. in coastal regions or ports)
  • To secure lorries, doors, gates, cellar doors, cupboars etc.
  • Ideally used with ABUS Diskus® hasp No. 140: virtually impossible to attack shackle

Variants:

  • Sizes: 50, 60, 70 mm

Technical data:

Art. no.: 02050
Width a [mm]: 70
Horizontal clearance b [mm]: 20
Vertical clearance c [mm]: 17
Shackle diameter d [mm]: 10
Depth e [mm]: 31
Height f [mm]: 70
Level: 8
Weight [g]: 320

Variants:

Padlock 24IB/70
Art. no. 02050
Width a [mm]: 70
Level: 8
Padlock 24IB/50
Art. no. 20317
Width a [mm]: 51
Level: 7
Padlock 24IB/60
Art. no. 05584
Width a [mm]: 60
Level: 7
