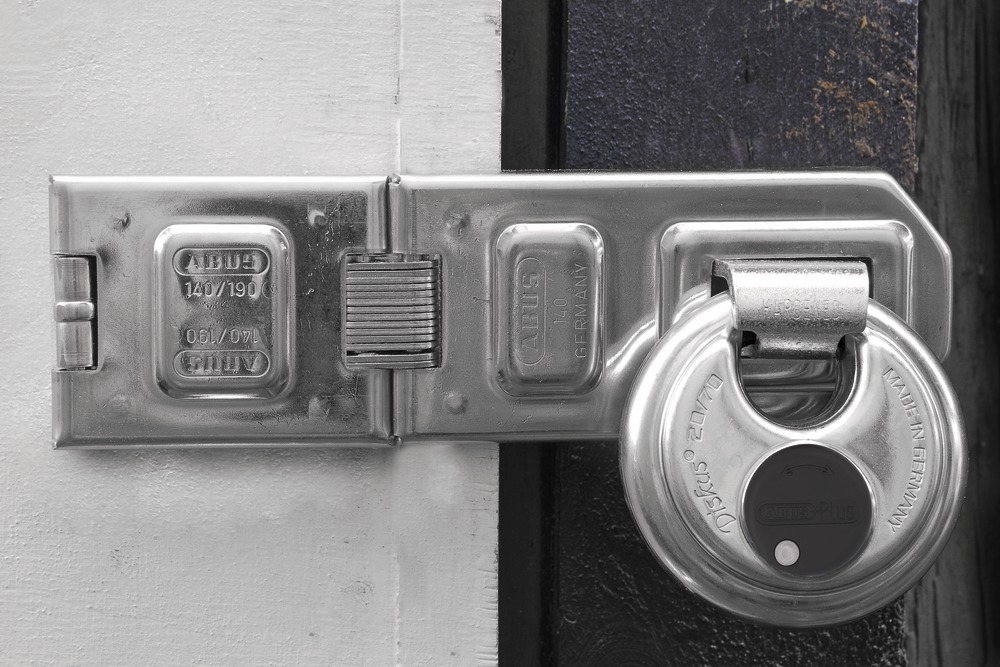

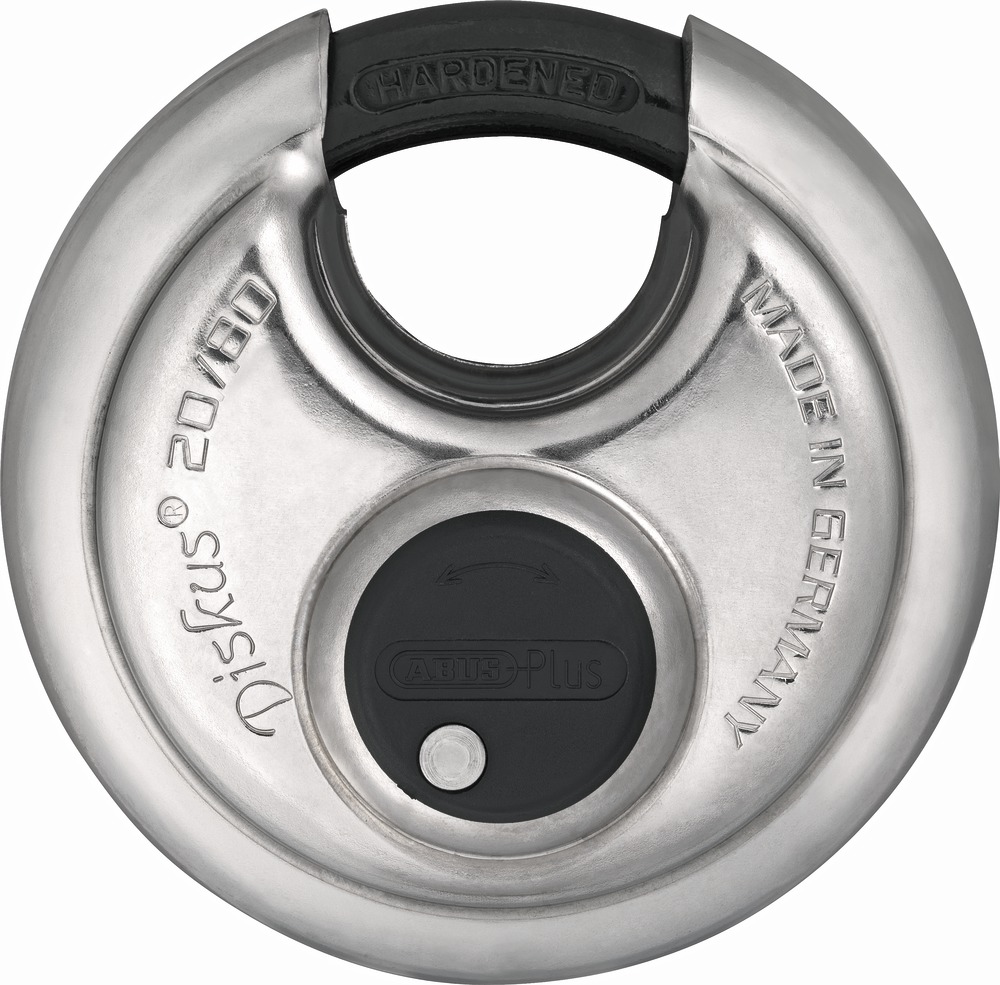

Padlock 20/80 frontal view Padlock 20/80 example of application Technical drawing

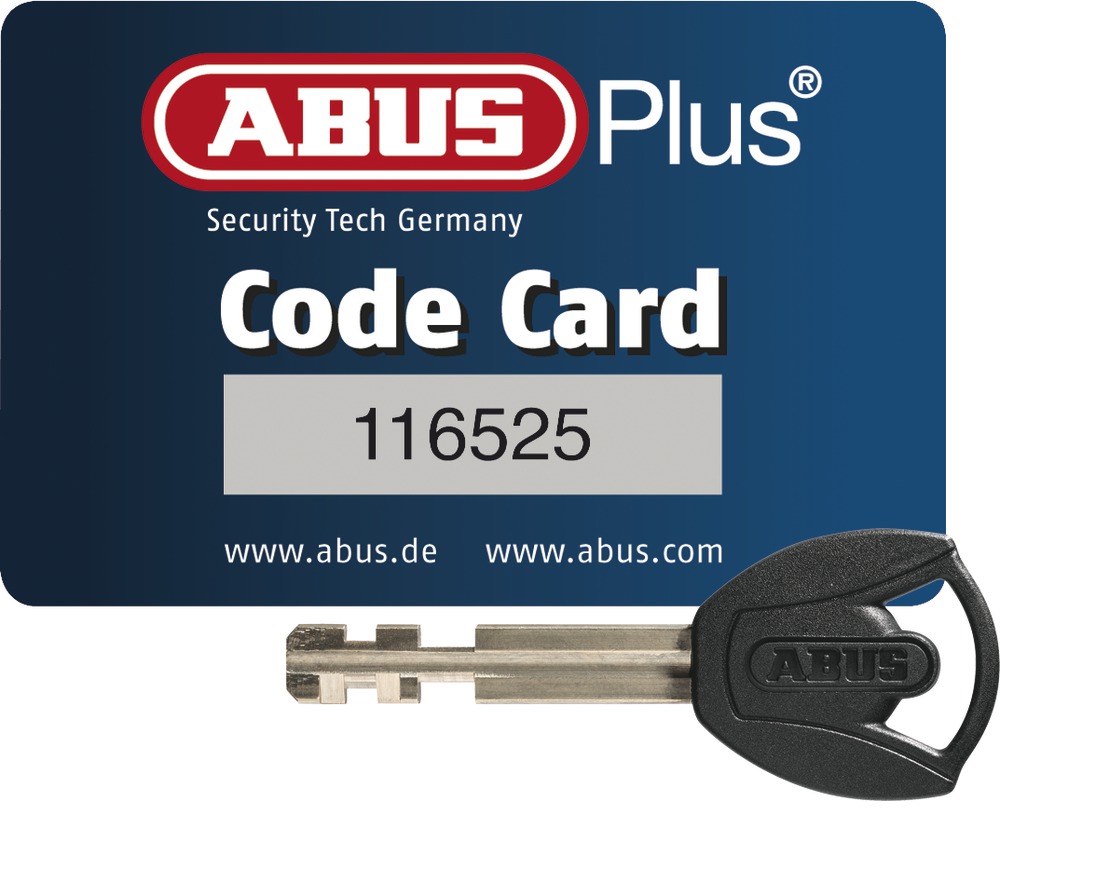

Level 9 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production Replacement cylinders and keys can be produced on presentation of code card Worldwide proven protection mechanism against manipulation and picking Shackle locked on both sides Bolt cutter attack resistant Saw attack resistant Hammer & impact attack resistant Rust-free: all elements of the lock are made from non-corrosive materials Shackle made from hardened steel
|||

Padlock 20/80

Original ABUS Diskus® with ABUS Plus locking system

Technology:

  • Stainless steel - outside and inside
  • Additional protection against sawing
  • Shackle made from hardened alloy steel
  • ABUS-Plus disc cylinder: highest protection against manipulation, 250.000 key differs, drilling and pulling protected
  • Round shape plus narrow shackle opening makes it difficult to access with heavy-duty tools
  • Sophisticated Diskus® welded seam for highest break resistance
  • Original Diskus® design: 360° protection
  • Key retaining: key is needed for locking (lock retains key until locked)
  • Made in Germany

Operation and use:

  • To secure valuables/goods of great value or at a very high risk of theft
  • To secure e.g. warehouses, industrial sites, factory gates, containers and lorries
  • Ideally used with ABUS Diskus® Hasp 140, => virtually impossible to attack shackle

Variants:

  • Sizes: 70, 80 mm

Technical data:

Art. no.: 08798
Width a [mm]: 80
Horizontal clearance b [mm]: 25
Vertical clearance c [mm]: 18
Shackle diameter d [mm]: 11
Depth e [mm]: 35
Height f [mm]: 81
Level: 9
Weight [g]: 469

Variants:

Padlock 20/80
Art. no. 08798
Width a [mm]: 80
Level: 9
Padlock 20/70
Art. no. 08854
Width a [mm]: 70
Level: 9
