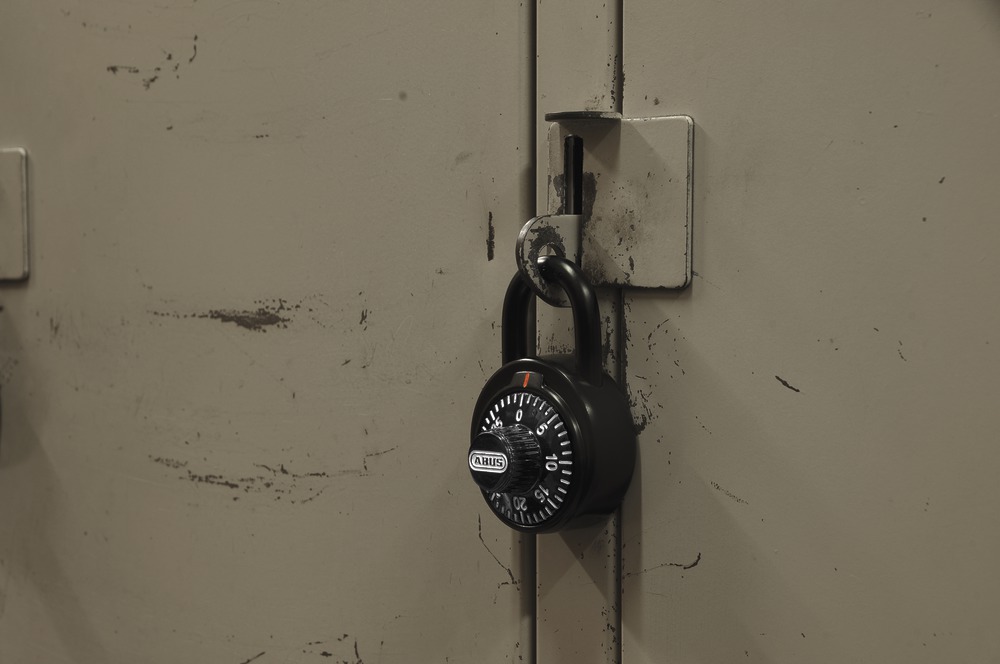

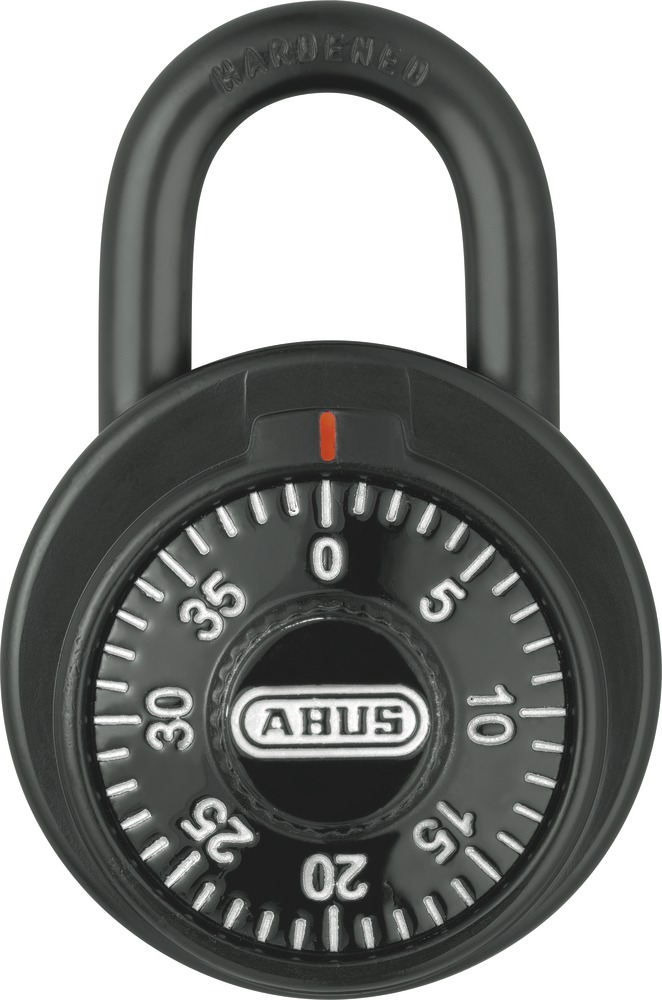

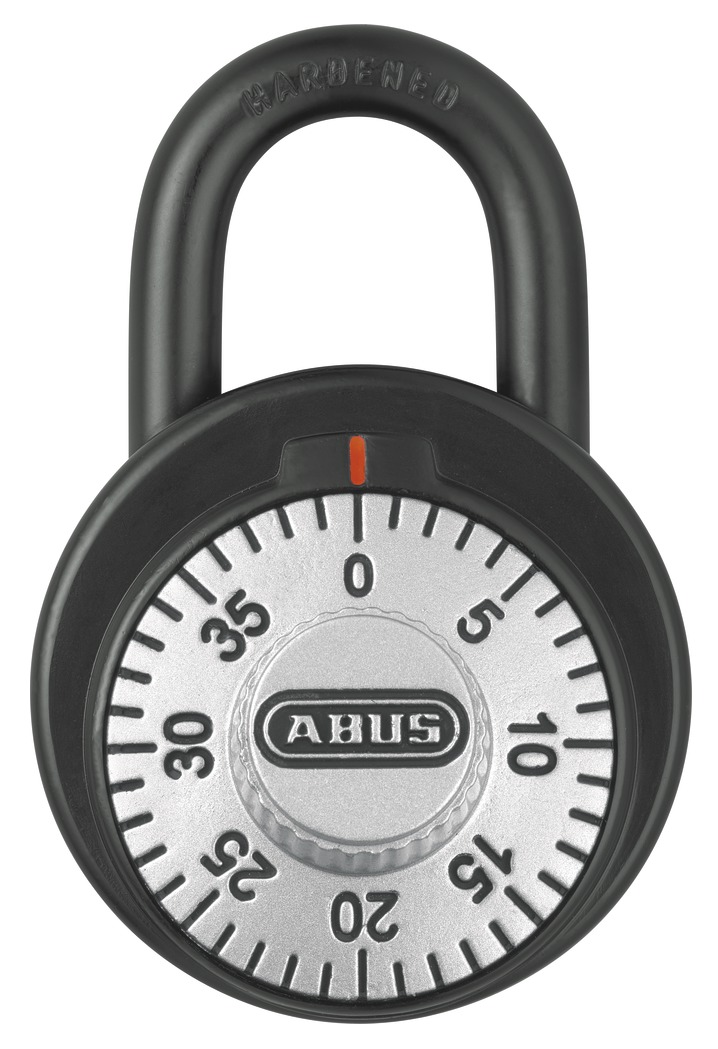

Combination lock 78/50 SB frontal view Combination lock 78/50 SB frontal view Combination lock 78/50 SB Combination lock 78/50 SB example of application Technical drawing
Level 3 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security Available master keyed: one key opens many different locks Self-locking: the lock is locked automatically by pushing down the shackle –no key needed for locking Shackle made from hardened steel
|||

Combination lock 78/50

Combination lock with safe locking mechanism

Technology:

  • Shackle made from hardened steel

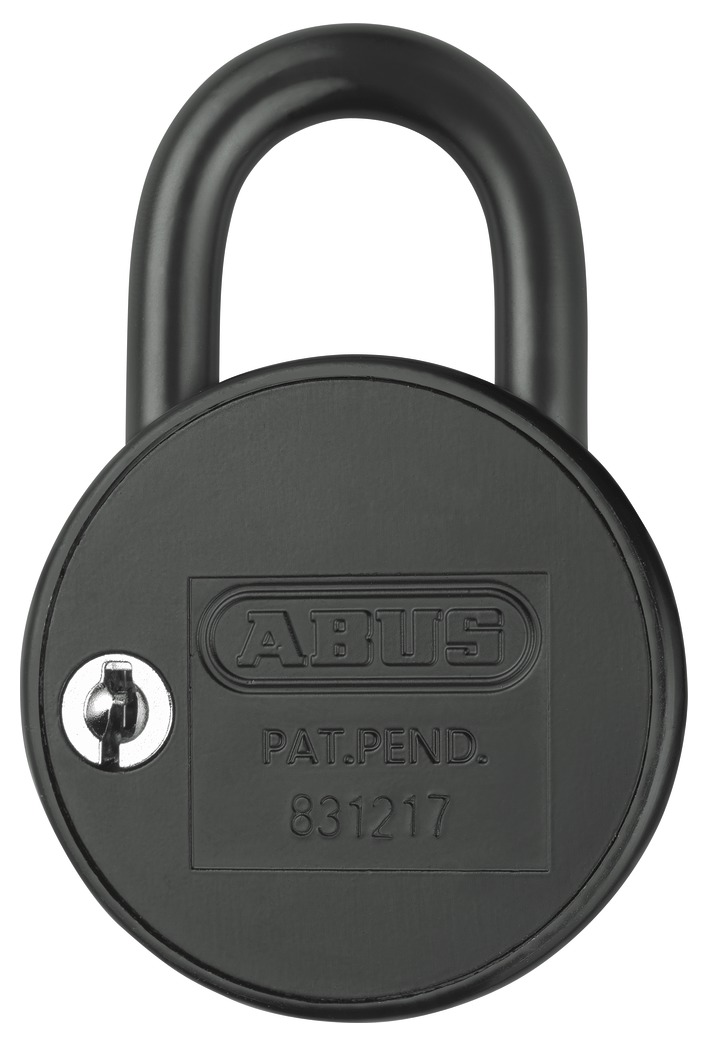

  • 78KC: Master key opens more than 2,000 individual combinations (master key function by cylinder on the back of the lock)
  • High protection against manipulation
  • Operation by turning the wheel to the given numbers
  • KTL-coating (black) for better corrosion protection
  • Special protection against the „shimming“ method (pat. pend.)

Operation and use:

  • To secure valuables/goods of lesser value or at a low risk of theft
  • Handy operation without key, e.g. lockers, cupboards, etc. in schools, companies, etc.

Variants:

  • Size: 50 mm, 78KC/50 (Key Control)

Technical data:

Art. no.: 33655
Width a [mm]: 48
Horizontal clearance b [mm]: 21
Vertical clearance c [mm]: 21.5
Shackle diameter d [mm]: 7
Depth e [mm]: 33
Height f [mm]: 75
Level: 3
Weight [g]: 160

Variants:

Combination lock 78/50
Art. no. 33655
Width a [mm]: 48
Level: 3
Combination lock 78KC/50
Art. no. 47670
Width a [mm]: 48
Level: 3

Downloads:

Combination lock

Combination

These compact combination locks are suitable for a range of uses even with different users, thanks to their special locking system. Applications include securing items of luggage, tool boxes or lockers in sports clubs.3-digit or 4-digitAs the padlocks are secured by means of a 3-digit or 4-digit number combination that can be set individually, they are ideal for use in the leisure industry as there is no need to carry a key.The combination ...
