Combination lock 158/40 SB frontal view Technical drawing
Level 4 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security Individual code can be reset Shackle locked on both sides Shackle made from hardened steel
|||

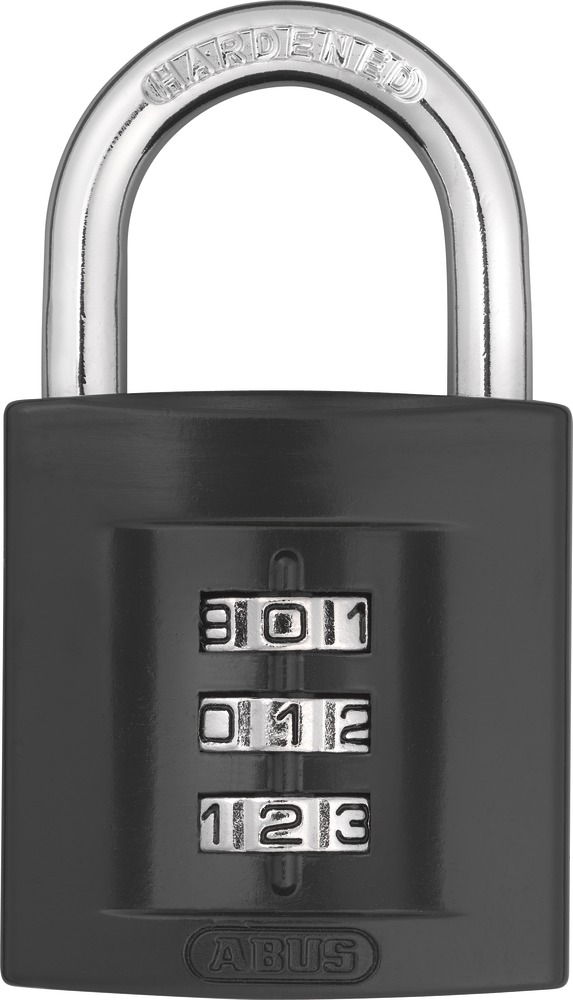

Combination lock 158/40

Combination lock with resettable code

Technology:

  • Solid zinc-die cast body
  • Double bolted shackle
  • Shackle made from hardened steel
  • 158/40: individually resettable 3-digit code
  • 158/50: individually resettable 4-digit code

Operation and use:

  • To secure valuables/goods of medium value or at an average risk of theft
  • Suitable to secure doors, gates, cupboards, lockers, tool boxes, cellar windows, sheds, switchboards, etc.
  • Ideally used with ABUS Hasps No. 100, 110, 300

Variants:

  • Sizes: 40, 50 mm

Technical data:

Art. no.: 46799
Width a [mm]: 42
Horizontal clearance b [mm]: 23
Vertical clearance c [mm]: 23.5
Shackle diameter d [mm]: 6
Depth e [mm]: 22
Height f [mm]: 73.5
Level: 4
Weight [g]: 164

Variants:

Combination lock 158/40
Art. no. 46799
Width a [mm]: 42
Level: 4
Combination lock 158/50
Art. no. 11886
Width a [mm]: 52
Level: 5

Downloads:

Combination lock

Combination

These compact combination locks are suitable for a range of uses even with different users, thanks to their special locking system. Applications include securing items of luggage, tool boxes or lockers in sports clubs.3-digit or 4-digitAs the padlocks are secured by means of a 3-digit or 4-digit number combination that can be set individually, they are ideal for use in the leisure industry as there is no need to carry a key.The combination ...
