Technical drawing
Level 2 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security Individual code can be reset
|||

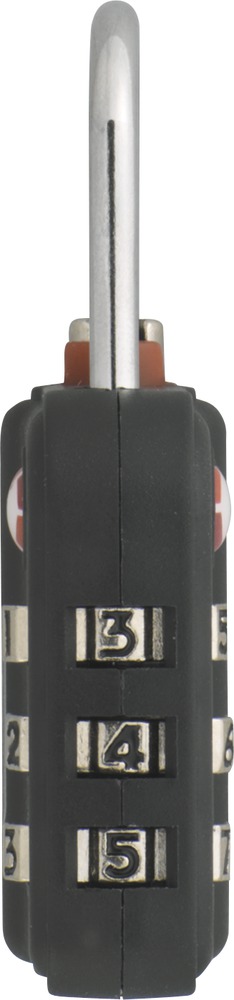

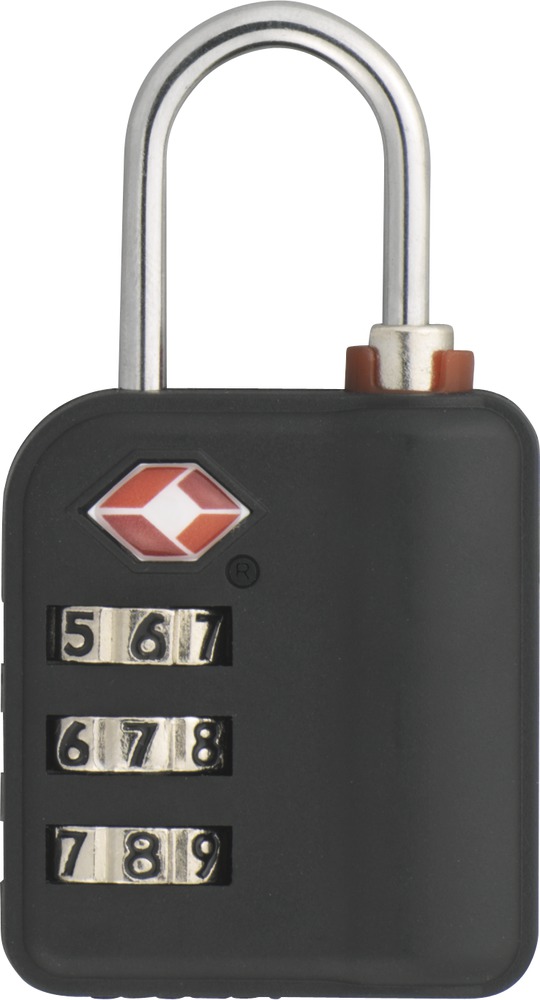

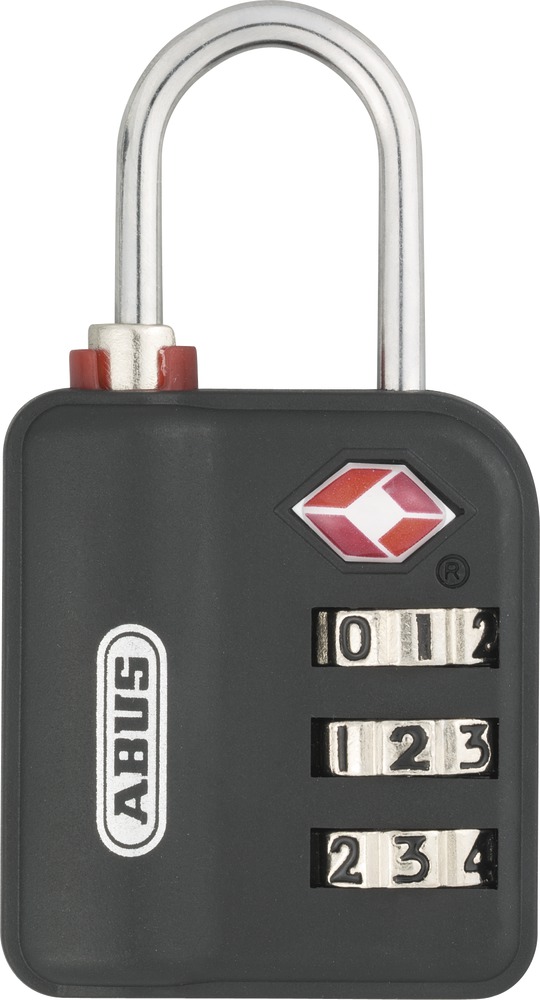

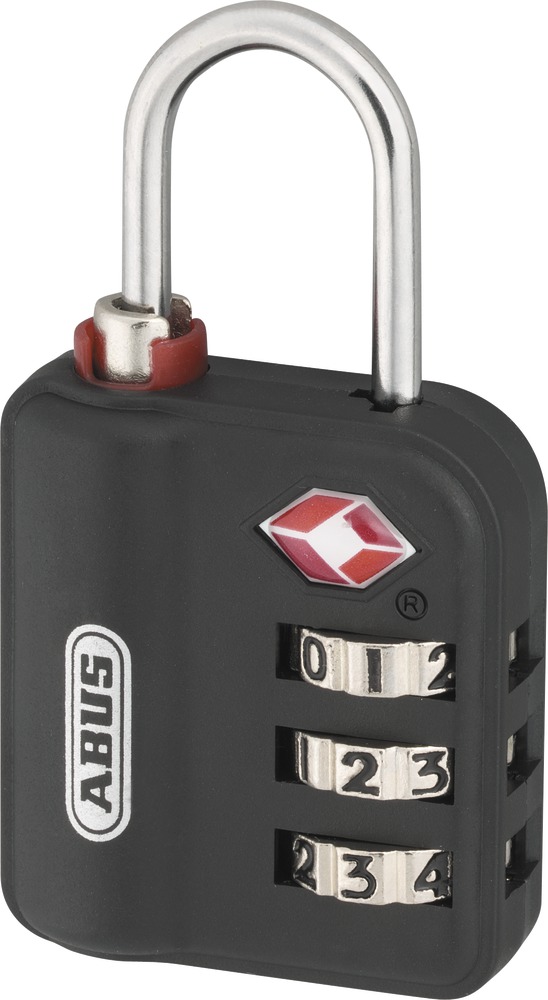

147TSA

TSA-accepted lock for US Entry

Technology:

  • Shackle diameter 3 mm
  • Individually resettable 3-digit code
  • Visible red indicator at shackle: lock was opened by TSA
  • To reset red indicator open lock and turn shackle by 360°

Operation and use:

  • To secure valuables/goods of lower value or at a low risk of theft

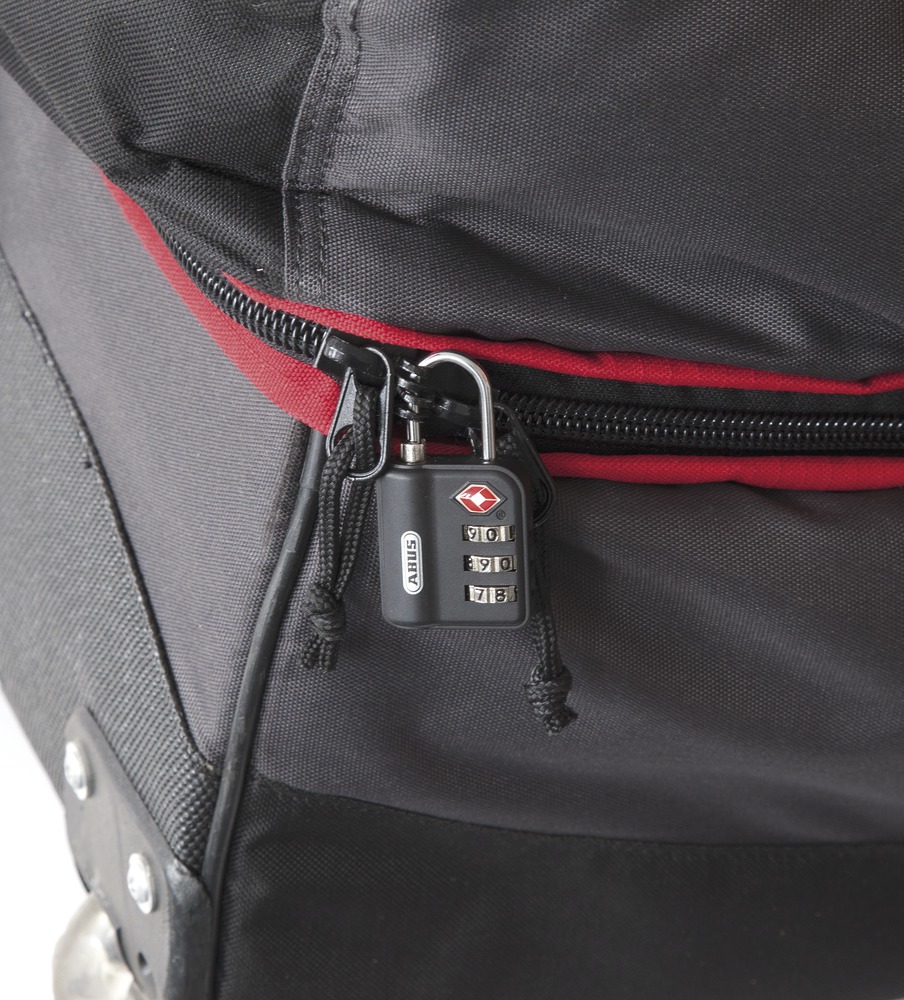

  • Suitable for example for securing luggage
  • Ideal for journeys e.g. into the USA: the luggage can be opened/relocked by the US security authorities without damaging the lock

Variants:

  • Colour: black

Technical data:

Art. no.: 53093
Width a [mm]: 33
Horizontal clearance b [mm]: 13
Vertical clearance c [mm]: 20
Shackle diameter d [mm]: 3
Depth e [mm]: 14
Height f [mm]: 60
Version: TSA-lock
Level: 2

Downloads:

Combination lock

Combination

These compact combination locks are suitable for a range of uses even with different users, thanks to their special locking system. Applications include securing items of luggage, tool boxes or lockers in sports clubs.3-digit or 4-digitAs the padlocks are secured by means of a 3-digit or 4-digit number combination that can be set individually, they are ideal for use in the leisure industry as there is no need to carry a key.The combination ...
