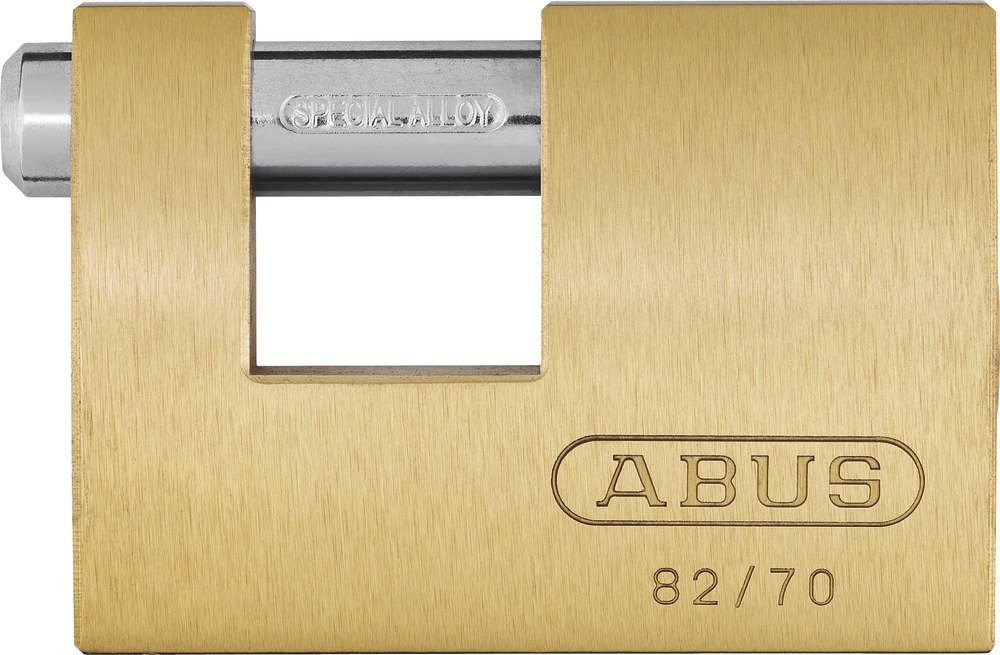

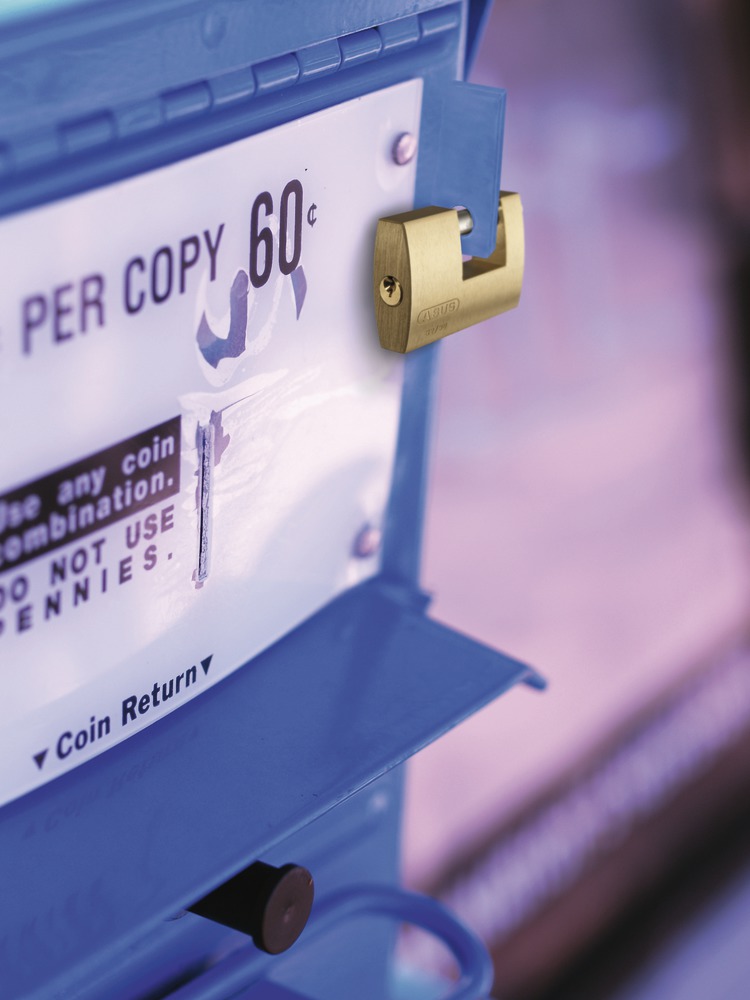

Padlock 82/70 frontal view Padlock 82/70 example of application Technical drawing
Level 6 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security Paracentric keyway: resists professional picking by special key profile Shackle made from hardened steel
|||

Padlock brass Monoblock 82

Monoblock Brass Lock

Technology:

  • Shackle made from hardened special steel
  • Inner components made from rustfree materials
  • Precision pin cylinder
  • A hardened steel pin protects the narrow side of the lock body against sawing
  • Automatic locking: Locking without key by pushing down the shackle
  • incl. two keys

Operation and use:

  • 82/63 + 82/70: To secure valuables/goods of medium value or at an average risk of theft
  • 82/90: To secure valuables/goods of greater value or at a high risk of theft
  • For special applications, e.g automats as well as gates, doors, containers, lorries, etc.
  • Ideally used with ABUS hasps No. 125 and 130

Variants:

  • Sizes: 63, 70, 90 mm

Technical data:

Art. no.: 11491
Width a [mm]: 70.5
Horizontal clearance b [mm]: 22
Vertical clearance c [mm]: 13
Shackle diameter d [mm]: 12
Depth e [mm]: 20
Height f [mm]: 50
Level: 6
Weight [g]: 412

Variants:

Padlock brass Monoblock 82
Art. no. 11491
Width a [mm]: 70.5
Level: 6
Padlock brass 82/63
Art. no. 11490
Width a [mm]: 64
Level: 6
Padlock brass 82/90
Art. no. 11492
Width a [mm]: 90
Level: 7
