Technical drawing
Level 4 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security Shackle locked on both sides Paracentric keyway: resists professional picking by special key profile
|||

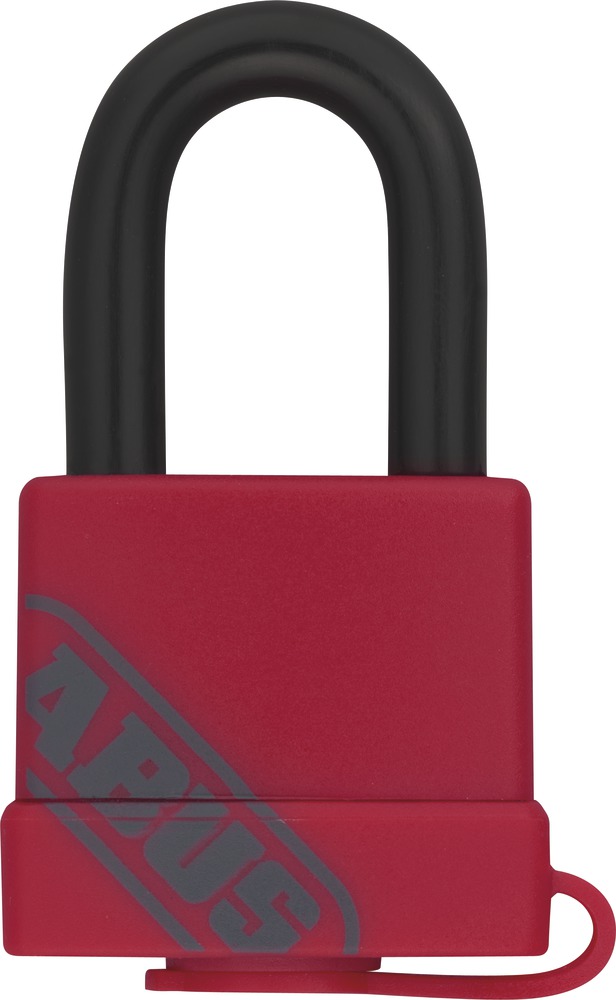

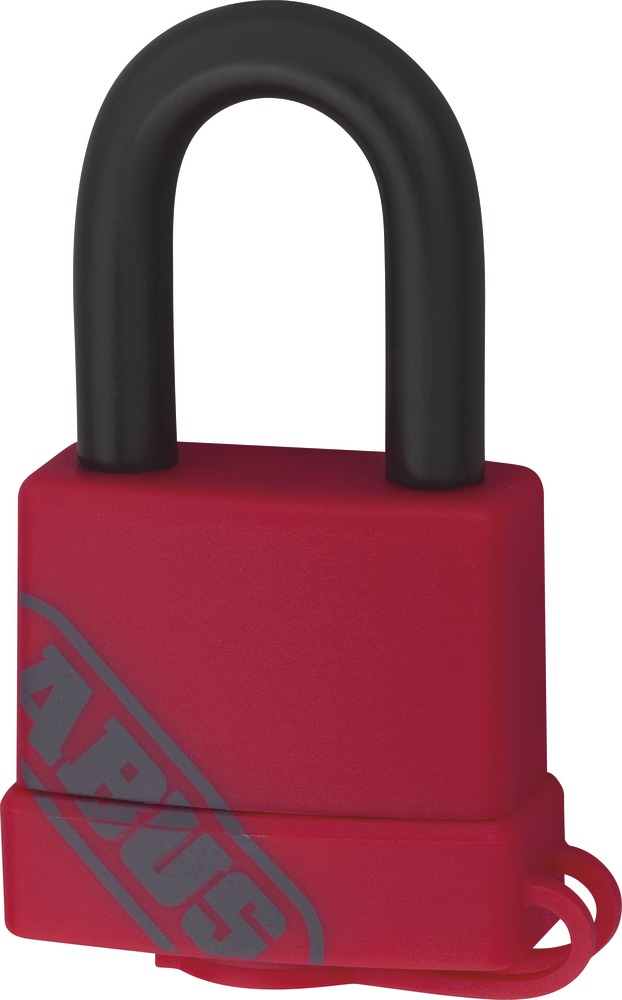

70/35 red

Color

Technology:

  • Lock body made from solid brass
  • Sealed lock body with drainage channels and cover to protect the cylinder against water and dirt
  • Shock absorbing vinyl casing
  • Shackle made from hardened steel with vinyl jacket
  • Inner components made from non-corrosive materials
  • Double bolted
  • Precision pin cylinder
  • Automatic locking: Locking without key by pushing down the shackle
  • Paracentric keyway for increased protection against manipulation
  • incl. two keys

Operation and use:

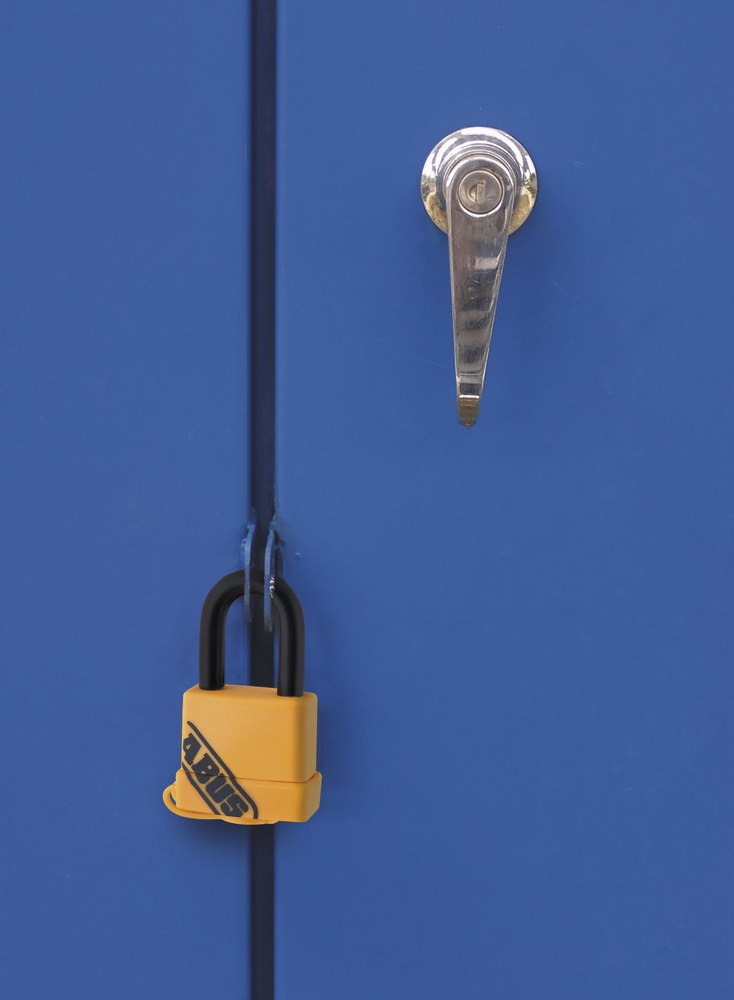

  • To secure valuables/goods of medium value or at an average risk of theftTo secure chains, doors, gates, cupboards, lockers, tool boxes, cellar windows, sheds, etc.

Variants:

  • Colours: black, red, yellow
  • Keyed alike available only in black
  • Size: 35 mm

Technical data:

Art. no.: 53972
Width a [mm]: 34
Horizontal clearance b [mm]: 13.5
Vertical clearance c [mm]: 24.5
Shackle diameter d [mm]: 6.5
Depth e [mm]: 17
Height f [mm]: 64
Version: red
Level: 4

Variants:

70/35 red
Art. no. 53972
Width a [mm]: 34
Level: 4

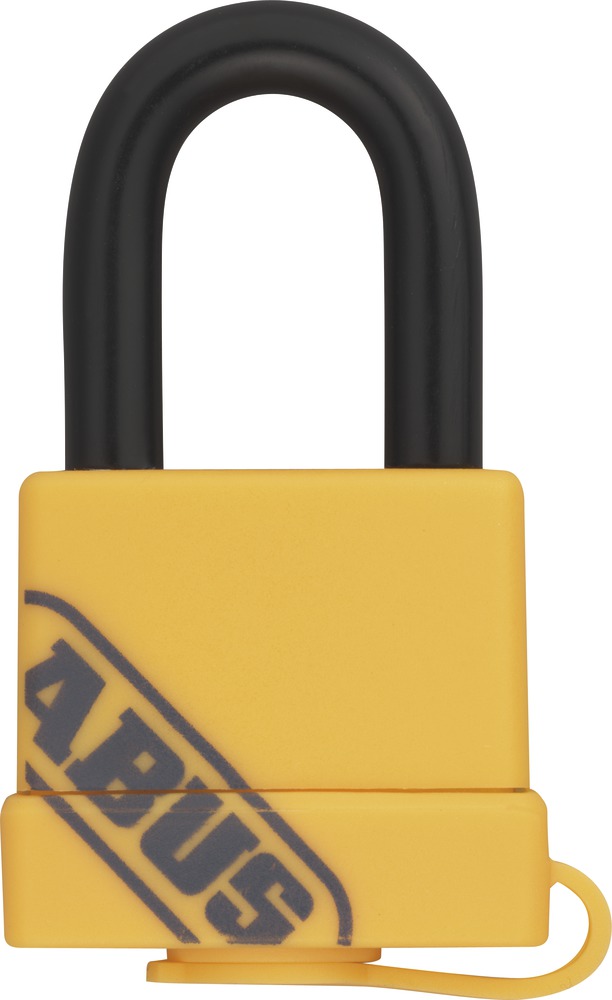

70/35 yellow
Art. no. 53970
Width a [mm]: 34
Level: 4

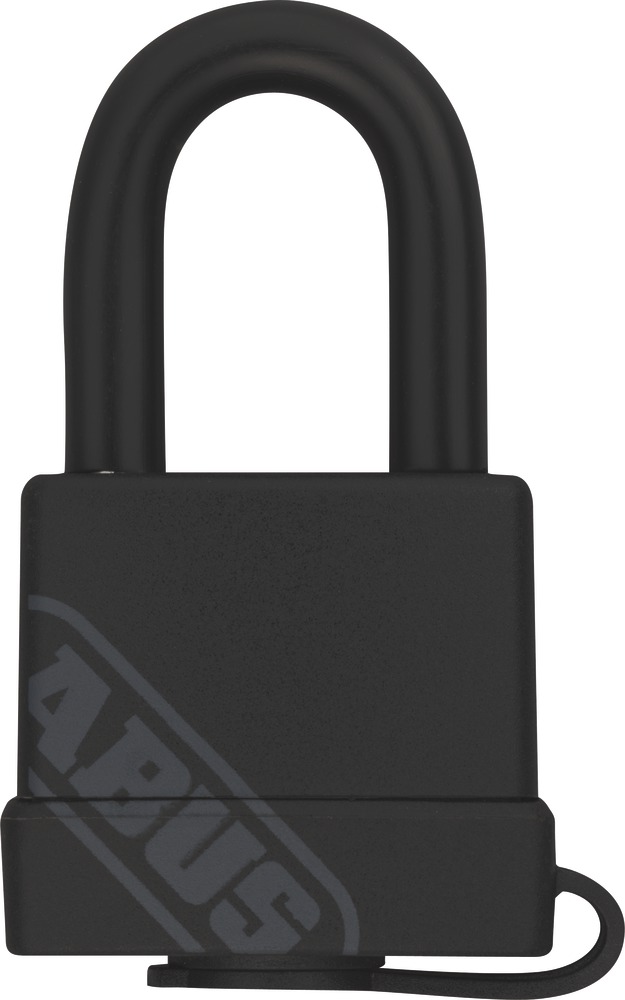

70/35 black
Art. no. 53971
Width a [mm]: 34
Level: 4
70/35 Color SB
Art. no. 53973
Width a [mm]: 34
Level: 4
70/35 Triples Color SB
Art. no. 54848
Width a [mm]: 34
Level: 4

Downloads:

Brass padlock

Brass

Who doesn't like the idea of holding a solid gold bar in his hands? Brass can get you close to this dream as it is said to be the gold for the common people. Brass is also the characteristic material for these padlocks that are in everyday use.International rangeFor decades the ABUS brand has been synonymous with padlocks of a wide variety of designs. A well-established product range that is designed for the needs of international markets ...
